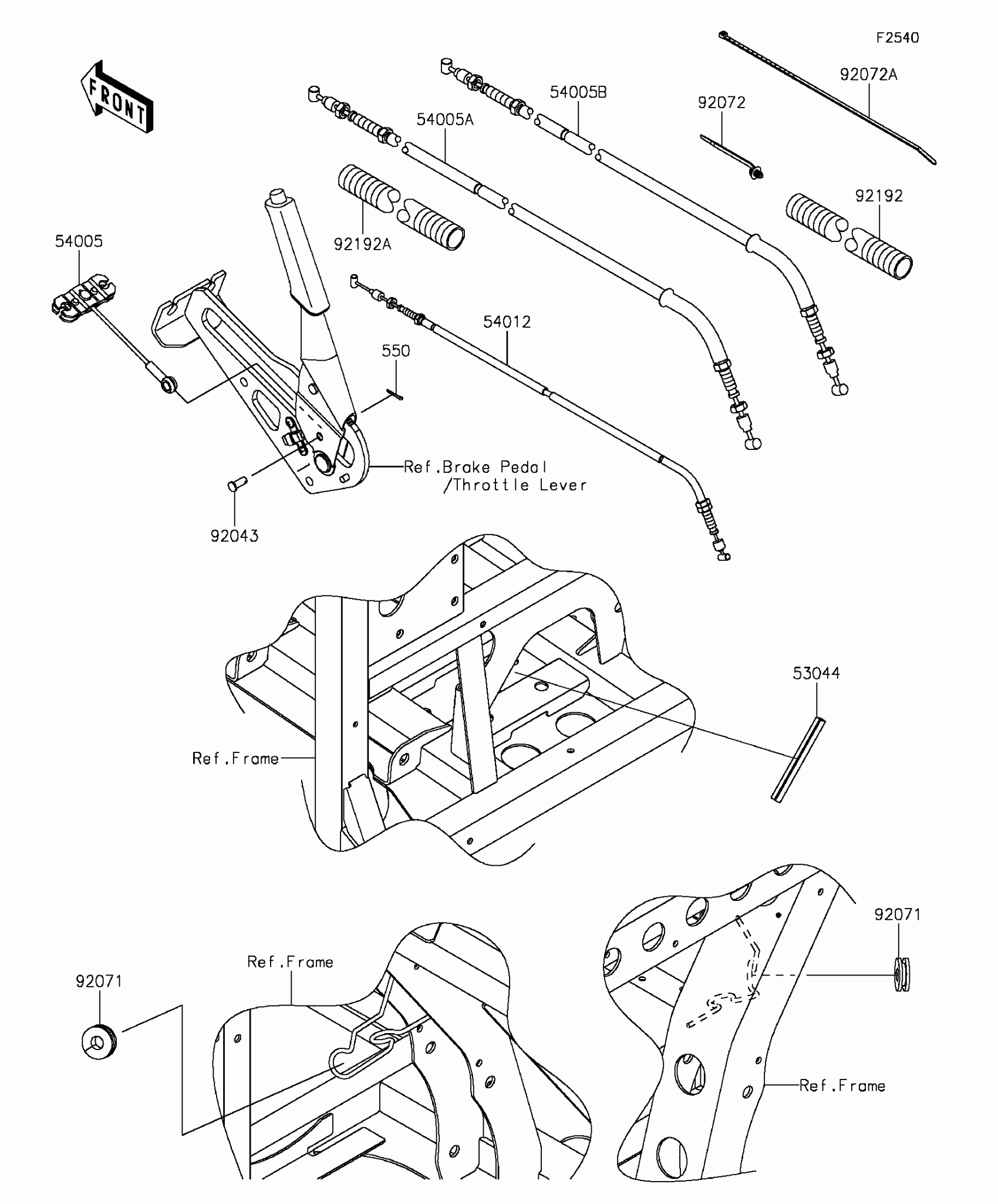

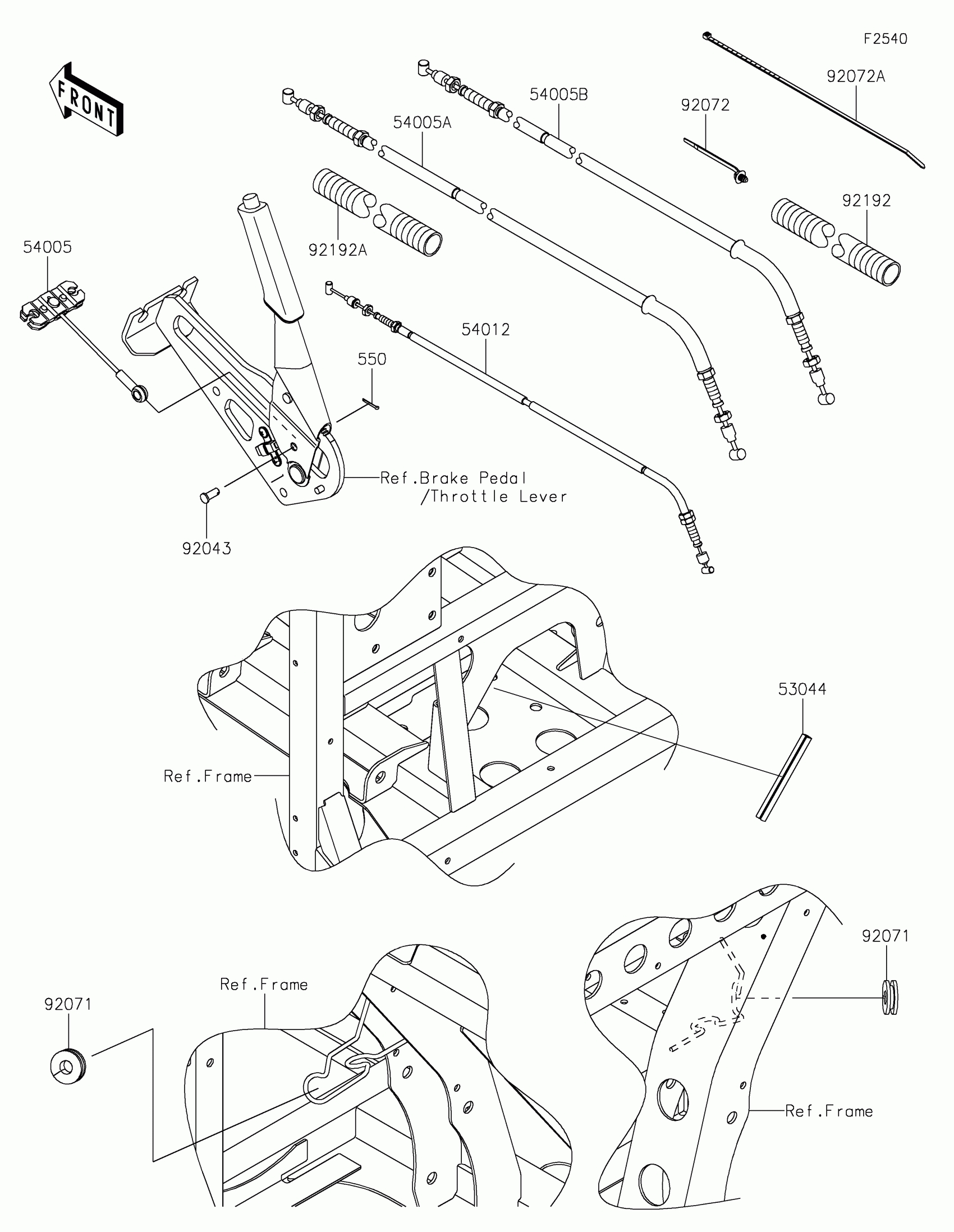

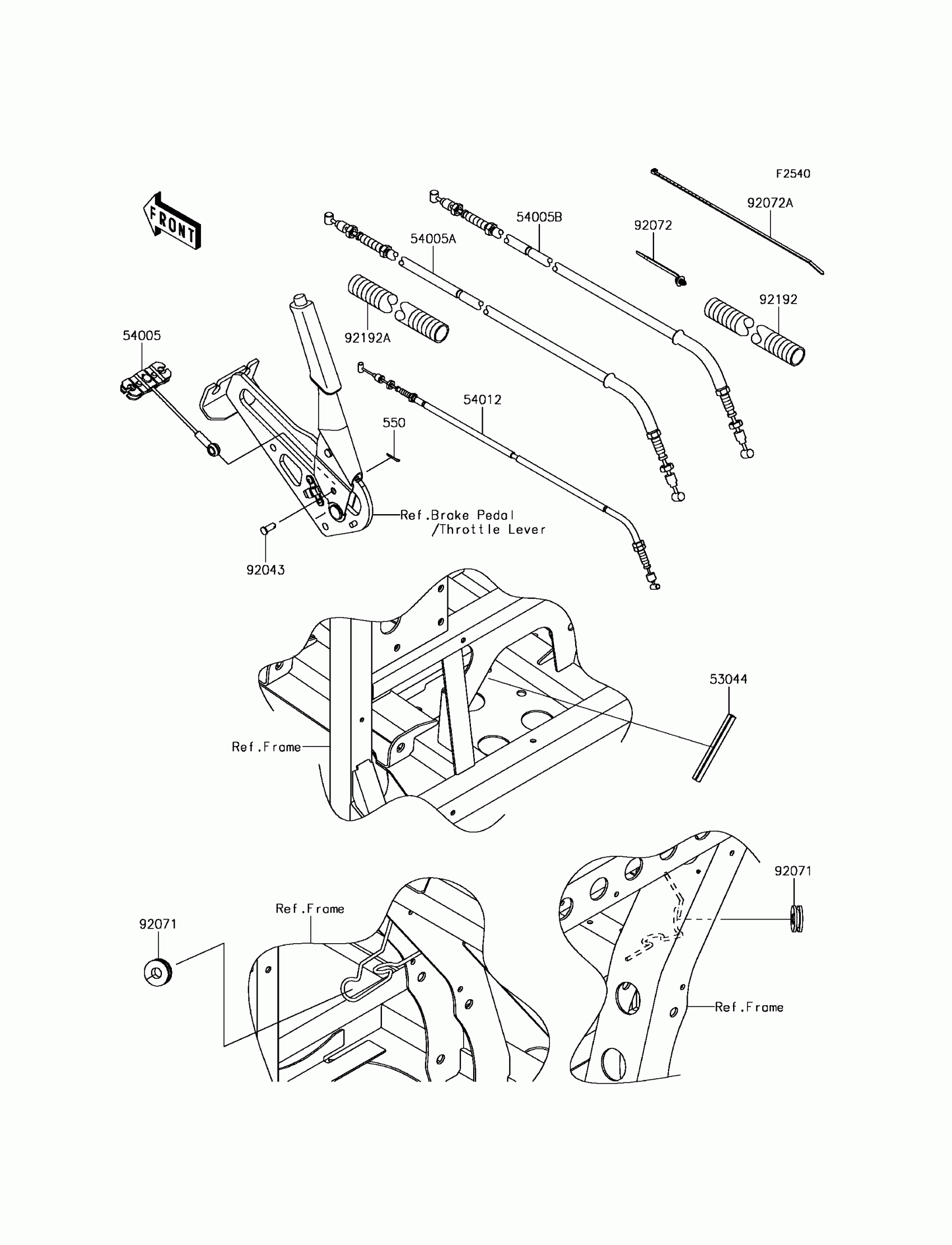

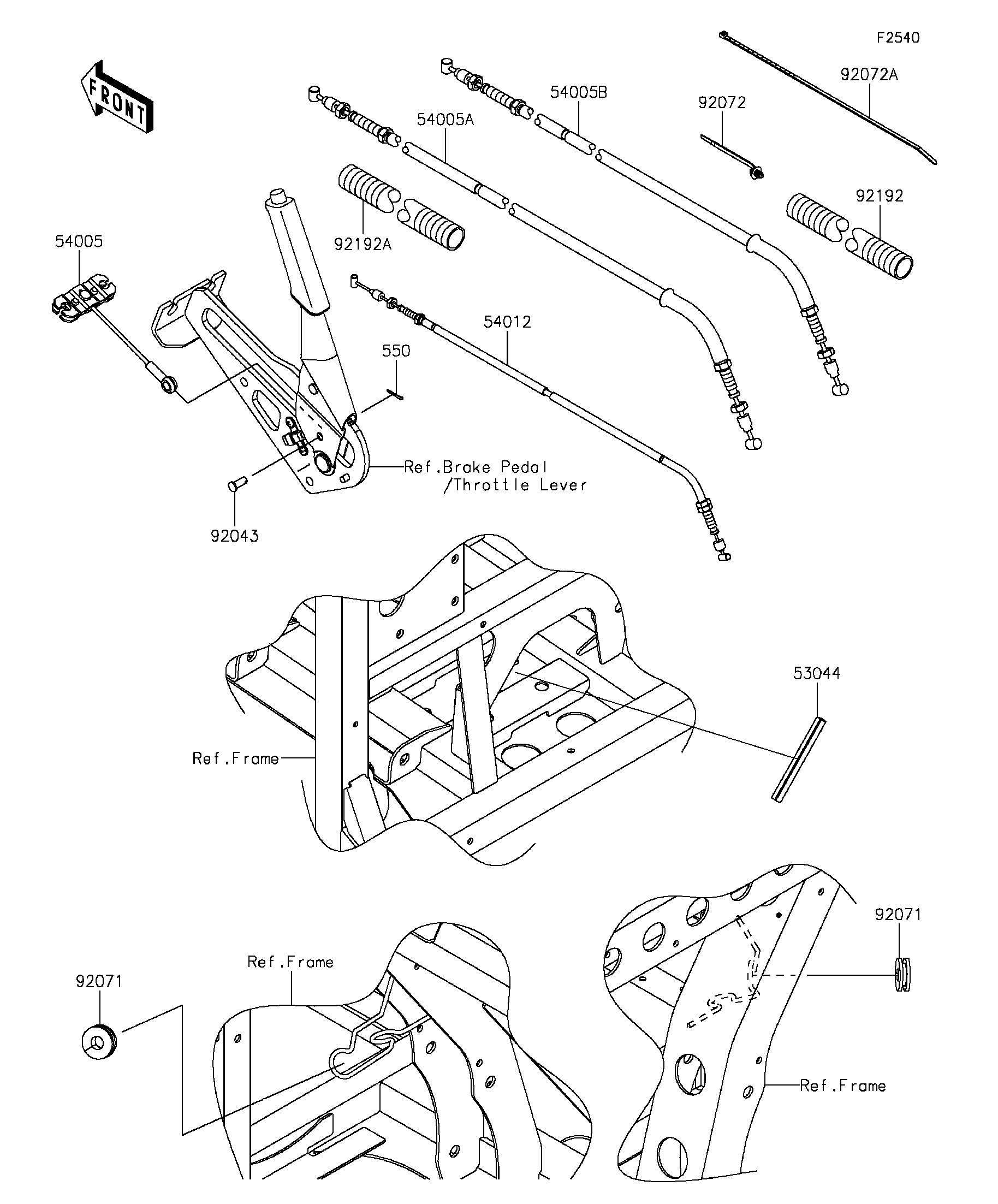

Kawasaki MULE PRO-FX™ EPS Cables Diagram

#

Description

Price

53044

TRIM,L=111

53044-7502

Unavailable

54005

CABLE-BRAKE,PARKING,FR

54005-0035

Unavailable

54005A

CABLE-BRAKE,PARKING,LH

54005-0036

Unavailable

54005B

CABLE-BRAKE,PARKING,RH

54005-0037

Unavailable

54012

CABLE-THROTTLE

54012-0610

Unavailable

550

PIN-COTTER,2.5X18

550AA2518

Unavailable

92043

PIN

92043-1039

Unavailable

92071

GROMMET

92071-0029

Unavailable

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92072A

BAND,L=292.1

92072-3509

Unavailable

92192

TUBE,CONVOLUTED,25.1X30X260

92192-1363

Unavailable

92192A

TUBE,CONVOLUTED,25.1X30X210

92192-1391

Unavailable
