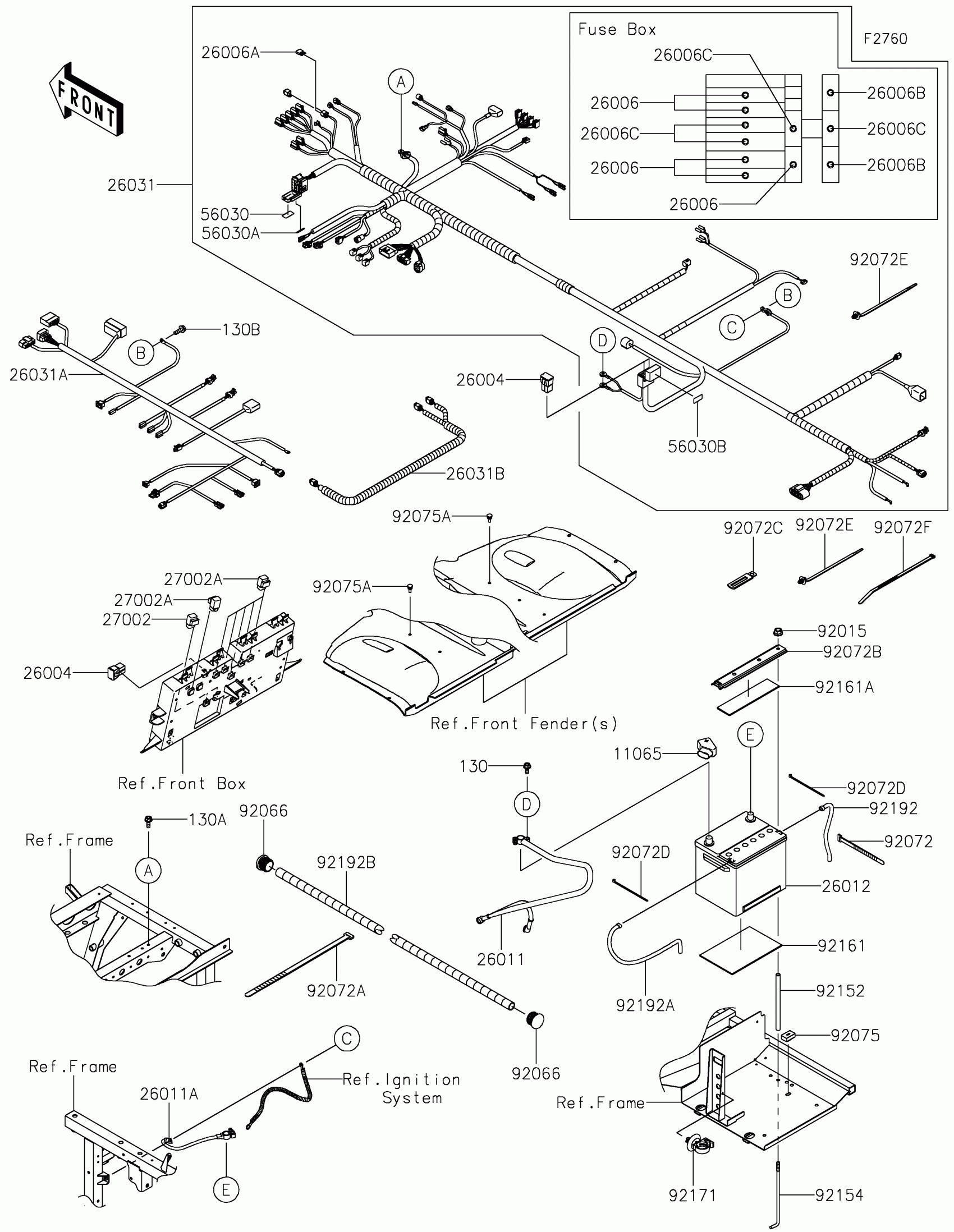

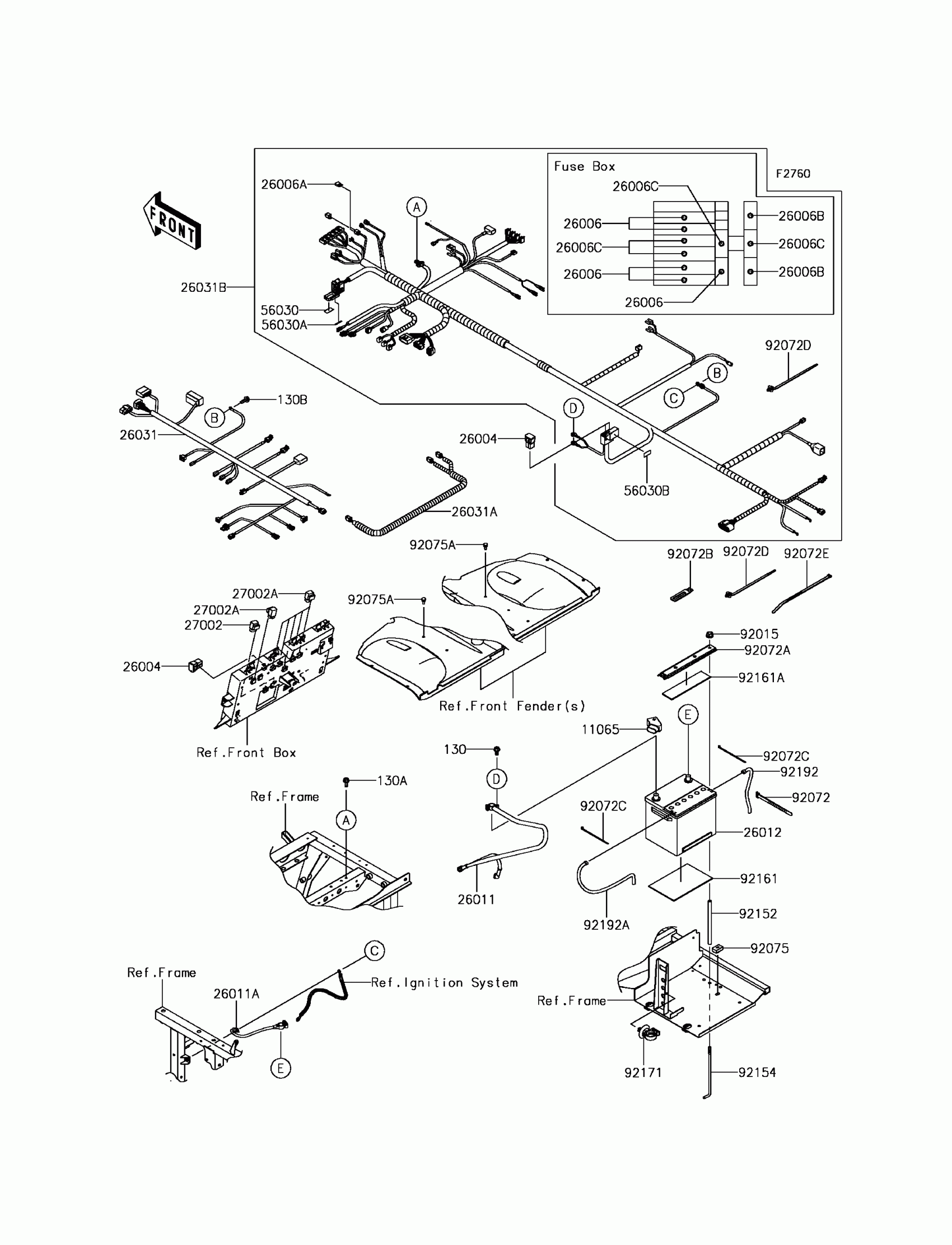

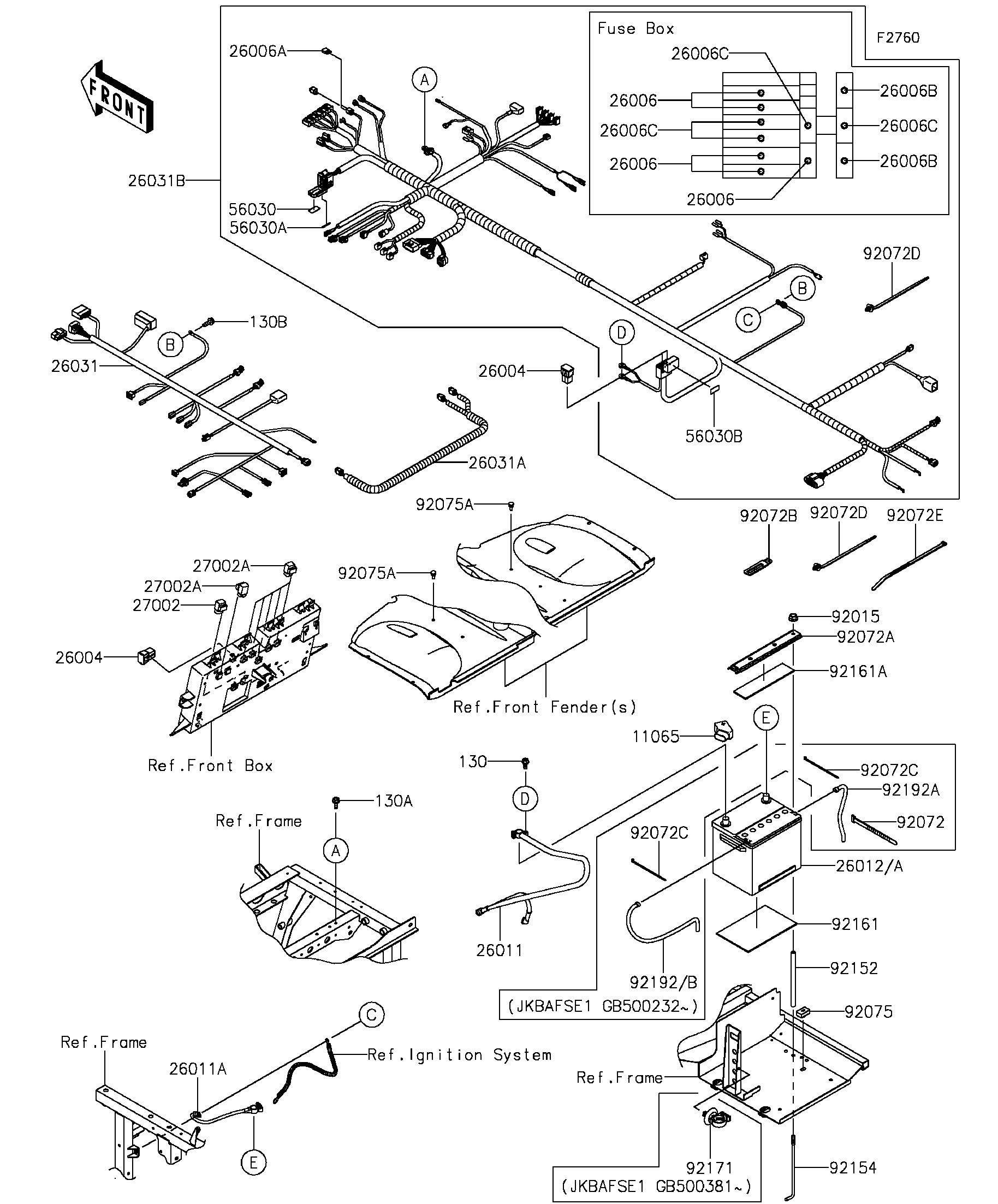

Kawasaki MULE PRO-FX™ Chassis Electrical Equipment Diagram

#

Description
Price

11065

CAP

11065-0850

$4.60

26004

FUSE-ASSY,60A

26004-0024

$4.82

26006

FUSE,MINI BLADE,10A,RED

26006-0009

Unavailable

26006A

FUSE,MINI BLADE,2A,GRAY

26006-0052

$6.57

26006B

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26006C

FUSE,MINI BLADE,20A,YELLOW

26006-3704

$5.24

26011

WIRE-LEAD,BATTERY(+)

26011-0851

$110.95

26011A

WIRE-LEAD,BATTERY(-)

26011-0912

$44.80

26012

BATTERY,12V 32AH

26012-0619

$163.78

26031

HARNESS,MAIN

26031-2107

$731.70

26031A

HARNESS

26031-2111

$400.16

26031B

HARNESS,SUB

26031-2226

$84.03

27002

RELAY-ASSY

27002-0022

$46.52

27002A

RELAY-ASSY

27002-1062

$45.39

56030

LABEL,FUSE BOX1

56030-0850

$2.94

56030A

LABEL,FUSE BOX2

56030-0854

$2.94

56030B

LABEL,FUSE CASE

56030-0891

$2.94

92015

NUT,FLANGED,8MM

92015-1406

$4.45

92066

PLUG

92066-0908

$0.98

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=218

92072-032

$5.00

92072B

BAND

92072-0767

$9.90

92072C

BAND

92072-0770

$2.75

92072D

BAND,92X2.4

92072-0791

$0.42

92072E

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92075

DAMPER

92075-099

$5.52

92075A

DAMPER,6X10X15

92075-1808

$1.39

92152

COLLAR,9.4X12.7X190.8

92152-1852

$8.18

92154

BOLT,BATTERY

92154-1650

$11.00

92161

DAMPER

92161-0578

$4.25

92161A

DAMPER

92161-1753

$7.61

92171

CLAMP

92171-0453

$3.54

92192

TUBE,BREATHER,7X10X240

92192-1646

$3.90

92192A

TUBE,BREATHER,7X10X450

92192-1694

$8.13

92192B

TUBE,CONVOLUTED

92192-1814

$29.07

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,6X16

130BA0616

$1.20

130B

BOLT-FLANGED,6X18

130BA0618

$1.54
