2025 Kawasaki Mule PRO-FX™ 820 EPS Transmission Diagram

← All diagrams

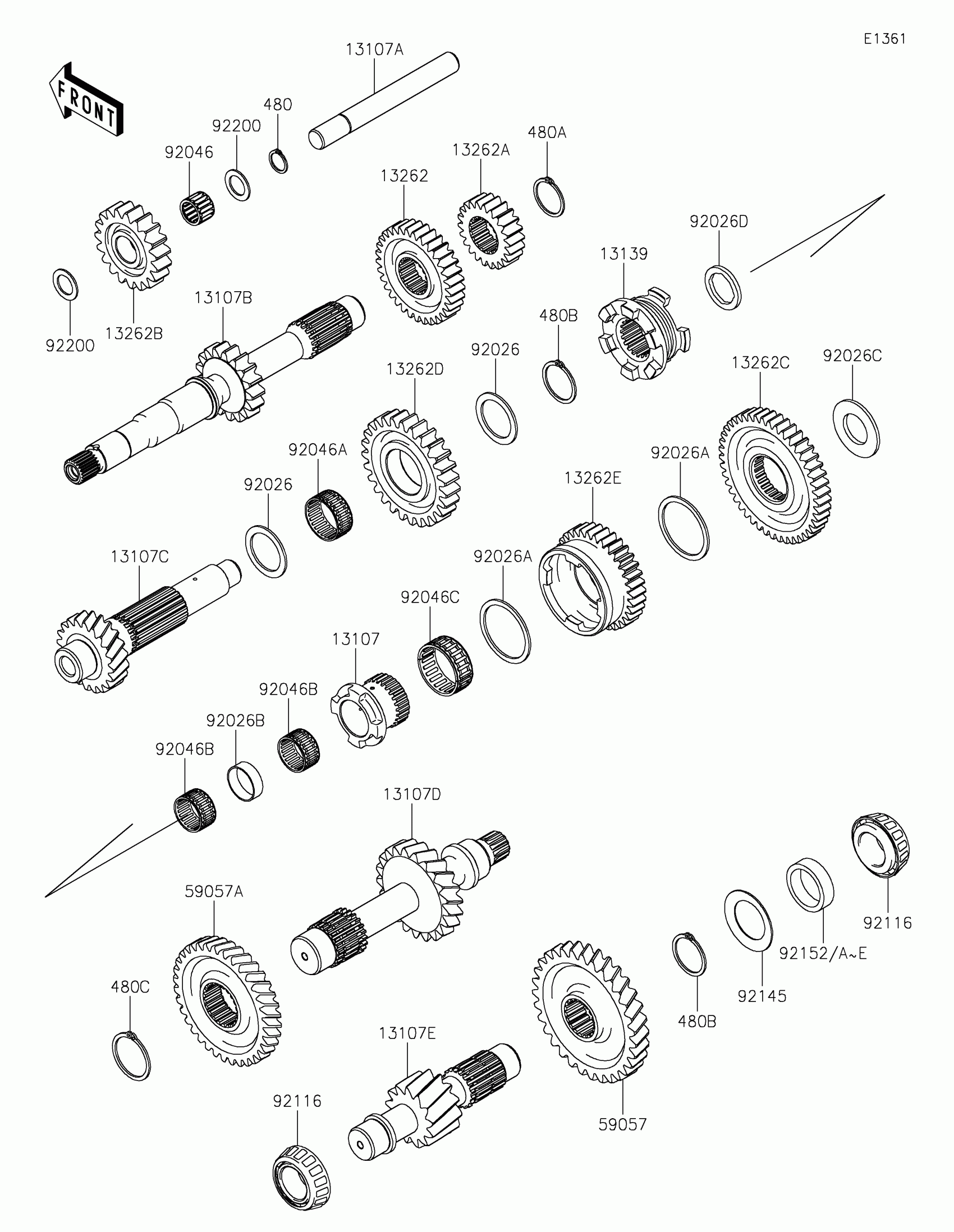

Find the part on the Transmission diagram for your 2025 Kawasaki Mule PRO-FX™ 820 EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Mule PRO-FX™ 820 EPS Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT

13107-0779

1
Out of stock

13107A

SHAFT,IDLE REV

13107-0780

1
Out of stock

13107B

SHAFT,INPUT,17T

13107-0782

1
Out of stock

13107C

SHAFT,COUNTER,20T

13107-0783

1
Out of stock

13107D

SHAFT,3RD,21T

13107-0784

1
Out of stock

13107E

SHAFT,4TH,13T

13107-0785

1
Out of stock

13139

SHIFTER

13139-0022

1
Out of stock

13262

GEAR,INPUT HI,33T

13262-1085

1

$94.14

In stock

13262A

GEAR,INPUT LOW,22T

13262-1086

1

$62.47

In stock

13262B

GEAR,IDLE REV,19T

13262-1087

1

$72.99

In stock

13262C

1

$106.76

In stock

13262D

1

$110.18

In stock

13262E

GEAR,COUNTER HI,34T

13262-1090

1

$148.53

In stock

59057

GEAR-HELICAL,31T

59057-0013

1
Out of stock

59057A

GEAR-HELICAL,3RD,35T

59057-0015

1
Out of stock

92026

SPACER,35.2X47X2

92026-0765

1
Out of stock

92026A

SPACER,49.2X58X2

92026-0766

1
Out of stock

92026B

SPACER,29.4X31.8X10

92026-0767

1
Out of stock

92026C

SPACER

92026-0768

1
Out of stock

92026D

SPACER,28.2X39X3.6

92026-0795

1
Out of stock

92046

BEARING-NEEDLE,FMJ-182417

92046-0040

1
Out of stock

92046A

BEARING-NEEDLE,35X40X17

92046-0611

1
Out of stock

92046B

BEARING-NEEDLE,KT283317C3

92046-0621

1
Out of stock

92046C

BEARING-NEEDLE,HIGH GEAR

92046-1276

1
Out of stock

92116

BEARING-ROLLER

92116-0014

1
Out of stock

92145

SPRING

92145-1575

1
Out of stock

92152

COLLAR,L=12.1

92152-1815

—
Out of stock

92152A

COLLAR,L=12.3

92152-1816

—
Out of stock

92152B

COLLAR,L=12.5

92152-1817

—
Out of stock

92152C

COLLAR,L=12.7

92152-1818

—
Out of stock

92152D

COLLAR,L=12.9

92152-1819

—
Out of stock

92152E

COLLAR,L=13.1

92152-1820

—
Out of stock

92200

WASHER,18.2X28X1.5

92200-0716

1
Out of stock

480

CIRCLIP-TYPE-C,18MM

480J1800

1
Out of stock

480A

CIRCLIP-TYPE-C,32MM

480J3200

1
Out of stock

480B

CIRCLIP

480J3500

1
Out of stock

480C

CIRCLIP

480J4000

1
Out of stock
