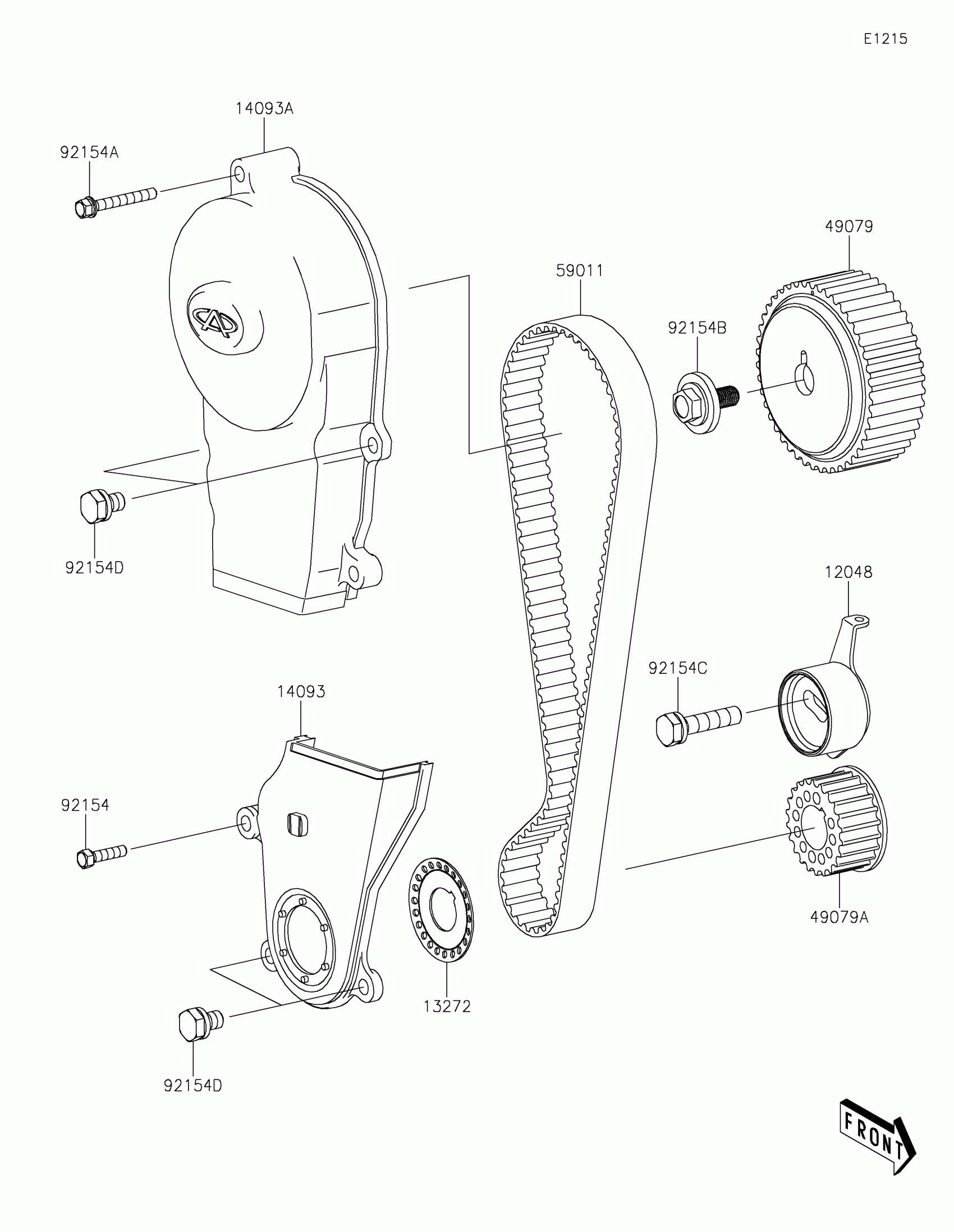

Kawasaki MULE PRO-FX™ 820 EPS Timing Belt Diagram

Description

Price

12048

TENSIONER-ASSY

12048-0093

$22.00

13272

PLATE,TIMING BELT

13272-1872

$1.81

14093

COVER,TIMING BELT,LWR

14093-0200

$7.58

14093A

COVER,TIMING BELT,UPP

14093-0201

$13.10

49079

PULLEY-BELT,CAMSHAFT

49079-0023

$223.83

49079A

PULLEY-BELT,CRANKSHAFT

49079-0024

$96.70

59011

BELT,TIMING

59011-0042

$50.67

92154

BOLT,6X25

92154-1583

$0.95

92154A

BOLT,6X50

92154-1591

$1.63

92154B

BOLT,FLANGED

92154-1614

$2.67

92154C

BOLT,10X45

92154-1615

$2.34

92154D

BOLT,6X16

92154-1617

$0.95
