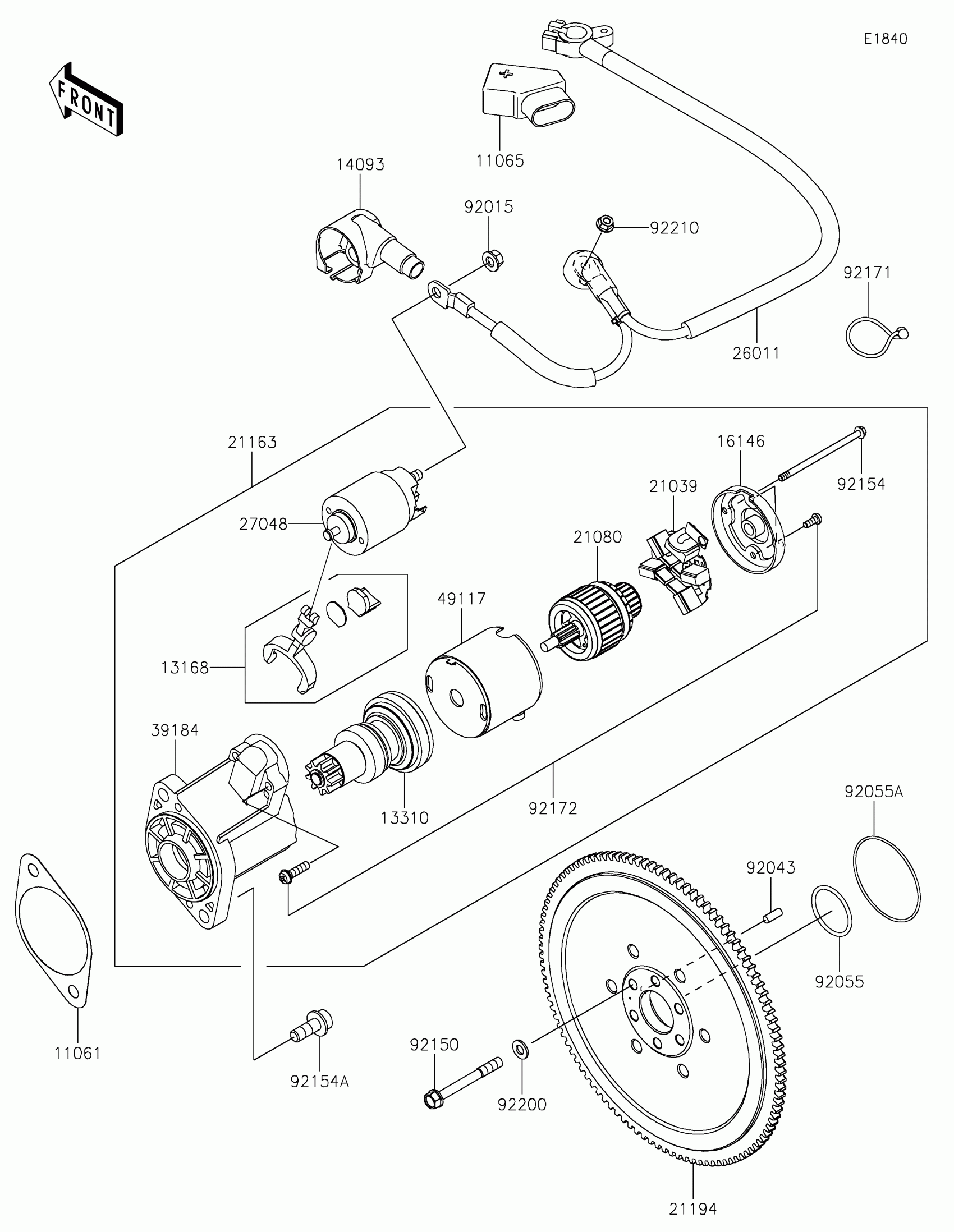

Kawasaki MULE PRO-FX™ 1000 HD EDITION Starter Motor Diagram

Description

Price

11061

GASKET,STARTER

11061-1463

$10.36

11065

CAP

11065-0850

$4.60

13168

LEVER

13168-0935

$39.56

13310

SHAFT-ASSY

13310-0577

$457.66

14093

COVER,STARTER LEAD WIRE

14093-1523

$18.35

16146

COVER-ASSY

16146-0733

$74.66

21039

BRUSH

21039-0015

$93.16

21080

ARMATURE

21080-0015

$482.57

21163

STARTER-ELECTRIC

21163-0805

$1,124.23

21194

FLYWHEEL-COMP

21194-0725

$400.55

26011

WIRE-LEAD,BATTERY-GENERATOR

26011-2461

$165.56

27048

SWITCH-ASSY

27048-0059

$91.46

39184

BRACKET-ASSY

39184-0747

$123.73

49117

YOKE

49117-0610

$256.23

92015

NUT,8MM

92015-1402

$4.69

92043

PIN,6X16

92043-1690

$5.00

92055

RING-O,36MM

92055-1005

$6.16

92055A

RING-O,70.2X74.0X1.90

92055-1672

$4.45

92150

BOLT,8X70

92150-1483

$7.45

92154

BOLT,STARTER

92154-7040

$14.97

92154A

BOLT,SOCKET,10X25

92154-7070

$14.97

92171

CLAMP

92171-1185

$2.46

92172

SCREW

92172-0770

$1.43

92200

WASHER,8.2X16X1.6

92200-0047

$2.90

92210

NUT,6MM

92210-0188

$2.15
