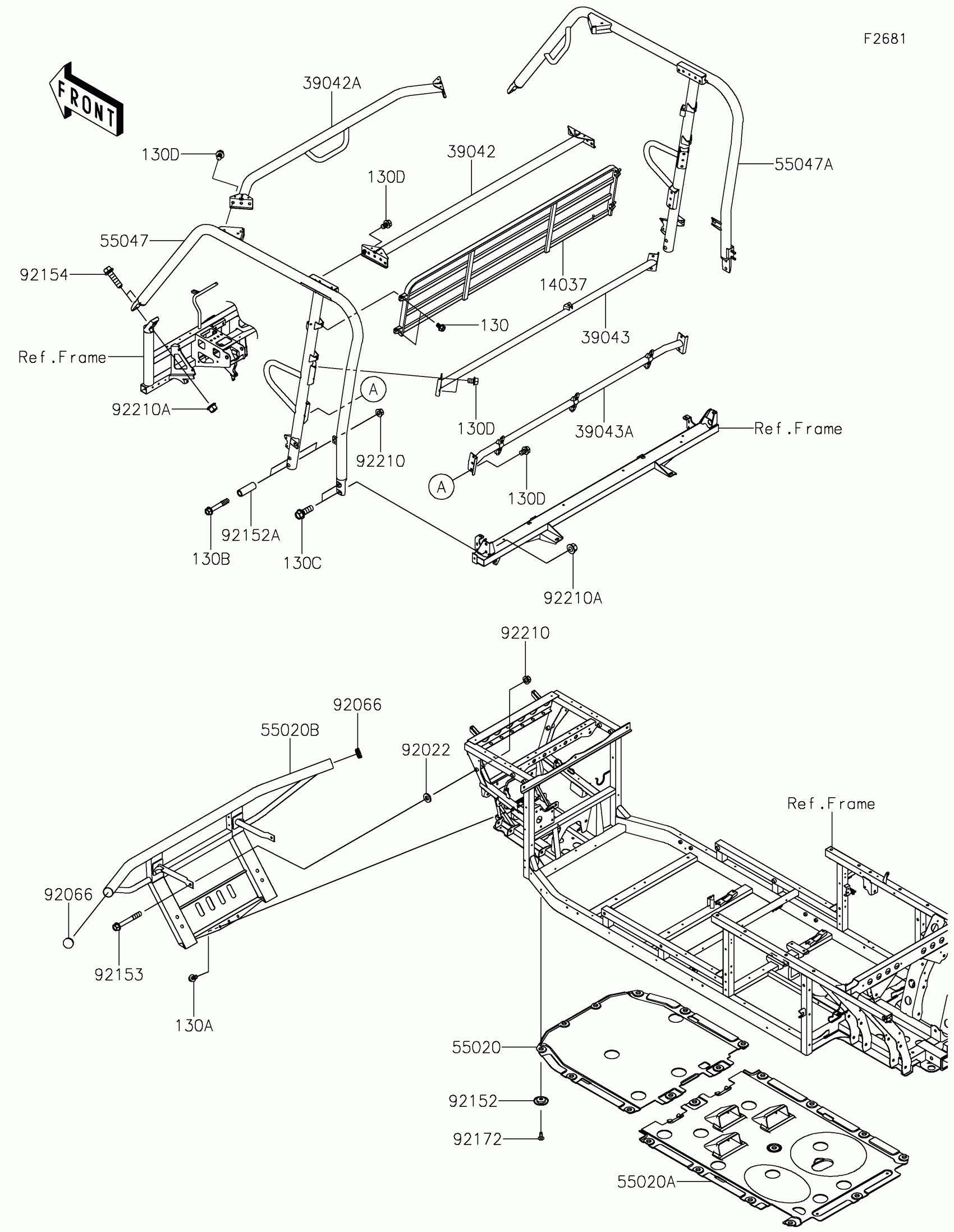

Kawasaki MULE PRO-FX™ 1000 HD EDITION Guards/Cab Frame Diagram

Description

Price

14037

SCREEN,T.BLACK

14037-0758-388

$193.55

39042

CROSSMEMBER,RR,T.BLACK

39042-0015-388

$111.20

39042A

CROSSMEMBER,FR,T.BLACK

39042-0016-388

$114.69

39043

CROSSMEMBER-COMP,B-P.,UPP,BLK

39043-0016-388

$149.39

39043A

CROSSMEMBER-COMP,B-P.,LWR,BLK

39043-0017-388

$111.20

55020

GUARD,SKID PLATE

55020-0934

$80.21

55020A

GUARD,SKID PLATE

55020-2381

$115.97

55020B

GUARD,FR,T.BLACK

55020-2424-388

$87.18

55047

BAR-COMP,B-PILLAR,LH,T.BLACK

55047-0363-388

$332.35

55047A

BAR-COMP,B-PILLAR,RH,T.BLACK

55047-0416-388

$150.72

92022

WASHER,10X22X3

92022-1365

$5.52

92066

PLUG

92066-0769

$2.94

92152

COLLAR

92152-0784

$2.12

92152A

COLLAR,10.5X16X47

92152-1800

$6.24

92153

BOLT,FLANGED,10X75

92153-1384

$7.75

92154

BOLT,FLANGED,12X45

92154-1420

$3.56

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

92210A

NUT,12MM

92210-0603

$8.98

130

BOLT-FLANGED,8X12

130BA0812

$0.95

130A

BOLT-FLANGED,8X16

130BA0816

$1.12

130B

BOLT-FLANGED,10X60

130BA1060

$3.63

130C

BOLT-FLANGED,12X35

130BA1235

$3.63

130D

BOLT-FLANGED,10X14

130CA1014

$3.35
