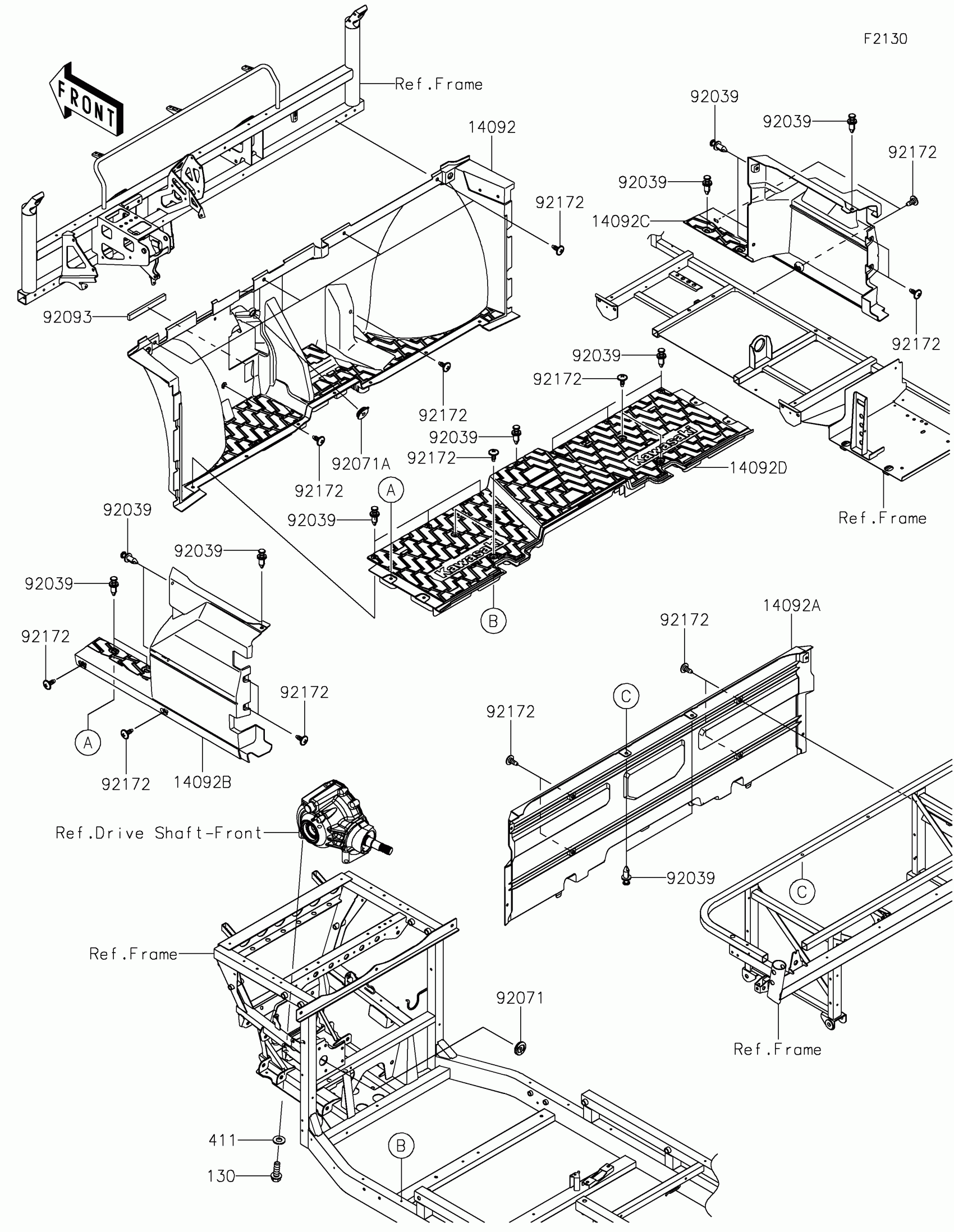

Kawasaki MULE PRO-FX 1000 HD Edition Frame Fittings(Front)(LRFNN-LSSNL) Diagram

Description

Price

14092

COVER,FR FLOOR

14092-1184

$240.56

14092A

COVER,FR SEAT

14092-1185

$113.14

14092B

COVER,SIDE,LH,FR

14092-1188

$87.05

14092C

COVER,SIDE,RH,FR

14092-1189

$87.05

14092D

COVER,FLOOR,BOTTOM

14092-1196

$229.87

92039

RIVET

92039-0865

$0.77

92071

GROMMET,9X45X9

92071-0728

$1.50

92071A

GROMMET,8X22X8

92071-0753

$5.45

92093

SEAL,10X20X165

92093-0617

$3.91

92172

SCREW,6X16

92172-0711

$3.02

130

BOLT-FLANGED,12X35

130CA1235

$3.63

411

WASHER-PLAIN,12MM

411AA1200

$0.96
