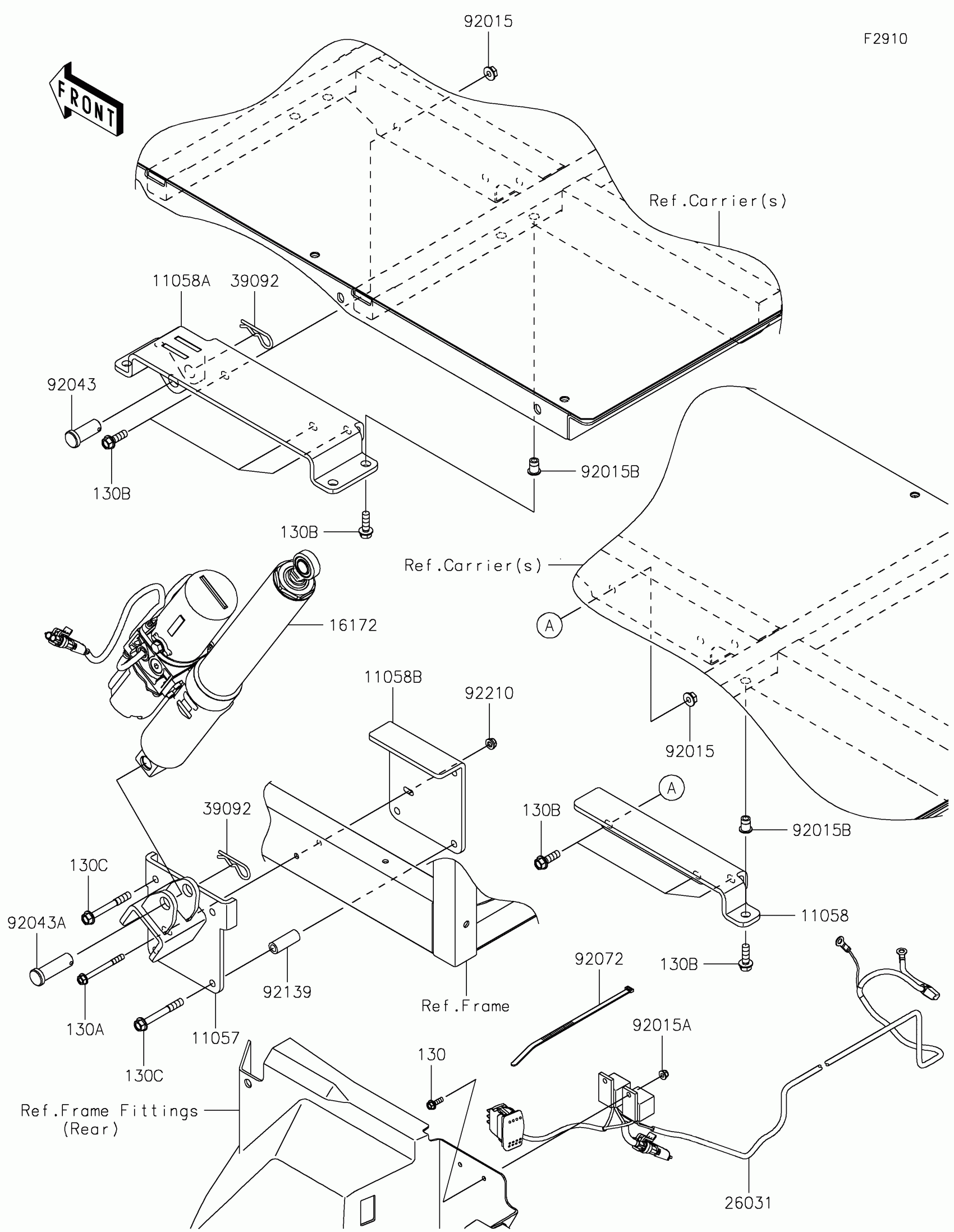

Kawasaki MULE PRO-FX™ 1000 HD EDITION Cargo Bed Lift Diagram

Description

Price

11057

BRACKET,LWR,OUTER

11057-7875

$126.38

11058

BRACKET,UPP,RH

11058-0519

$77.98

11058A

BRACKET,UPP,LH

11058-0520

$169.22

11058B

BRACKET,LWR,INNER

11058-1135

$67.79

16172

ACTUATOR

16172-0048

$950.48

26031

HARNESS,BED LIFT

26031-4089

$288.87

39092

PIN-HAIR

39092-0002

$4.63

92015

NUT,LOCK,FLANGED,8MM

92015-1397

$4.31

92015A

NUT,LOCK,FLANGED,5MM

92015-1752

$4.31

92015B

NUT,POP,8MM,L=16.5

92015-1793

$5.00

92043

92043-0846

$8.73

92043A

92043-0847

$9.81

92072

BAND,L=292.1

92072-3509

Unavailable

92139

BUSHING

92139-0840

$15.16

92210

NUT,LOCK,FLANGED,6MM

92210-0303

$1.34

130

BOLT-FLANGED,5X16

130BA0516

$0.86

130A

BOLT-FLANGED,6X65

130CA0665

$1.77

130B

BOLT-FLANGED,8X25

130CA0825

$1.46

130C

BOLT-FLANGED,8X65

130CA0865

$2.32
