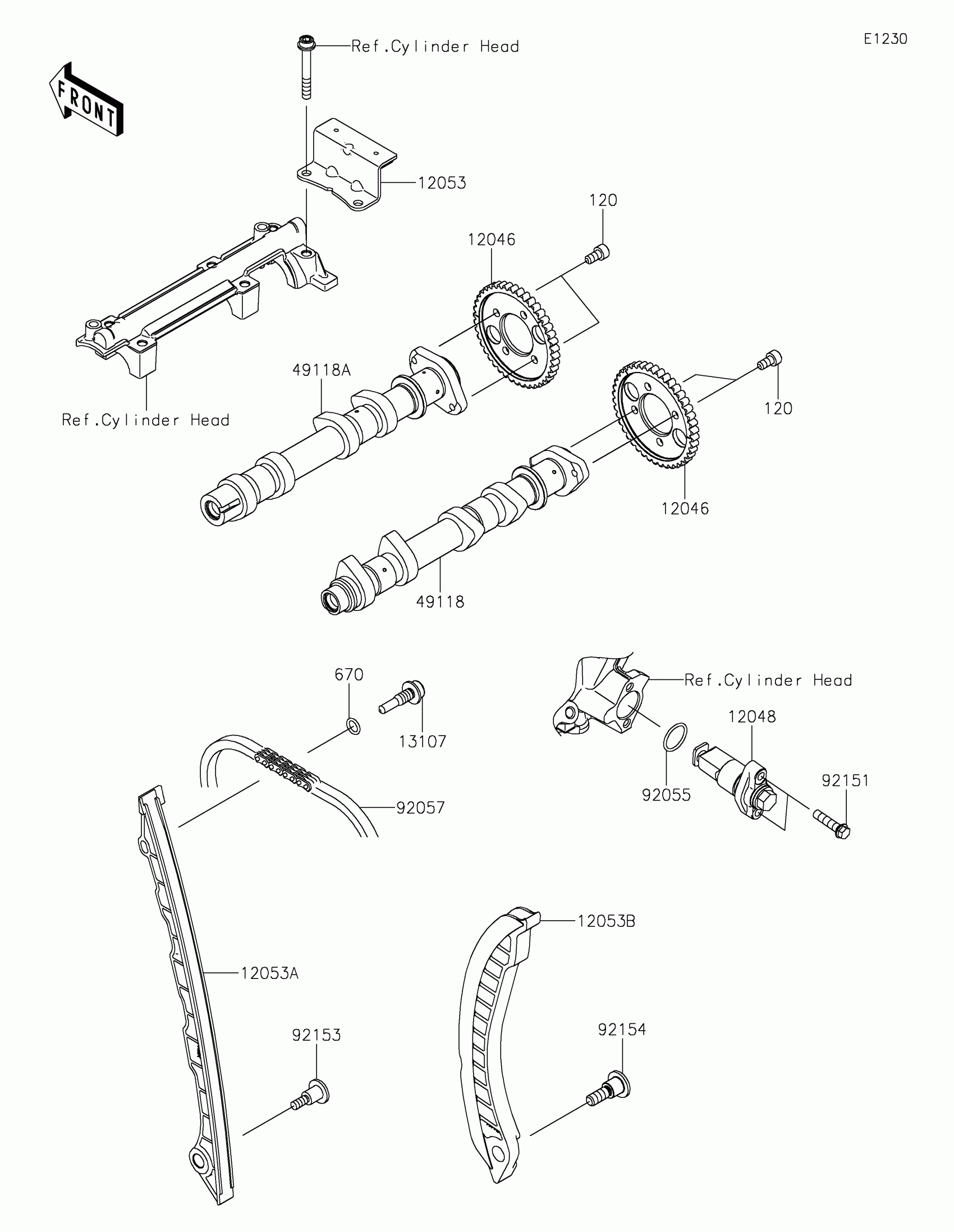

Kawasaki MULE PRO-FX™ 1000 HD EDITION Camshaft(s)/Tensioner Diagram

Description

Price

12046

SPROCKET,CAM,42T

12046-0618

$79.71

12048

TENSIONER-ASSY

12048-0102

$95.43

12053

GUIDE-CHAIN,UPP

12053-0278

$42.48

12053A

GUIDE-CHAIN,FR

12053-0279

$22.35

12053B

GUIDE-CHAIN,RR

12053-0280

$41.04

13107

SHAFT,CHAIN GUIDE

13107-0157

$10.65

49118

CAMSHAFT-COMP,IN

49118-1285

$375.49

49118A

CAMSHAFT-COMP,EX

49118-1286

$375.49

92055

RING-O,18.8X1.9

92055-086

$4.31

92057

CHAIN,98XRH2015-148M

92057-0769

$111.35

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$2.80

92153

BOLT,SOCKET,6X24.5

92153-1200

$11.59

92154

BOLT,8X29

92154-3930

$24.70

120

BOLT-SOCKET,6X12

120CA0612

$1.71

670

O RING,9MM

670D1509

$4.69
