Water Pump

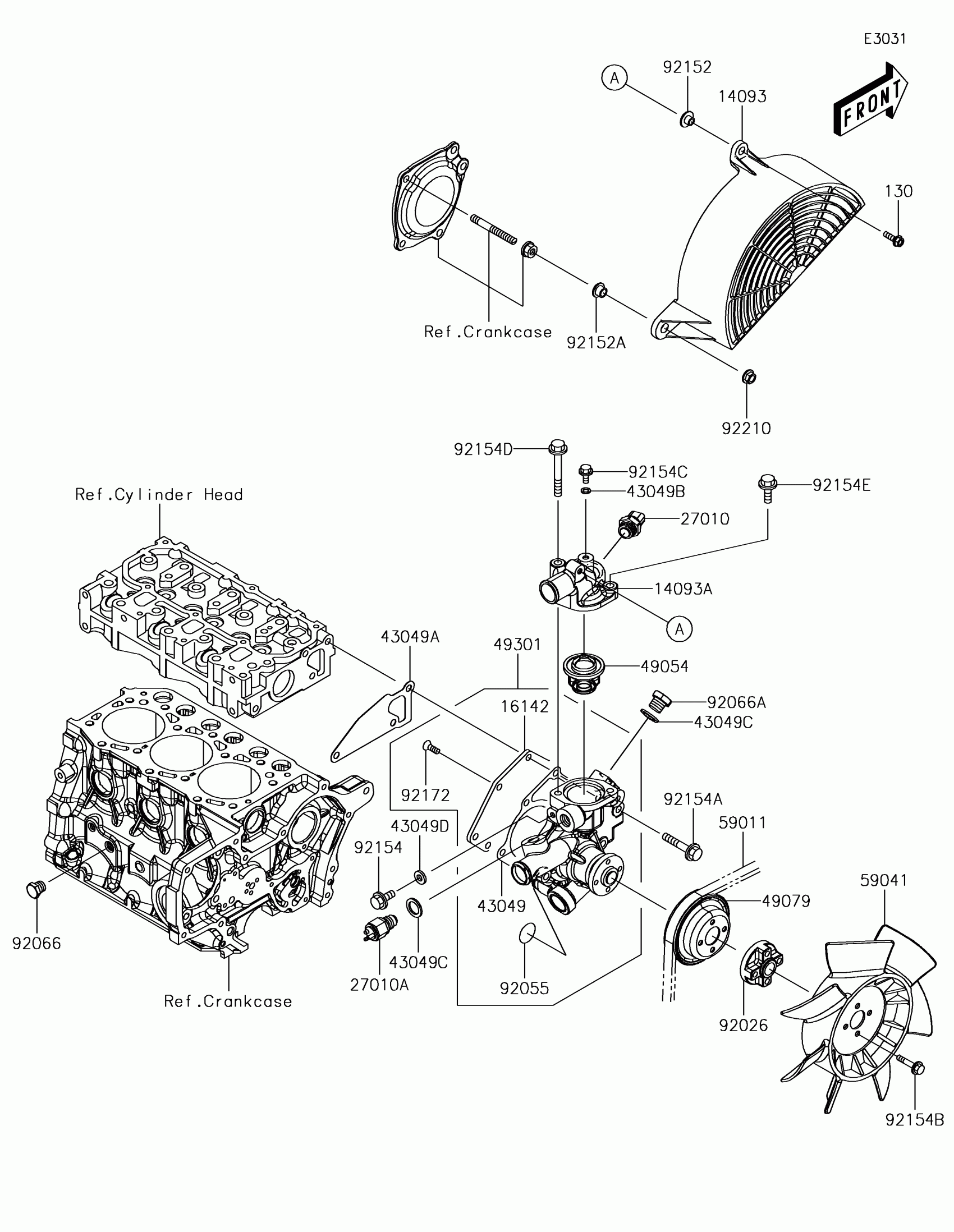

Kawasaki MULE PRO-DXT™ Water Pump Diagram
#
Description
Price
130
BOLT-FLANGED,6X20
130BA0620
$1.74
14093
COVER,FAN
14093-0297
$11.62
14093A
COVER,THERMOSTAT
14093-0446
$81.25
16142
COVER-PUMP
16142-0736
$25.96
27010
SWITCH,THERMOSTAT
27010-0839
$55.96
27010A
SWITCH,THERMO
27010-0840
$36.12
43049
PACKING,WATER PUMP
43049-0040
$11.19
43049A
PACKING,WATER PUMP
43049-0041
$17.25
43049B
PACKING,6X1
43049-0042
$2.47
43049C
PACKING
43049-0043
$3.91
43049D
PACKING,8X1
43049-0047
$2.47
49054
THERMOSTAT
49054-0008
$54.75
49079
PULLEY-BELT
49079-0027
$72.31
49301
PUMP-ASSY-WATER
49301-0002
$367.68
59011
BELT,A35
59011-0045
$23.77
59041
FAN,COOLING
59041-0015
$243.28
92026
SPACER
92026-0820
$30.08
92055
RING-O
92055-0858
$5.61
92066
PLUG,DRAIN
92066-0853
$32.67
92066A
PLUG
92066-0854
$10.46
92152
COLLAR
92152-0181
$4.60
92152A
COLLAR
92152-0613
$5.65
92154
BOLT,FLANGED,8X12
92154-1999
$2.49
92154A
BOLT,FLANGED,8X45
92154-2000
$2.92
92154B
BOLT,FLANGED,6X30
92154-2067
$2.03
92154C
BOLT,FLANGED,6X10
92154-2068
$2.03
92154D
BOLT,FLANGED,8X65
92154-2070
$2.92
92154E
BOLT,FLANGED,8X28
92154-2110
$2.49
92172
SCREW,6X12
92172-0987
$2.03
92210
NUT,FLANGED,8MM
92210-0555
$2.03
