2018 Kawasaki Mule Pro-DXT™ Oil Pan/oil Filter Diagram

← All diagrams

Find the part on the Oil Pan/oil Filter diagram for your 2018 Kawasaki Mule Pro-DXT™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

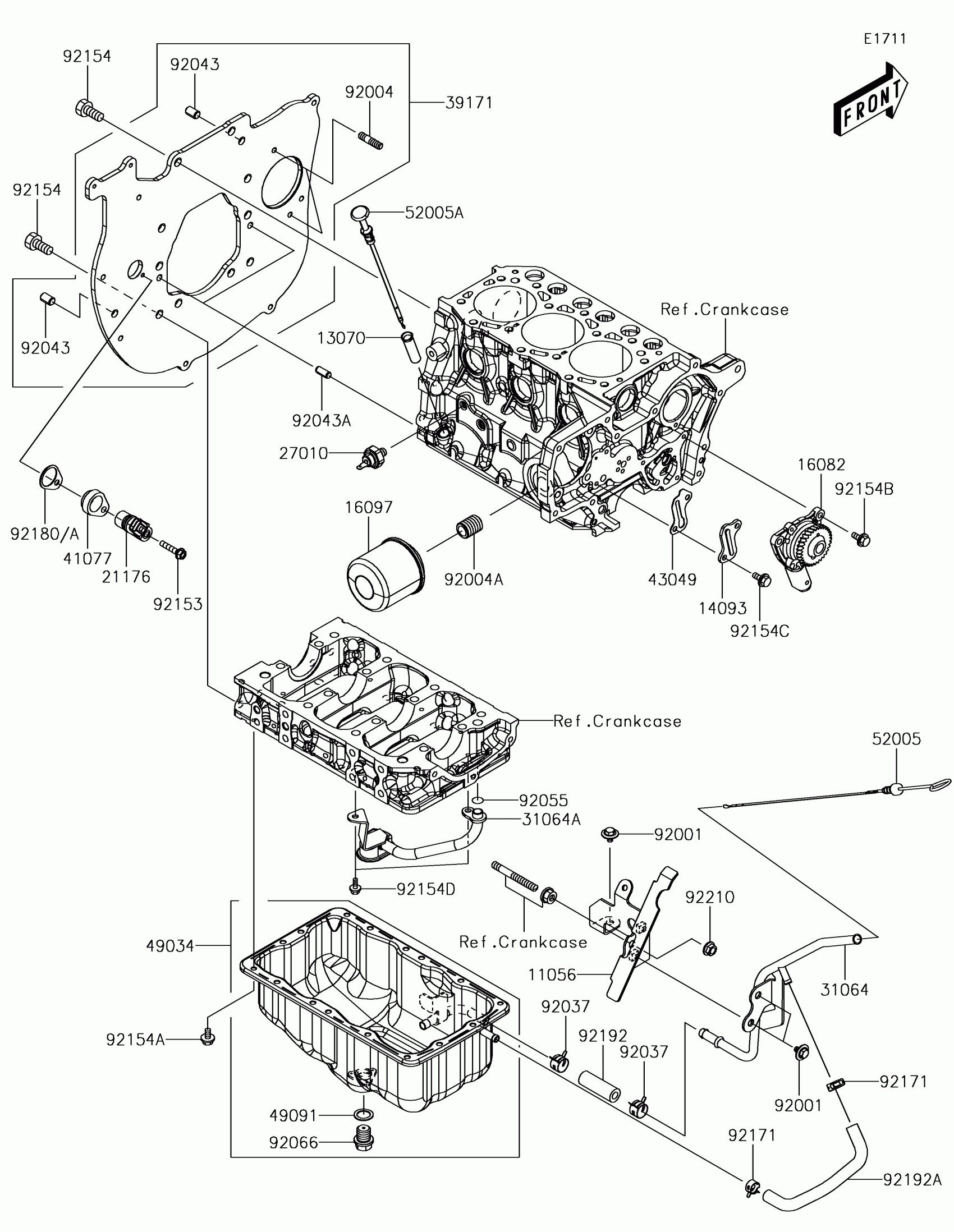

2018 Kawasaki Mule Pro-DXT™ Oil Pan/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,LEVEL GAUGE PIPE

11056-7693

1
Out of stock

13070

GUIDE,OIL LEVEL GAUGE

13070-0830

1
Out of stock

14093

COVER

14093-0445

1
Out of stock

16082

PUMP-ASSY-OIL

16082-0763

1
Out of stock

16097

FILTER-ASSY-OIL

16097-0012

1
Out of stock

21176

SENSOR,ROTATION

21176-0767

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-0838

1
Out of stock

31064

PIPE-COMP,LEVEL GAUGE

31064-0677

1
Out of stock

31064A

PIPE-COMP,OIL

31064-0679

1
Out of stock

39171

FLANGE-COMP

39171-0003

1
Out of stock

41077

ADAPTER,ROTATION SENSOR

41077-0722

1
Out of stock

43049

PACKING

43049-0039

1
Out of stock

49034

PAN-OIL

49034-0566

1
Out of stock

49091

WASHER-SEAL

49091-0006

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-0754

1
Out of stock

52005A

GAUGE,OIL LEVEL

52005-0759

1
Out of stock

92001

BOLT,FLANGED,6X10

92001-1034

1
Out of stock

92004

STUD,8X25

92004-0745

1
Out of stock

92004A

STUD

92004-0749

1
Out of stock

92037

CLAMP

92037-1678

1
Out of stock

92043

PIN,10X16

92043-0885

1
Out of stock

92043A

PIN,8X16

92043-0886

1
Out of stock

92055

RING-O

92055-0857

1
Out of stock

92066

PLUG,DRAIN

92066-0851

1
Out of stock

92153

BOLT,FLANGED,6X30

92153-1425

1
Out of stock

92154

BOLT,10X20

92154-1985

1
Out of stock

92154A

BOLT,TORX,6X10

92154-1986

1
Out of stock

92154B

BOLT,FLANGED,6X14

92154-1997

1
Out of stock

92154C

BOLT,FLANGED,6X12

92154-1998

1
Out of stock

92154D

BOLT,FLANGED,6X10

92154-2068

1
Out of stock

92171

CLAMP,CLIP,12.5MM

92171-0372

1
Out of stock

92180

SHIM,T=1.0

92180-0968

—
Out of stock

92180A

SHIM,T=0.5

92180-0969

—
Out of stock

92192

TUBE,9X17.5X52

92192-1482

1
Out of stock

92192A

TUBE,PIPE COMP-OIL PAN

92192-1501

1
Out of stock

92210

NUT,FLANGED,8MM

92210-0555

1
Out of stock
