2025 Kawasaki Mule PRO-DXT™ FE EPS Steering Shaft Diagram

← All diagrams

Find the part on the Steering Shaft diagram for your 2025 Kawasaki Mule PRO-DXT™ FE EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

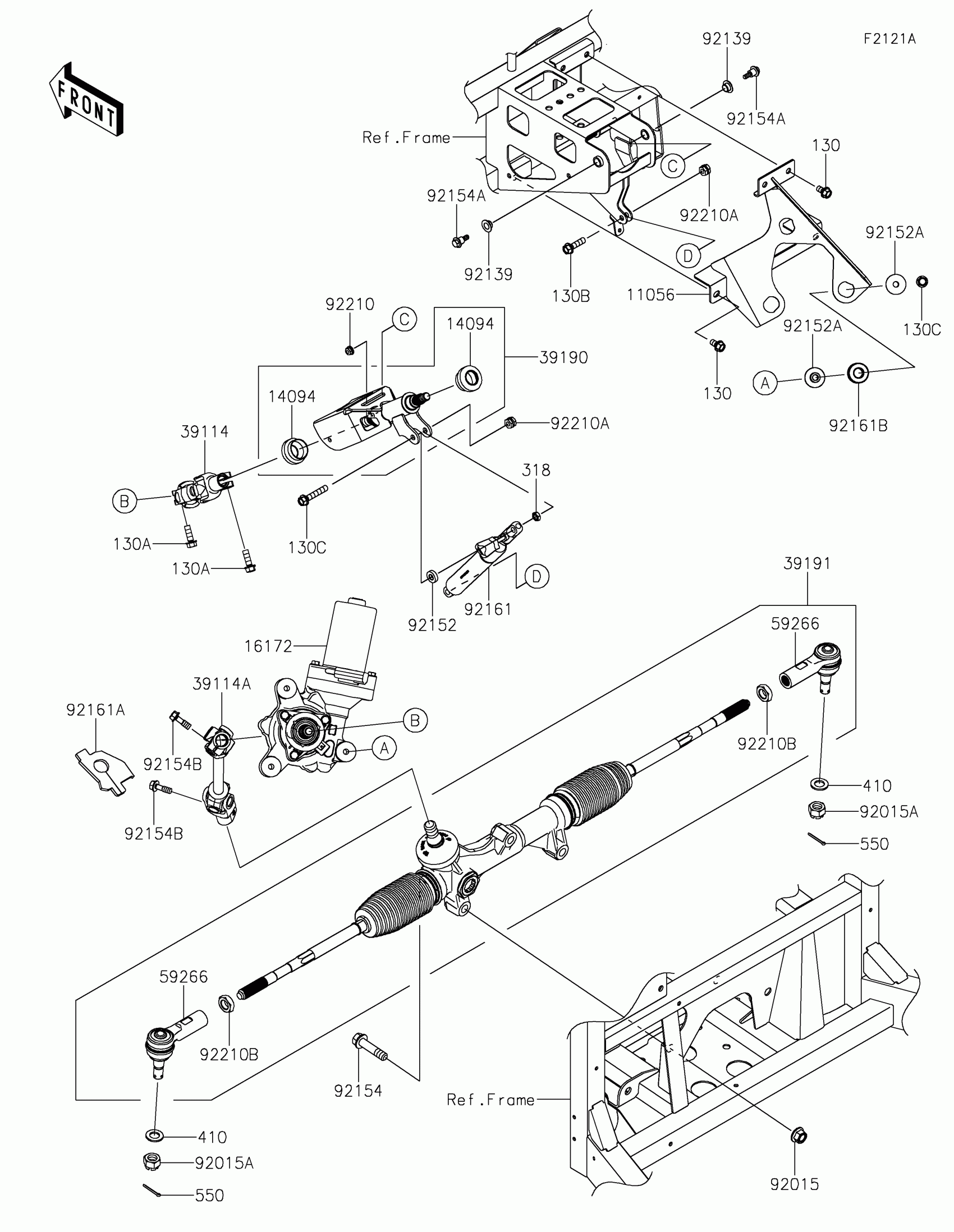

2025 Kawasaki Mule PRO-DXT™ FE EPS Steering Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-2838

1
Out of stock

14094

COVER,STEERING SHAFT

14094-0322

1
Out of stock

16172

ACTUATOR,EPS

16172-0557

1
Out of stock

39114

SHAFT-COMP-STRG

39114-0019

1

$97.99

In stock

39114A

SHAFT-COMP-STRG

39114-0045

1
Out of stock

39190

SHAFT-ASSY-STEERING

39190-0022

1
Out of stock

39191

GEAR-ASSY-STEERING

39191-0039

1
Out of stock

59266

JOINT-BALL

59266-0771

1
Out of stock

92015

NUT,LOCK,FLANGED,12MM

92015-1433

1
Out of stock

92015A

NUT,CASTLE,14MM

92015-1841

1
Out of stock

92139

BUSHING

92139-0230

1
Out of stock

92152

COLLAR,8.2X18X5

92152-1848

1
Out of stock

92152A

COLLAR,8.5X30X10.6

92152-2149

1
Out of stock

92154

BOLT,FLANGED,12X50

92154-1008

1
Out of stock

92154A

BOLT,6X21.5

92154-1320

1
Out of stock

92154B

BOLT

92154-4224

1
Out of stock

92161

DAMPER,GAS SPRING

92161-1825

1

$46.43

In stock

92161A

DAMPER

92161-2492

1
Out of stock

92161B

DAMPER,ACTUATOR

92161-7517

1

$2.66

In stock

92210

NUT,LOCK,FLANGED,6MM

92210-0303

1
Out of stock

92210A

NUT,HARD LOCK,8MM

92210-0934

1
Out of stock

92210B

NUT

92210-1933

1
Out of stock

130

BOLT-FLANGED,8X14

130BA0814

1

$1.78

In stock

130A

BOLT-FLANGED,8X25

130BA0825

1

$2.34

In stock

130B

BOLT-FLANGED,8X30

130CA0830

1

$1.00

In stock

130C

BOLT-FLANGED,8X45

130CA0845

1

$1.10

In stock

318

NUT-HEX-SMALL,8MM

318BA0800

1
Out of stock

410

WASHER-PLAIN-SMALL,14MM

410AA1400

1
Out of stock

550

PIN-COTTER,3.0X25

550AA3025

1
Out of stock
