2025 Kawasaki Mule PRO-DXT™ FE EPS Rear Suspension Diagram

← All diagrams

Find the part on the Rear Suspension diagram for your 2025 Kawasaki Mule PRO-DXT™ FE EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

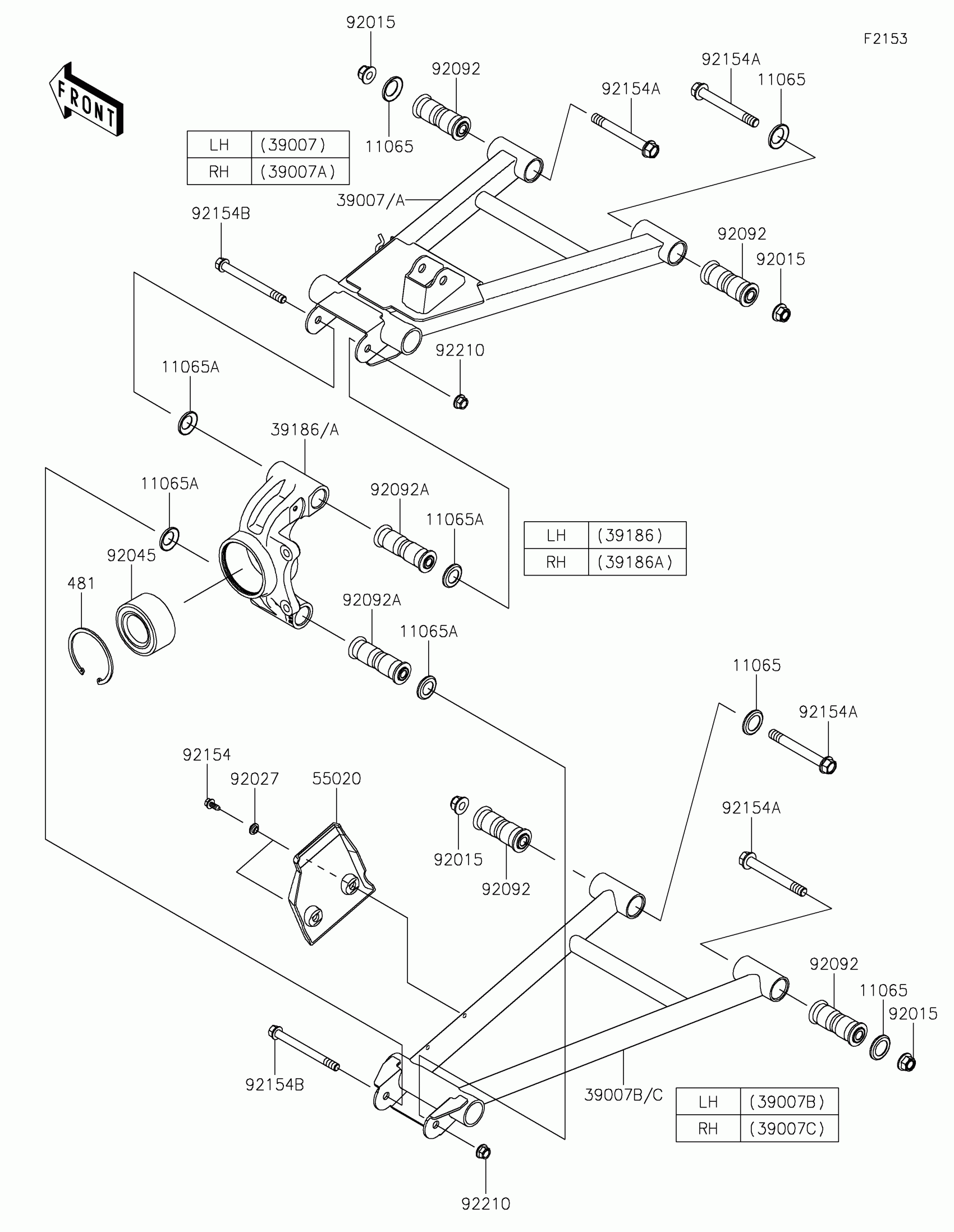

2025 Kawasaki Mule PRO-DXT™ FE EPS Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,ARM

11065-0838

1
Out of stock

11065A

CAP

11065-0849

1
Out of stock

39007

ARM-SUSP,RR,UPP,LH

39007-0379

1

$131.82

In stock

39007A

ARM-SUSP,RR,UPP,RH

39007-0380

1

$219.53

In stock

39007B

ARM-SUSP,RR,LWR,LH

39007-0381

1

$135.48

In stock

39007C

ARM-SUSP,RR,LWR,RH

39007-0382

1

$135.48

In stock

39186

KNUCKLE,RR,LH

39186-0317

1

$194.07

In stock

39186A

KNUCKLE,RR,RH

39186-0318

1

$194.07

In stock

55020

GUARD,RR CVJ

55020-0931

1

$10.90

In stock

92015

NUT,LOCK,FLANGED,12MM

92015-1433

1
Out of stock

92027

COLLAR,L=4.6

92027-1168

1
Out of stock

92045

BEARING-BALL,40X74X36

92045-0993

1
Out of stock

92092

BUSHING-RUBBER,12X20X78

92092-0028

1
Out of stock

92092A

BUSHING-RUBBER,10.1X17X88

92092-0029

1
Out of stock

92154

BOLT,6X15.6

92154-1250

1
Out of stock

92154A

BOLT,FLANGED,12X100

92154-1318

1
Out of stock

92154B

BOLT,FLANGED,10X110

92154-1353

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock

481

CIRCLIP-TYPE-C

481J7500

1
Out of stock
