Description

Price

13183

PLATE,SEAT

13183-1400

$7.58

13272

PLATE

13272-1699

$1.82

53007

FRAME-SEAT

53007-0364

$156.66

53061

BELT-SEAT,BUCKLE

53061-0039

$31.80

53061B

BELT-SEAT,MIDDLE

53061-0352

$160.66

53061C

BELT-SEAT,RR,LH&RH

53061-0353

$160.66

53061D

BELT-SEAT,BUCKLE,SW.

53061-0364

$55.82

53061E

BELT-SEAT,FR,LH&RH

53061-0370

$160.66

53066B

SEAT-ASSY,BOTTOM,BLACK

53066-0850-MA

$472.94

53066C

SEAT-ASSY,BACK,BLACK

53066-0851-MA

$275.04

92039

RIVET

92039-0747

$2.49

92039A

RIVET

92039-0776

$1.19

92043

PIN

92043-0859

$1.91

92072

BAND

92072-0769

$3.89

92154

BOLT,FLANGED,10X19.5

92154-1959

$6.52

92161

DAMPER

92161-1065

$3.73

92161A

DAMPER,10.5X30X8.2

92161-1784

$0.88

92172

SCREW,6X16

92172-0284

$1.34

92172A

SCREW,TAPPING,6X20

92172-0488

$3.02

92200

WASHER,16X22X2

92200-1798

$1.34

130

BOLT-FLANGED,12X20

130BA1220

$3.74

130A

BOLT-FLANGED,8X16

130CA0816

$2.49

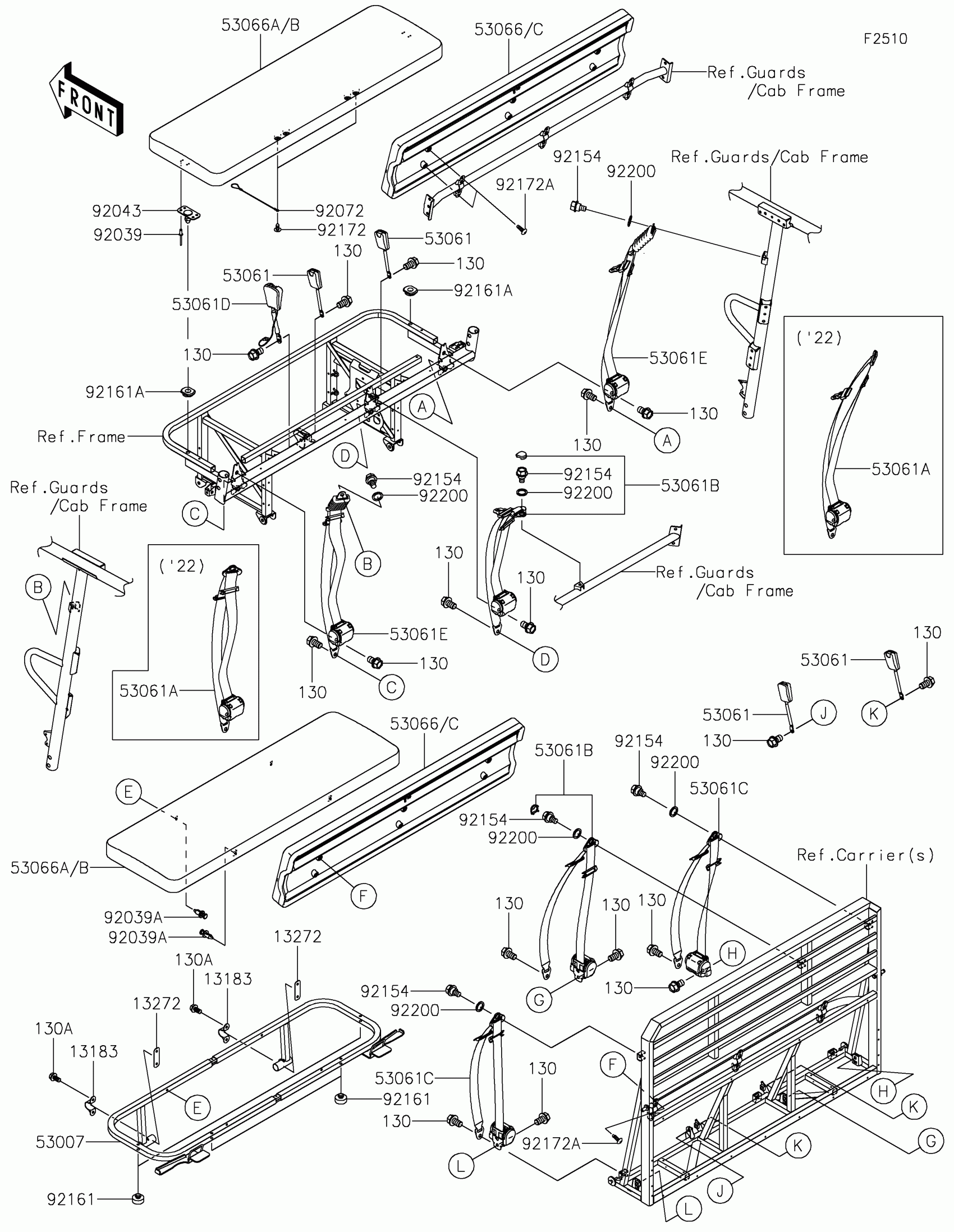

Kawasaki MULE PRO-DXT™ FE EPS Seat Diagram

PLATE,SEAT

PLATE

FRAME-SEAT

BELT-SEAT,BUCKLE

BELT-SEAT,MIDDLE

BELT-SEAT,RR,LH&RH

BELT-SEAT,BUCKLE,SW.

BELT-SEAT,FR,LH&RH

SEAT-ASSY,BOTTOM,BLACK

SEAT-ASSY,BACK,BLACK

RIVET

RIVET

PIN

BAND

BOLT,FLANGED,10X19.5

DAMPER

DAMPER,10.5X30X8.2

SCREW,6X16

SCREW,TAPPING,6X20

WASHER,16X22X2

BOLT-FLANGED,12X20

BOLT-FLANGED,8X16
