2025 Kawasaki Mule PRO-DXT™ FE EPS Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2025 Kawasaki Mule PRO-DXT™ FE EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

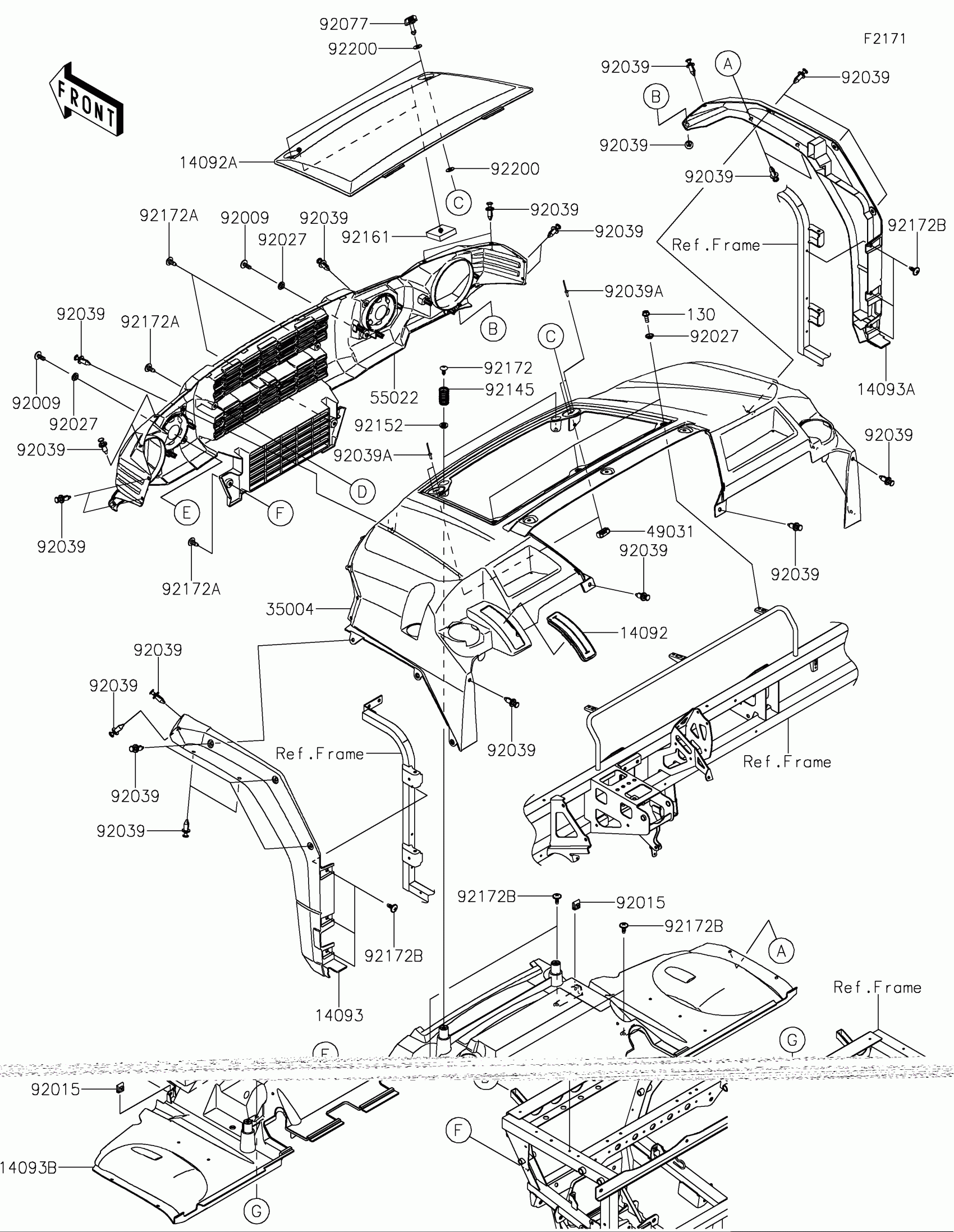

2025 Kawasaki Mule PRO-DXT™ FE EPS Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14092

COVER,CENTER CONSOLE,TOP

14092-0791

1
Out of stock

14092A

COVER,OPEN,B.WHITE

14092-1177-266

1
Out of stock

14093

COVER,SIDE,LH

14093-0596

1
Out of stock

14093A

COVER,SIDE,RH

14093-0597

1
Out of stock

14093B

COVER,TOP,FR INNER

14093-1464

1
Out of stock

35004

FENDER-FRONT,B.WHITE

35004-0335-266

1
Out of stock

49031

LATCH

49031-0008

1
Out of stock

55022

COVER-HEAD LAMP

55022-0304

1
Out of stock

92009

SCREW,6X16

92009-1621

1
Out of stock

92015

NUT,CLAMP,6MM

92015-1678

1
Out of stock

92027

COLLAR,L=4.6

92027-1168

1
Out of stock

92039

RIVET

92039-0776

1
Out of stock

92039A

RIVET,3.2X9.5

92039-0785

1
Out of stock

92077

KNOB

92077-0030

1
Out of stock

92145

SPRING,17X65

92145-1727

1
Out of stock

92152

COLLAR

92152-0140

1
Out of stock

92161

DAMPER,40X40X10

92161-1861

1

$2.05

In stock

92172

SCREW,6X16

92172-0284

1
Out of stock

92172A

SCREW,6X16

92172-0711

1
Out of stock

92172B

SCREW,6X16

92172-0826

1
Out of stock

92200

WASHER

92200-0503

1
Out of stock

130

BOLT-FLANGED,6X16

130CA0616

1

$1.53

In stock
