2025 Kawasaki Mule PRO-DXT™ FE EPS Converter Cover Diagram

← All diagrams

Find the part on the Converter Cover diagram for your 2025 Kawasaki Mule PRO-DXT™ FE EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

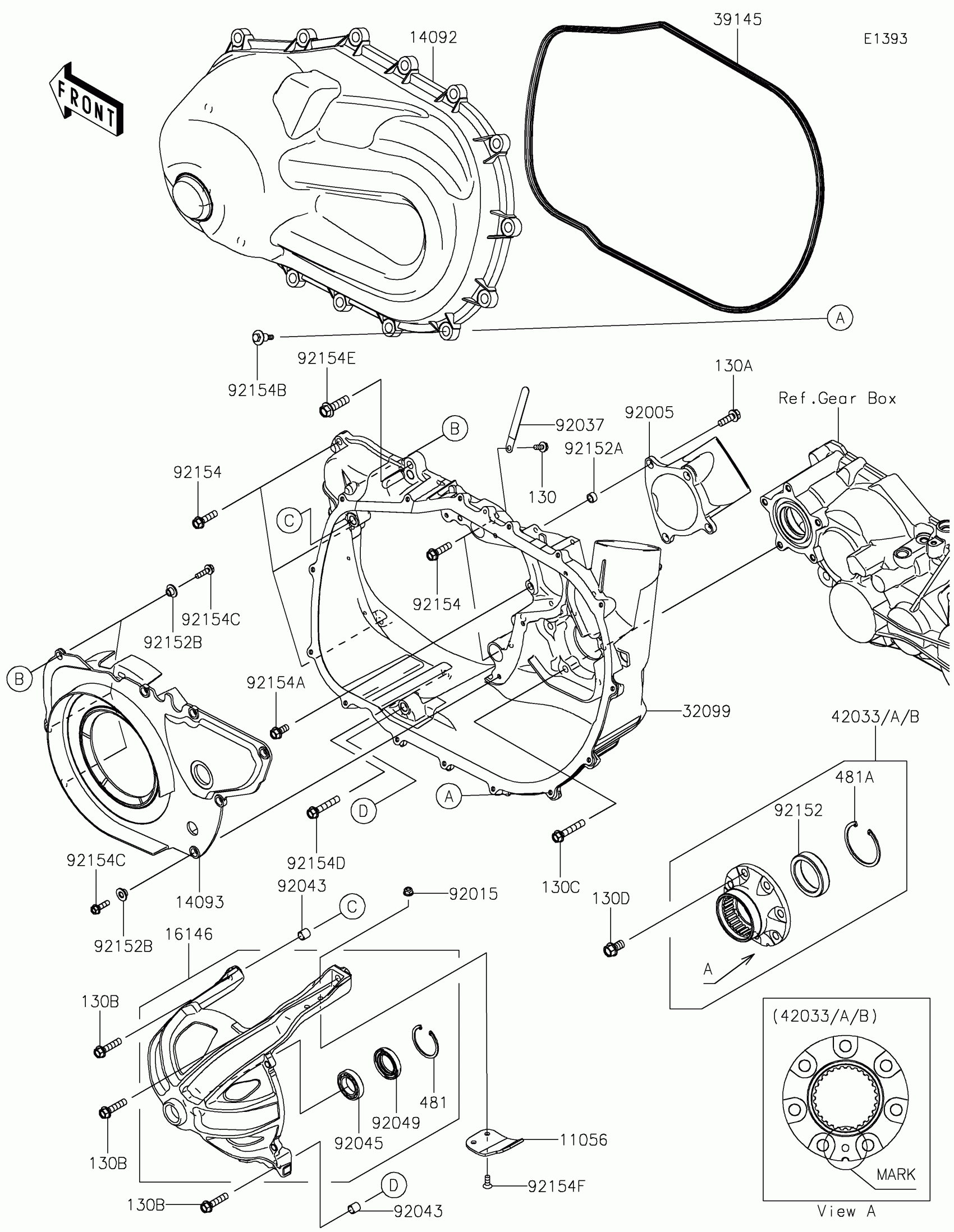

2025 Kawasaki Mule PRO-DXT™ FE EPS Converter Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,CVT BELT GUIDE

11056-7883

1
Out of stock

14092

COVER,CVT

14092-1202

1
Out of stock

14093

COVER

14093-0302

1
Out of stock

16146

COVER-ASSY

16146-0791

1
Out of stock

32099

CASE,CVT

32099-0771

1
Out of stock

39145

TRIM-SEAL

39145-0047

1

$36.61

In stock

42033

COUPLING-ASSY,B MARK,WHITE

42033-0582

1
Out of stock

42033A

COUPLING-ASSY,A MARK,BLUE

42033-0583

1
Out of stock

42033B

COUPLING-ASSY,C MARK,YELLOW

42033-0584

1
Out of stock

92005

FITTING,INTAKE

92005-0762

1
Out of stock

92015

NUT,LOCK,FLANGED,6MM

92015-1675

1
Out of stock

92037

CLAMP

92037-1993

1
Out of stock

92043

PIN,12X14

92043-0963

1
Out of stock

92045

BEARING-BALL,#6905

92045-036

1
Out of stock

92049

SEAL-OIL,HTC 28X45X8

92049-0767

1
Out of stock

92152

COLLAR

92152-1822

1
Out of stock

92152A

COLLAR,8.8X12.3X6.9

92152-1853

1
Out of stock

92152B

COLLAR

92152-1931

1
Out of stock

92154

BOLT,FLANGED,8X30

92154-0850

1
Out of stock

92154A

BOLT,FLANGED,8X18

92154-1386

1
Out of stock

92154B

BOLT,CVT COVER

92154-1522

1
Out of stock

92154C

BOLT,FLANGED,6X22

92154-1525

1
Out of stock

92154D

BOLT,FLANGED,8X45

92154-1526

1
Out of stock

92154E

BOLT,FLANGED,10X35

92154-1744

1
Out of stock

92154F

BOLT,6X16

92154-2147

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

130A

BOLT-FLANGED,8X25

130BA0825

1

$2.34

In stock

130B

BOLT-FLANGED,8X35

130BA0835

1

$1.31

In stock

130C

BOLT-FLANGED,8X45

130BA0845

1

$1.39

In stock

130D

BOLT-FLANGED,10X18

130CA1018

1

$2.05

In stock

481

CIRCLIP,45MM

481J4500

1
Out of stock

481A

CIRCLIP

481J6200

1
Out of stock
