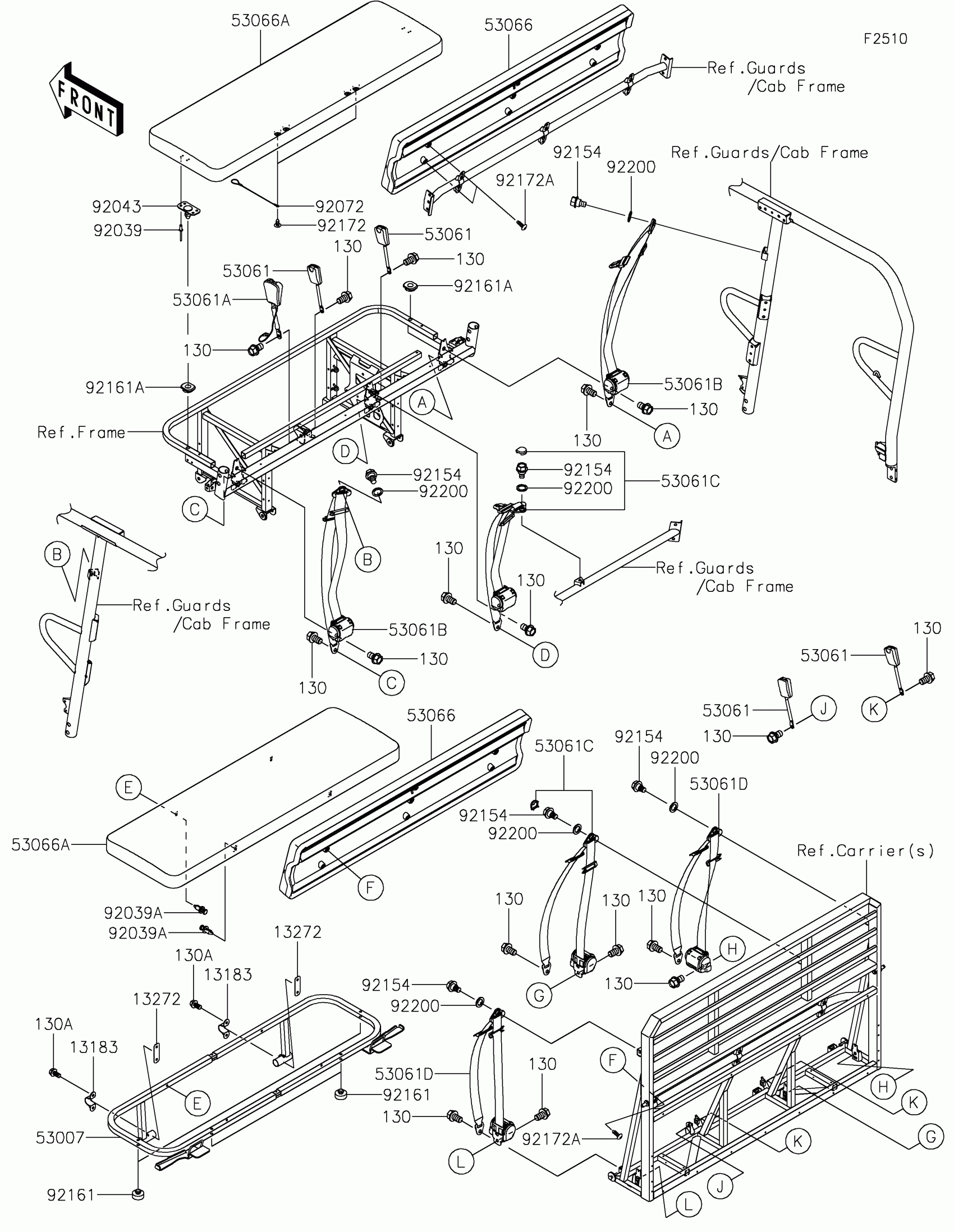

Kawasaki MULE PRO-DXT™ EPS LE Seat Diagram

#

Description
Price

130

BOLT-FLANGED,12X20

130BA1220

$2.97

130A

BOLT-FLANGED,8X16

130CA0816

$2.05

13183

PLATE,SEAT

13183-1400

$5.98

13272

PLATE

13272-1699

$1.56

53007

FRAME-SEAT

53007-0364

$159.66

53061

BELT-SEAT,BUCKLE

53061-0039

$28.65

53061A

BELT-SEAT,BUCKLE,SW.

53061-0338

$50.22

53061B

BELT-SEAT,FR,LH&RH

53061-0340

$157.21

53061C

BELT-SEAT,MIDDLE

53061-0341

$163.87

53061D

BELT-SEAT,RR,LH&RH

53061-0348

$152.89

53066

SEAT-ASSY,BACK,BLACK

53066-0426-MA

$261.04

53066A

SEAT-ASSY,BOTTOM,BLACK

53066-0495-MA

$482.40

92039

RIVET

92039-0747

$2.05

92039A

RIVET

92039-0776

$0.80

92043

PIN

92043-0859

$1.61

92072

BAND

92072-0769

$3.41

92154

BOLT,FLANGED,10X19.5

92154-1959

$5.66

92161

DAMPER

92161-1065

$2.97

92161A

DAMPER,10.5X30X8.2

92161-1784

$0.86

92172

SCREW,6X16

92172-0284

$0.94

92172A

SCREW,TAPPING,6X20

92172-0488

$2.44

92200

WASHER,16X22X2

92200-1798

$1.20
