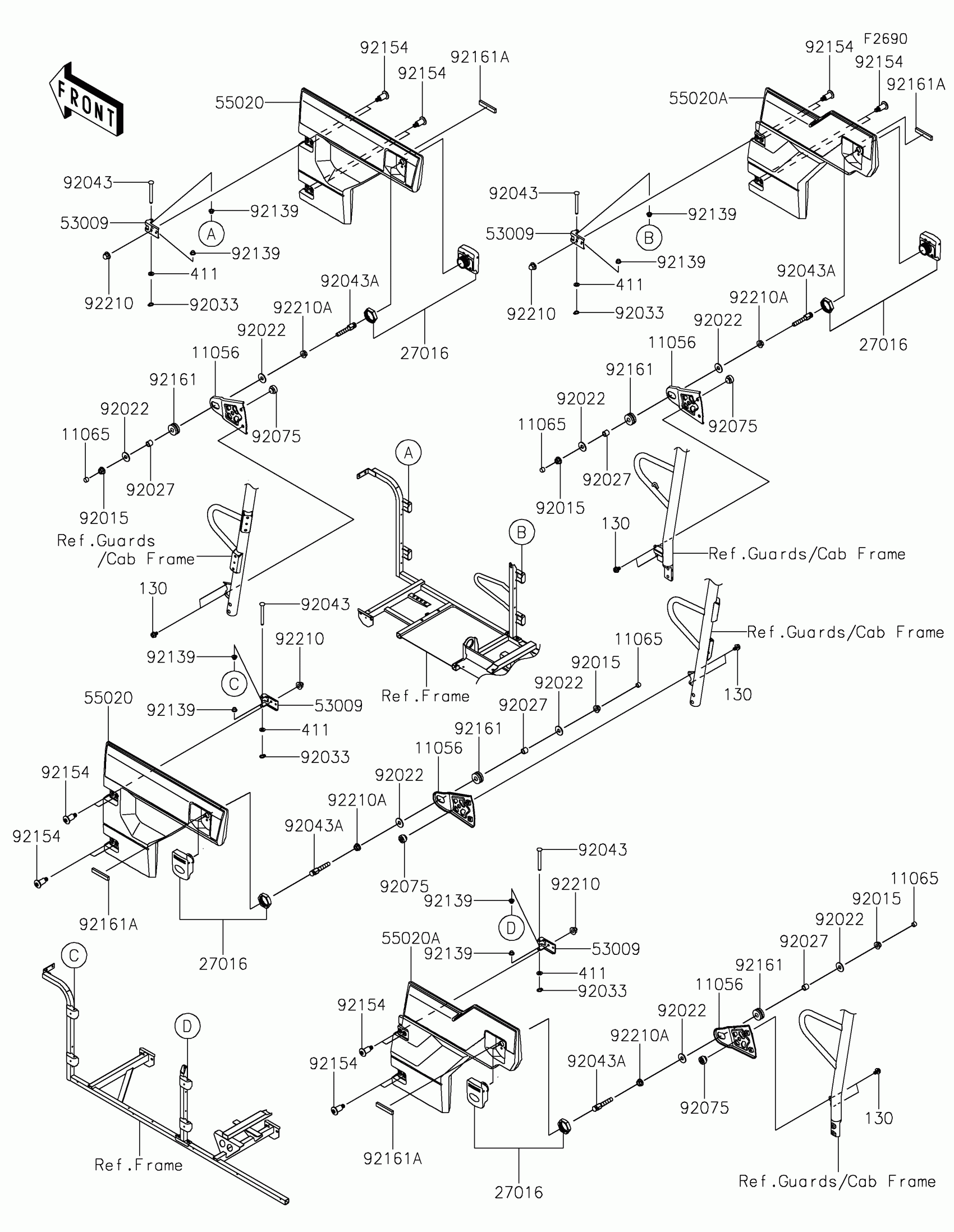

Kawasaki MULE PRO-DXT™ EPS LE Door Diagram

Description

Price

11056

BRACKET,DOOR GUARD

11056-2856

$6.86

11065

CAP

11065-7504

$1.32

130

BOLT-FLANGED,6X10

130BA0610

$1.12

27016

LOCK-ASSY

27016-0084

$71.88

411

WASHER-PLAIN,6MM

411AB0600

$1.08

53009

HINGE

53009-0303

$4.97

55020

GUARD,FR,F.BLACK

55020-0936-6Z

$125.55

55020A

GUARD,RR,F.BLACK

55020-0937-6Z

$127.58

92015

NUT,8MM

92015-1432

$5.21

92022

WASHER,PLAIN

92022-3026

$2.92

92027

COLLAR

92027-102

$1.00

92033

RING-SNAP

92033-0719

$0.85

92043

PIN,6X56

92043-0743

$3.26

92043A

PIN,DOOR LOCK

92043-0788

$12.25

92075

DAMPER

92075-1598

$6.82

92139

BUSHING,6X8X6

92139-0709

$2.42

92154

BOLT,SOCKET,8X30

92154-1369

$3.07

92161

DAMPER,10X26X11.5

92161-1691

$1.00

92161A

DAMPER,9X52X5

92161-1837

$1.47

92210

NUT,CAP,8MM

92210-0488

$2.64

92210A

NUT,FLANGED,8MM

92210-0555

$1.71
