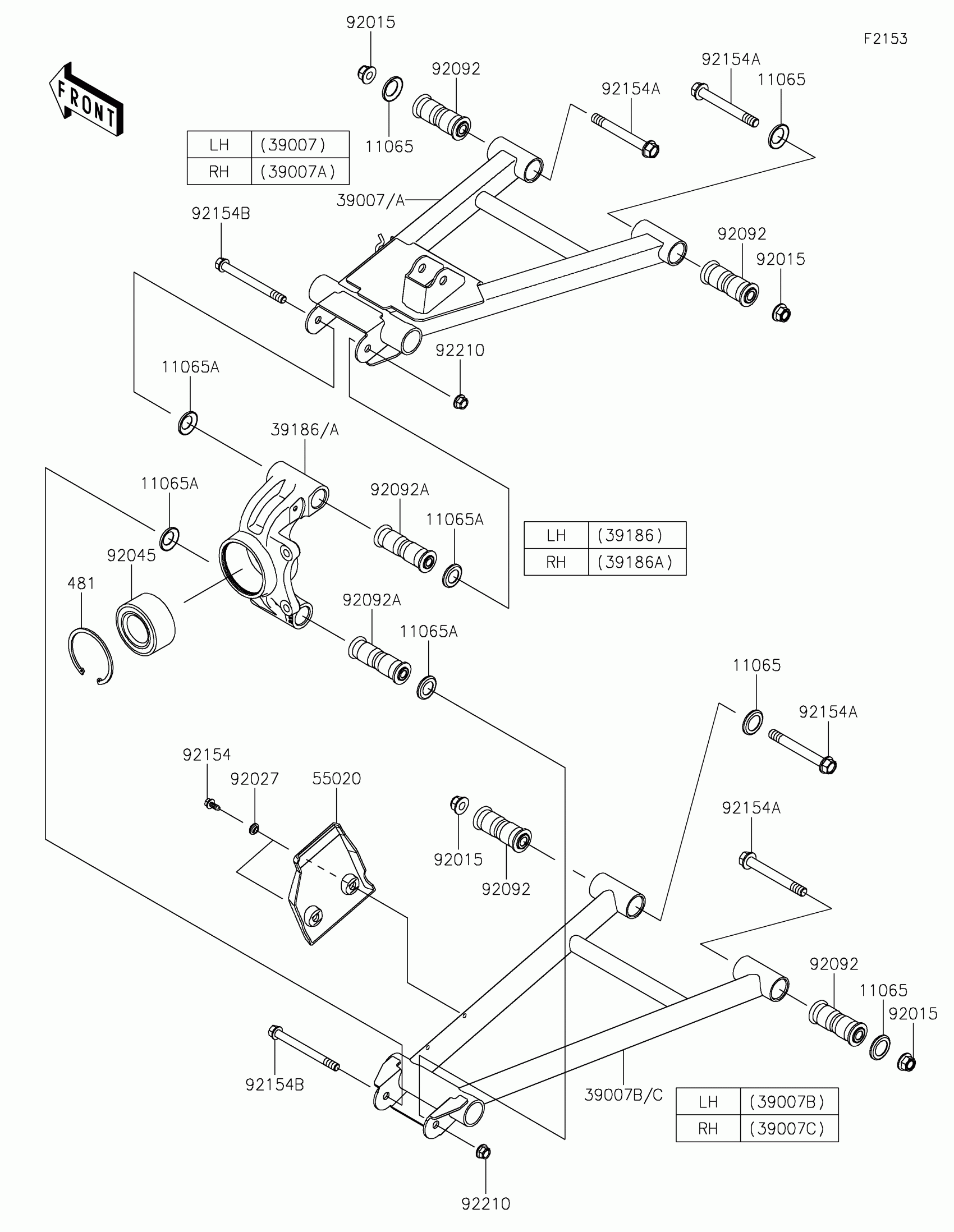

Kawasaki MULE PRO-DXT™ EPS LE Rear Suspension Diagram

Description

Price

11065

CAP,ARM

11065-0838

$3.08

11065A

CAP

11065-0849

$3.08

39007

ARM-SUSP,RR,UPP,LH

39007-0379

$137.45

39007A

ARM-SUSP,RR,UPP,RH

39007-0380

$219.53

39007B

ARM-SUSP,RR,LWR,LH

39007-0381

$135.48

39007C

ARM-SUSP,RR,LWR,RH

39007-0382

$135.48

39186

KNUCKLE,RR,LH

39186-0317

$194.07

39186A

KNUCKLE,RR,RH

39186-0318

$194.07

481

CIRCLIP-TYPE-C

481J7500

$4.35

55020

GUARD,RR CVJ

55020-0931

$10.90

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$7.04

92027

COLLAR,L=4.6

92027-1168

$3.97

92045

BEARING-BALL,40X74X36

92045-0763

$58.44

92092

BUSHING-RUBBER,12X20X78

92092-0028

$20.18

92092A

BUSHING-RUBBER,10.1X17X88

92092-0029

$19.45

92154

BOLT,6X15.6

92154-1250

$0.83

92154A

BOLT,FLANGED,12X100

92154-1318

$6.04

92154B

BOLT,FLANGED,10X110

92154-1353

$3.90

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.15
