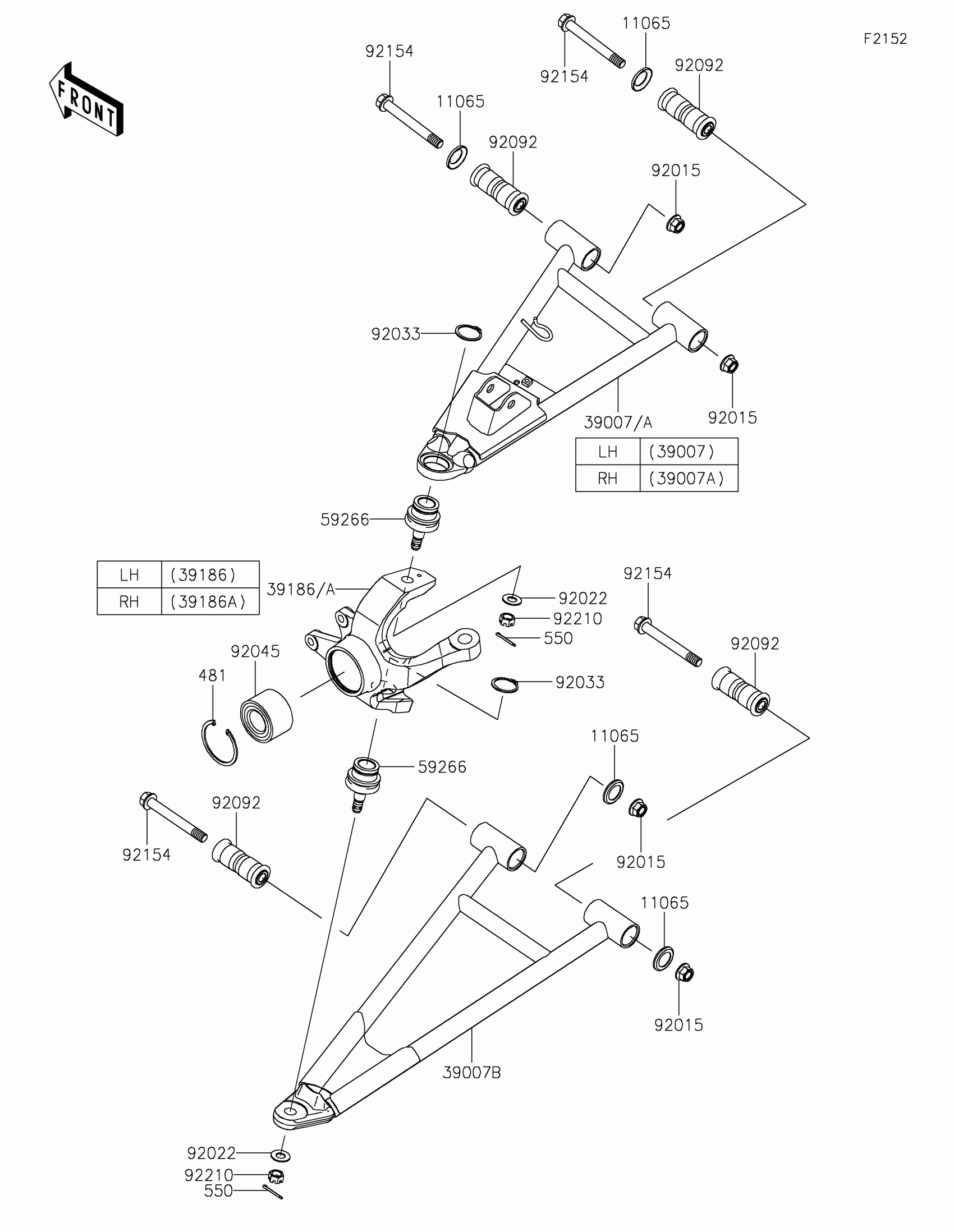

Kawasaki MULE PRO-DXT™ EPS LE Front Suspension Diagram

Description

Price

11065

CAP,ARM

11065-0838

$3.08

39007

ARM-SUSP,FR,UPP,LH

39007-0377

$131.83

39007A

ARM-SUSP,FR,UPP,RH

39007-0378

$131.82

39007B

ARM-SUSP,FR,LWR,LH&RH

39007-0383

$126.27

39186

KNUCKLE,FR,LH

39186-0319

$180.74

39186A

KNUCKLE,FR,RH

39186-0320

$180.74

481

CIRCLIP-TYPE-C

481J6000

$2.86

550

PIN-COTTER,3.0X25

550AA3025

$0.67

59266

JOINT-BALL

59266-0711

$87.41

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$7.04

92022

WASHER

92022-1831

$4.37

92033

RING-SNAP,C-TYPE,32MM

92033-1262

$5.07

92045

BEARING-BALL,30X60X37

92045-0905

$58.81

92092

BUSHING-RUBBER,12X20X78

92092-0028

$20.18

92154

BOLT,FLANGED,12X100

92154-1318

$6.04

92210

NUT,CASTLE,12MM

92210-0395

$3.07
