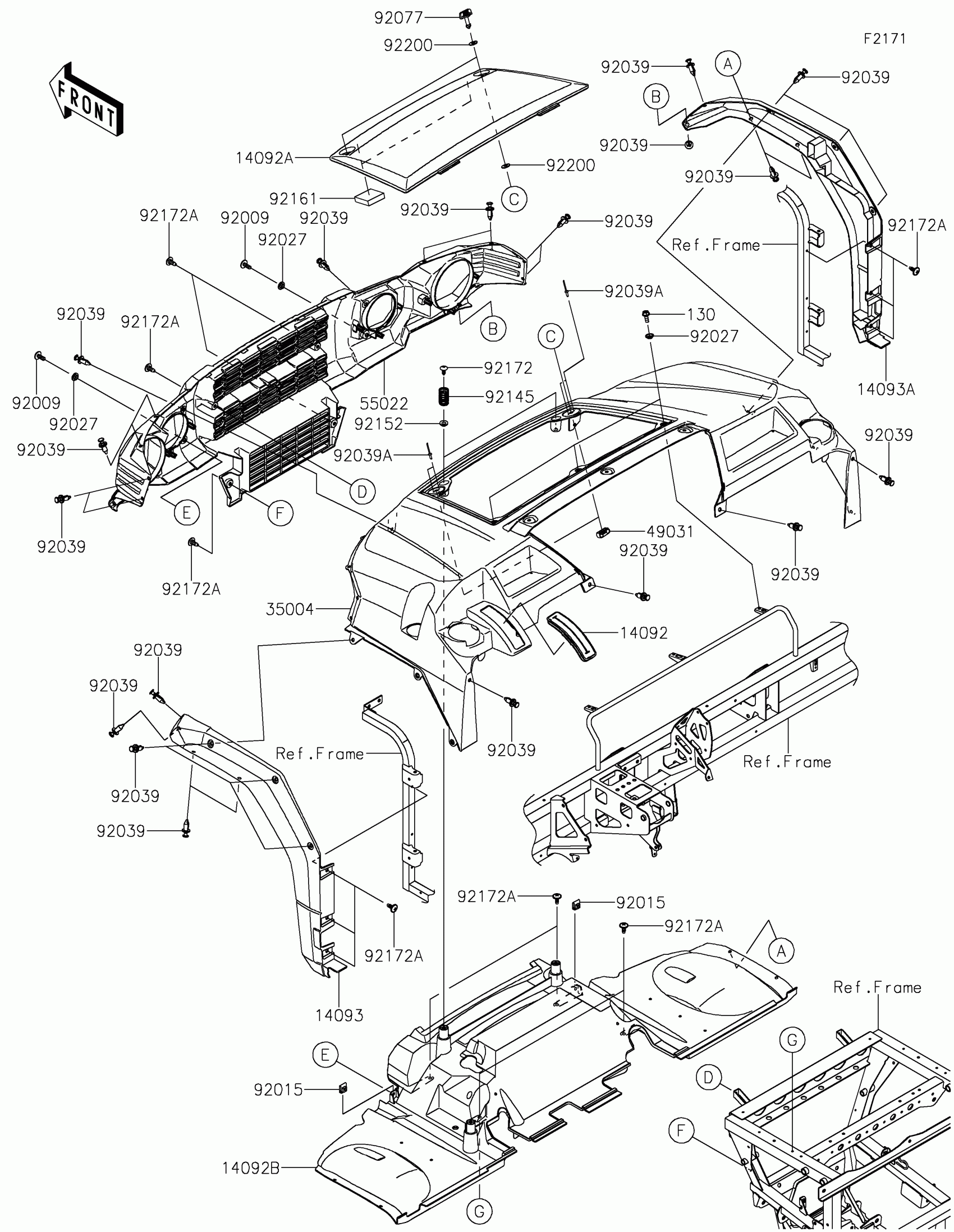

Kawasaki MULE PRO-DXT™ EPS LE Front Fender(s) Diagram

Description

Price

130

BOLT-FLANGED,6X16

130CA0616

$1.53

14092

COVER,CENTER CONSOLE,TOP

14092-0791

$6.58

14092A

COVER,OPEN,D.R.RED

14092-1177-16L

$162.38

14092B

COVER,TOP,FR INNER

14092-1194

$166.92

14093

COVER,SIDE,LH

14093-0596

$76.00

14093A

COVER,SIDE,RH

14093-0597

$76.00

35004

FENDER-FRONT,D.R.RED

35004-0335-16L

$336.29

49031

LATCH

49031-0008

$1.53

55022

COVER-HEAD LAMP

55022-0309

$115.42

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,CLAMP,6MM

92015-1678

$4.37

92027

COLLAR,L=4.6

92027-1168

$3.97

92039

RIVET

92039-0776

$0.80

92039A

RIVET,3.2X9.5

92039-0785

$2.02

92077

KNOB

92077-0030

$2.44

92145

SPRING,17X65

92145-1727

$2.03

92152

COLLAR

92152-0140

$4.63

92161

DAMPER,40X40X10

92161-1861

$2.05

92172

SCREW,6X16

92172-0284

$0.94

92172A

SCREW,6X16

92172-0711

$2.44

92200

WASHER

92200-0503

$2.10
