2025 Kawasaki Mule PRO-DXT™ EPS Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2025 Kawasaki Mule PRO-DXT™ EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

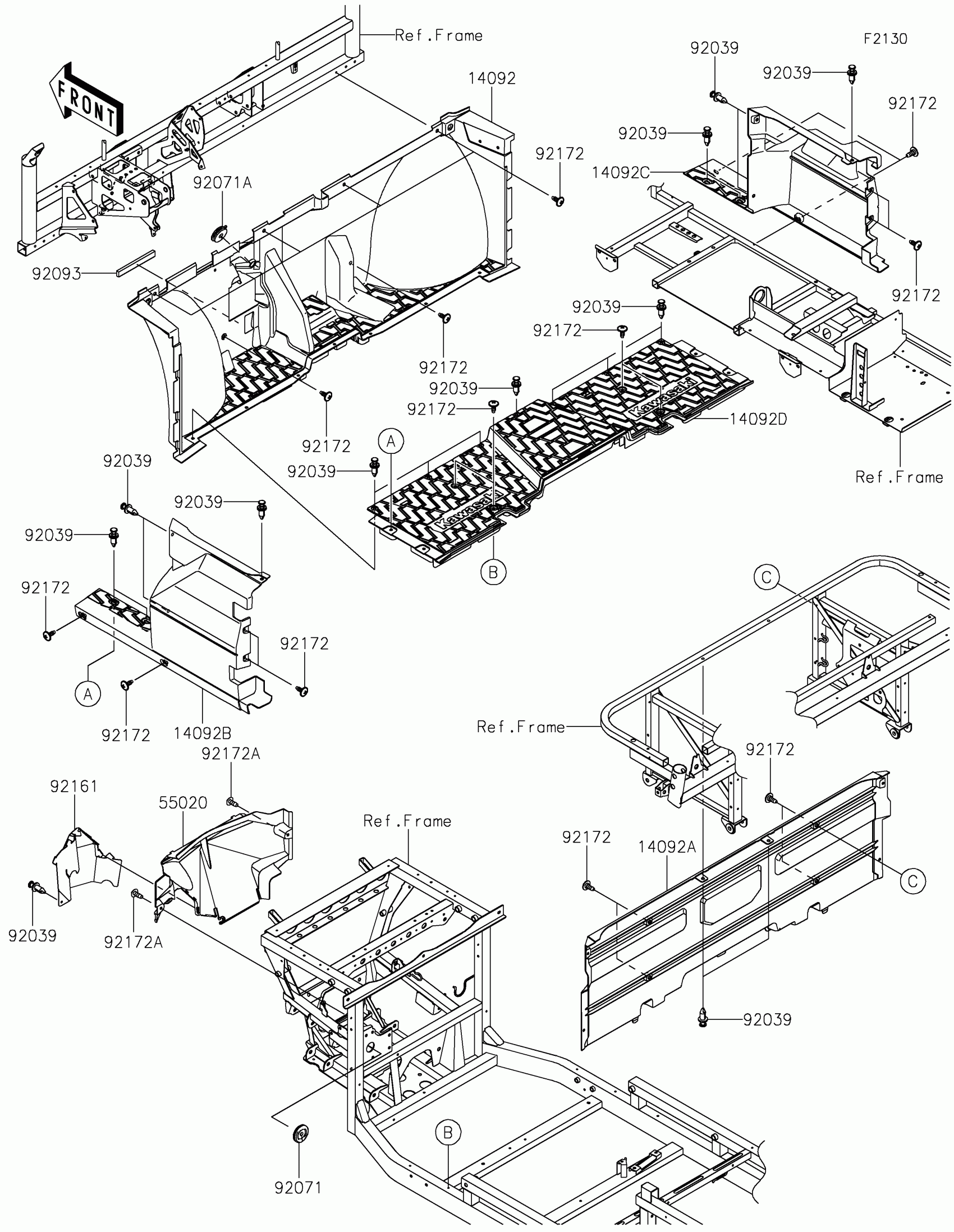

2025 Kawasaki Mule PRO-DXT™ EPS Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14092

COVER,FR FLOOR

14092-1184

1
Out of stock

14092A

COVER,FR SEAT

14092-1185

1
Out of stock

14092B

COVER,SIDE,LH,FR

14092-1188

1
Out of stock

14092C

COVER,SIDE,RH,FR

14092-1189

1
Out of stock

14092D

COVER,FLOOR,BOTTOM

14092-1196

1
Out of stock

55020

GUARD

55020-0961

1

$42.13

In stock

92039

RIVET

92039-0776

1
Out of stock

92071

GROMMET,9X45X9

92071-0728

1
Out of stock

92071A

GROMMET,8X22X8

92071-0753

1
Out of stock

92093

SEAL,10X20X165

92093-0617

1
Out of stock

92161

DAMPER

92161-1649

1

$16.42

In stock

92172

SCREW,6X16

92172-0711

1
Out of stock

92172A

SCREW,TAPPING,6X16

92172-0739

1
Out of stock
