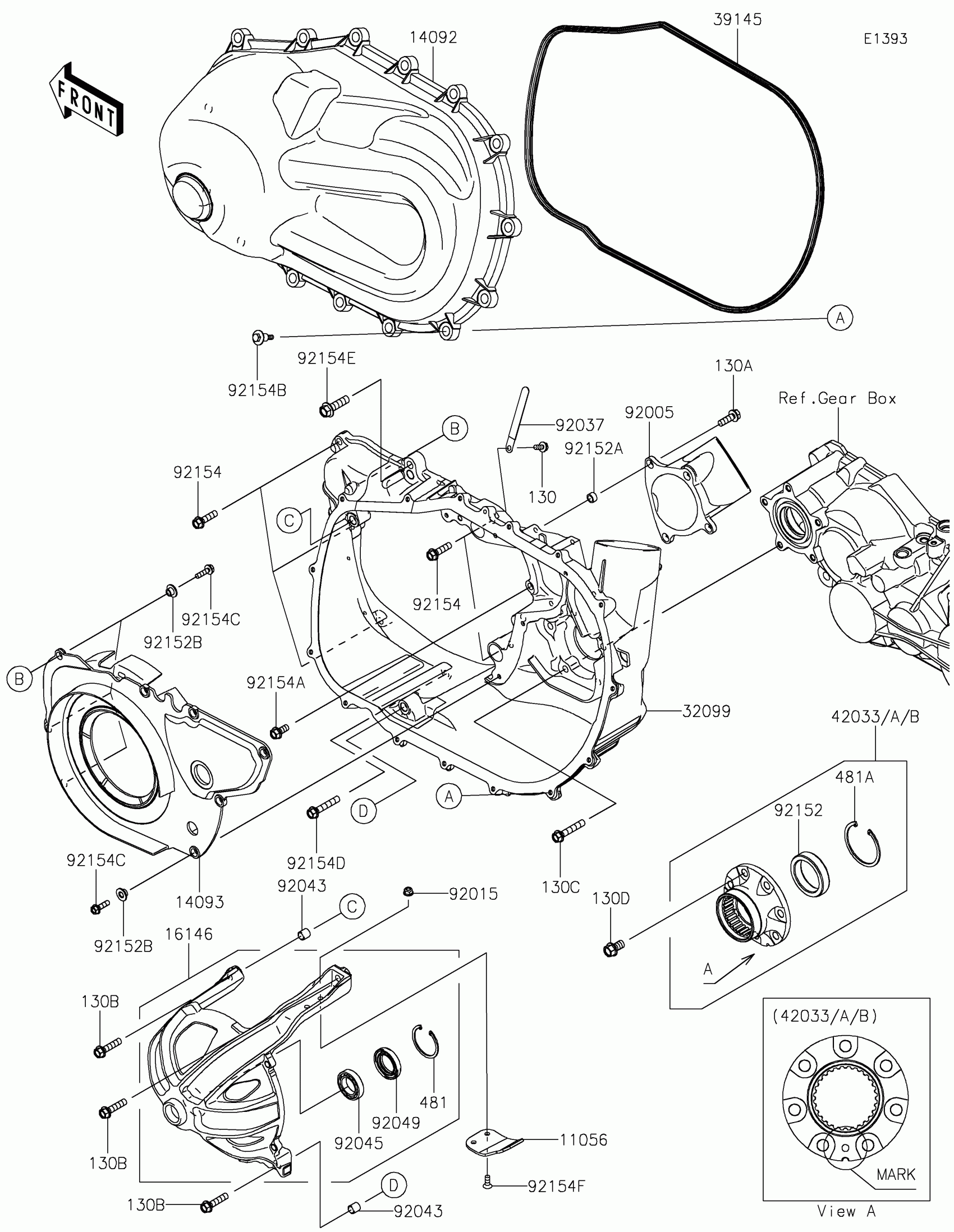

Kawasaki MULE PRO-DXT™ EPS Converter Cover Diagram

#

Description
Price

11056

BRACKET,CVT BELT GUIDE

11056-7883

$8.00

14092

COVER,CVT

14092-1202

$147.54

14093

COVER

14093-0302

$163.78

16146

COVER-ASSY

16146-0791

$114.21

32099

CASE,CVT

32099-0771

$534.00

39145

TRIM-SEAL

39145-0047

$35.76

42033

COUPLING-ASSY,B MARK,WHITE

42033-0582

$113.68

42033A

COUPLING-ASSY,A MARK,BLUE

42033-0583

$130.35

42033B

COUPLING-ASSY,C MARK,YELLOW

42033-0584

$130.35

92005

FITTING,INTAKE

92005-0762

$8.14

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92037

CLAMP

92037-1993

$4.18

92043

PIN,12X14

92043-0963

$4.93

92045

BEARING-BALL,#6905

92045-036

$22.57

92049

SEAL-OIL,HTC 28X45X8

92049-0767

$9.58

92152

COLLAR

92152-1822

$58.31

92152A

COLLAR,8.8X12.3X6.9

92152-1853

$3.19

92152B

COLLAR

92152-1931

$1.69

92154

BOLT,FLANGED,8X30

92154-0850

$1.89

92154A

BOLT,FLANGED,8X18

92154-1386

$1.27

92154B

BOLT,CVT COVER

92154-1522

$2.27

92154C

BOLT,FLANGED,6X22

92154-1525

$1.47

92154D

BOLT,FLANGED,8X45

92154-1526

$1.69

92154E

BOLT,FLANGED,10X35

92154-1744

$4.39

92154F

BOLT,6X16

92154-2147

$1.47

130

BOLT-FLANGED,6X14

130BA0614

$0.97

130A

BOLT-FLANGED,8X25

130BA0825

$2.01

130B

BOLT-FLANGED,8X35

130BA0835

$1.13

130C

BOLT-FLANGED,8X45

130BA0845

$1.39

130D

BOLT-FLANGED,10X18

130CA1018

$2.05

481

CIRCLIP,45MM

481J4500

$1.49

481A

CIRCLIP

481J6200

$8.56
