2025 Kawasaki Mule Pro-DXT™ Eps Drive Shaft-Rear Diagram

← All diagrams

Find the part on the Drive Shaft-Rear diagram for your 2025 Kawasaki Mule Pro-DXT™ Eps, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

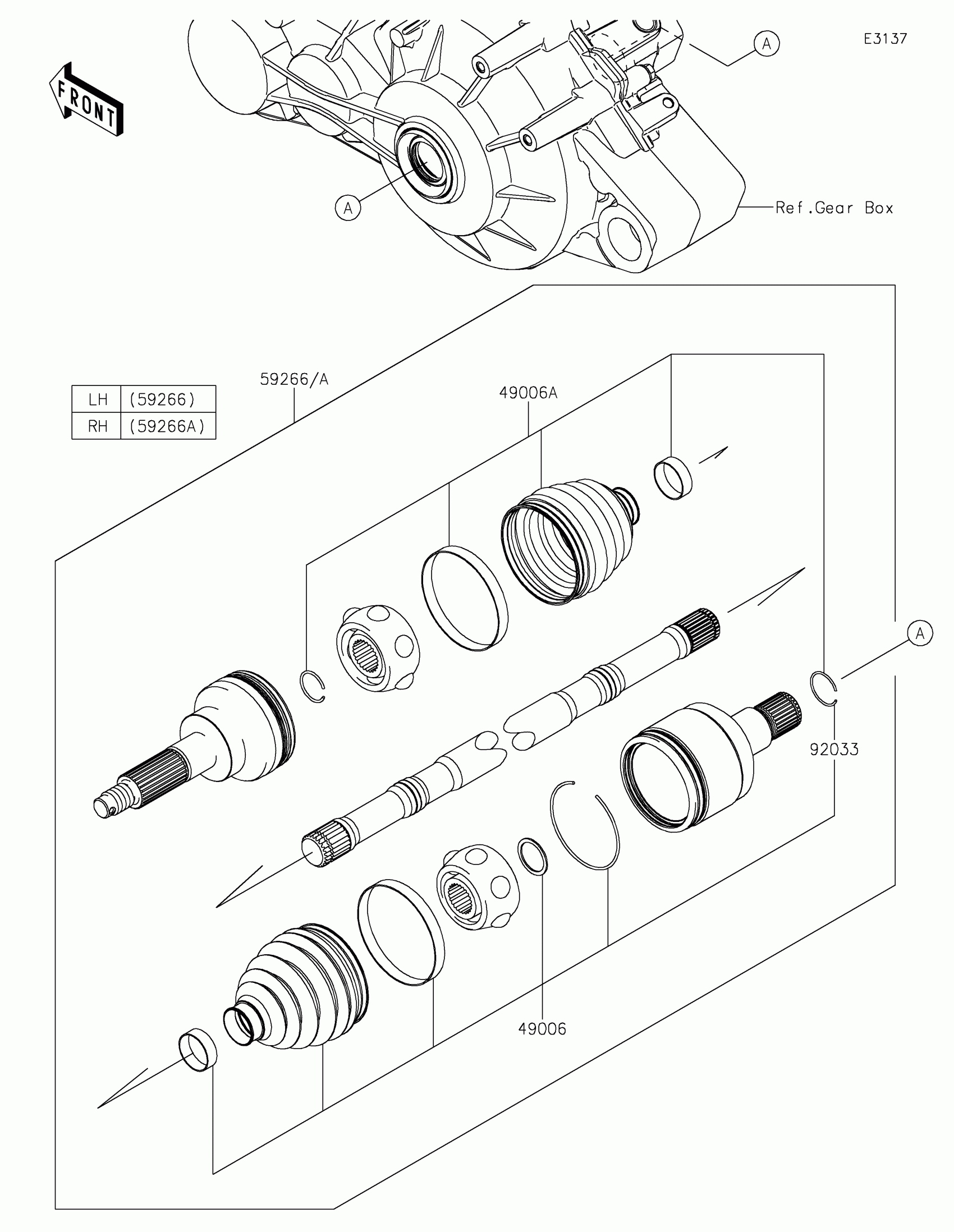

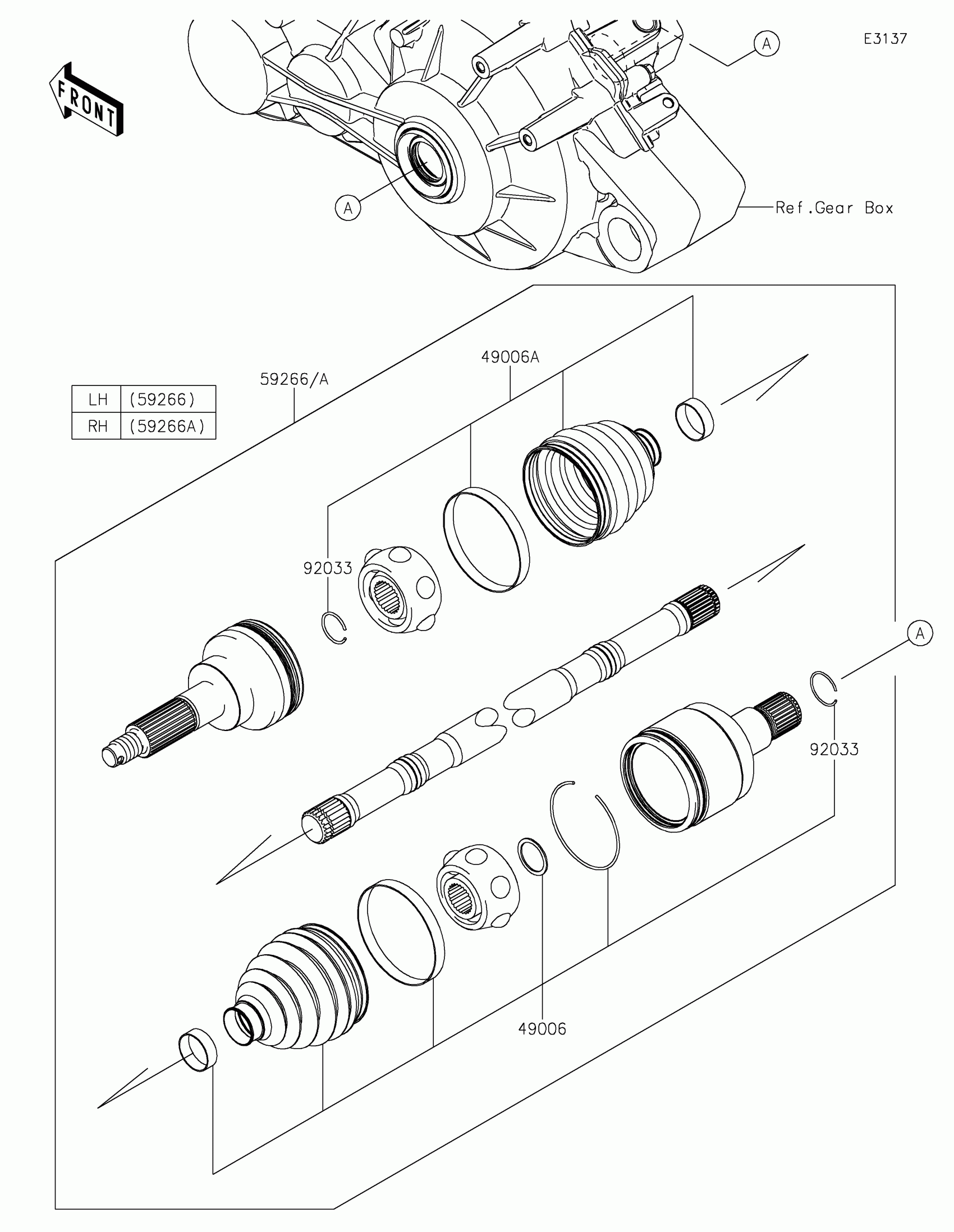

2025 Kawasaki Mule Pro-DXT™ Eps Drive Shaft-Rear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

49006

BOOT,INSIDE

49006-0585

1

$96.79

In stock

49006A

BOOT,OUTSIDE

49006-0586

1

$96.79

In stock

59266

JOINT-BALL,RR,LH

59266-0049

1

$725.15

In stock

59266A

JOINT-BALL,RR,RH

59266-0050

1

$695.76

In stock

92033

RING-SNAP

92033-0838

1

$3.88

In stock
