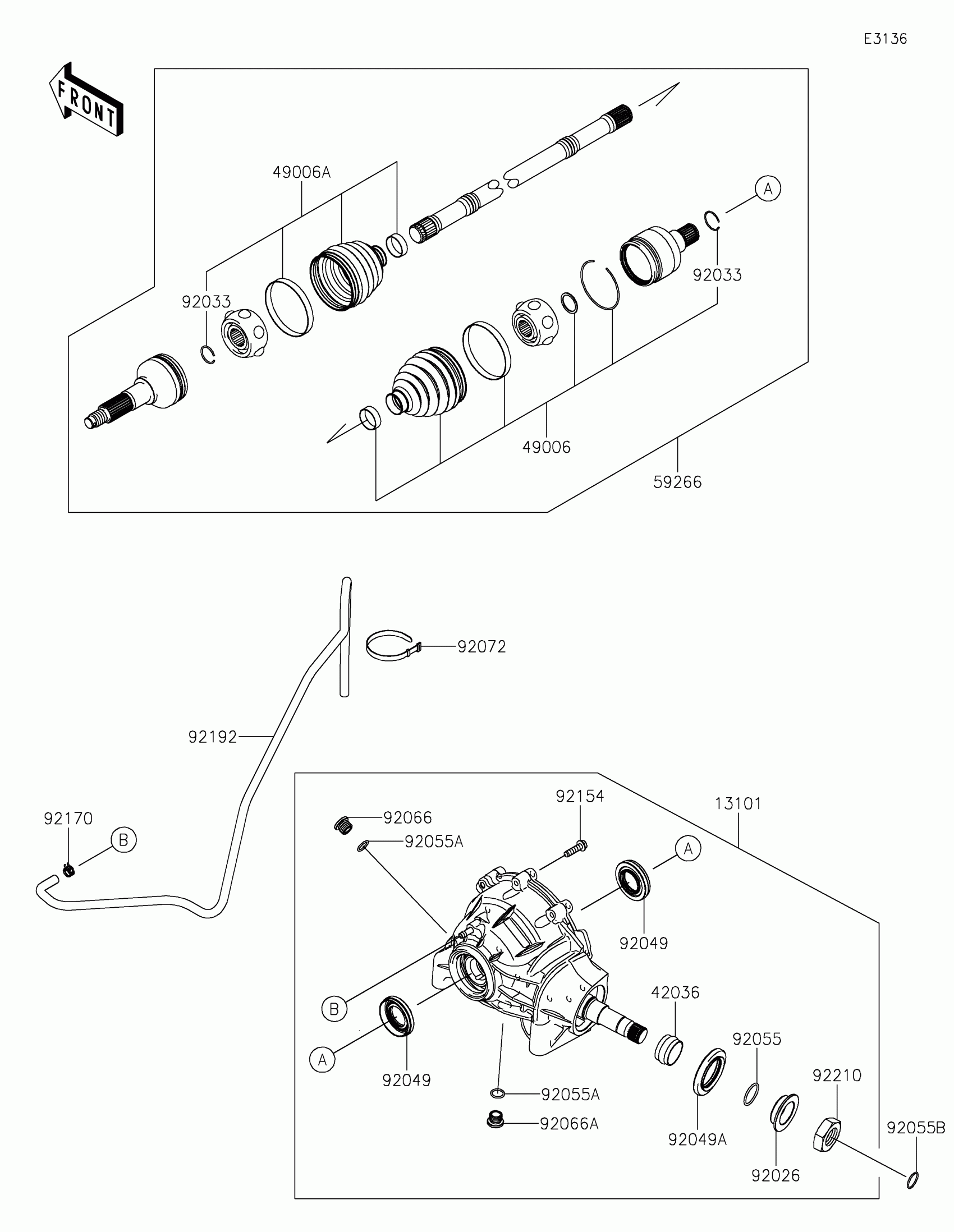

Kawasaki MULE PRO-DXT™ EPS Drive Shaft-Front(BNFNN/BPFNN) Diagram

Description

Price

13101

GEAR-ASSY,FRONT DIFFERENTIAL

13101-0680

$1,605.05

42036

SLEEVE

42036-0741

$13.88

49006

BOOT,INSIDE

49006-0578

$96.79

49006A

BOOT,OUTSIDE

49006-0584

$84.08

59266

JOINT-BALL,FR

59266-0710

$725.15

92026

SPACER

92026-0776

$9.86

92033

RING-SNAP

92033-0837

$4.67

92049

SEAL-OIL,33X60X7

92049-0760

$12.76

92049A

SEAL-OIL,44X72X7

92049-0766

$13.46

92055

RING-O

92055-0788

$3.83

92055A

RING-O,15.3X2.2

92055-0830

$1.95

92055B

RING-O,22.1X1.9

92055-1617

$1.89

92066

PLUG

92066-0777

$12.29

92066A

PLUG

92066-0778

$9.82

92072

BAND,L=186

92072-056

$3.81

92154

BOLT,FLANGED,8X30

92154-1370

$0.92

92170

CLAMP

92170-2082

$0.71

92192

TUBE,BREATHER

92192-1341

$11.15

92210

NUT

92210-0894

$23.61
