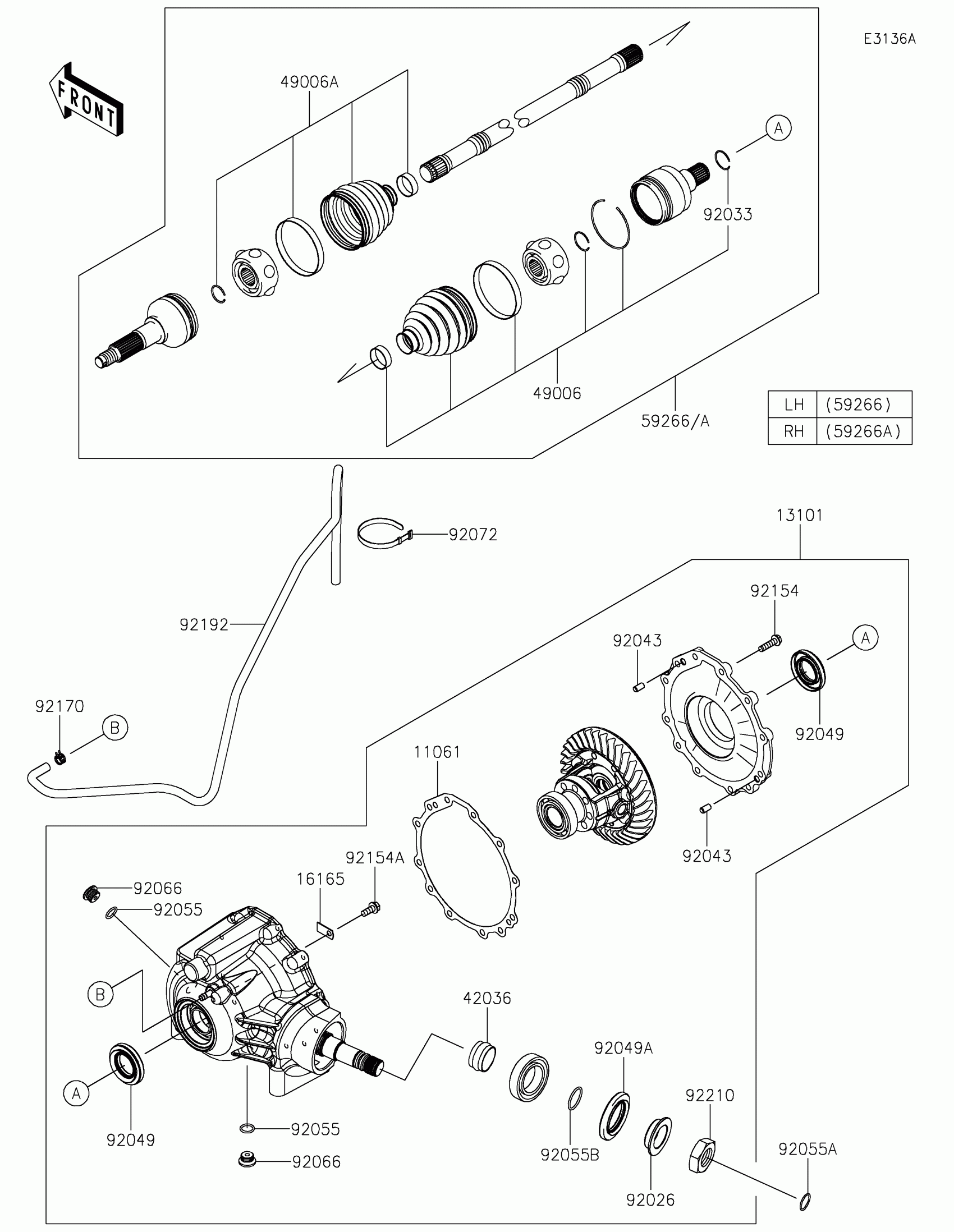

Kawasaki MULE PRO-DXT™ EPS Drive Shaft-Front(BRFNN/BSSNN) Diagram

Description

Price

11061

GASKET,CASE

11061-1413

$21.26

13101

GEAR-ASSY,FRONT DIFFERENTIAL

13101-0687

$1,566.28

16165

SEPARATOR

16165-0019

$6.34

42036

SLEEVE

42036-0873

$19.79

49006

BOOT,INSIDE

49006-0641

$94.97

49006A

BOOT,OUTSIDE

49006-0642

$92.31

59266

JOINT-BALL,FR,LH

59266-0763

$708.92

59266A

JOINT-BALL,FR,RH

59266-0764

$708.92

92026

SPACER

92026-0916

$40.02

92033

RING-SNAP

92033-0849

$22.11

92043

PIN,DOWEL,8X14

92043-1750

$2.45

92049

SEAL-OIL,TC9 35X62X9

92049-0856

$16.84

92049A

SEAL-OIL,TC7 45X72X7

92049-0857

$17.76

92055

RING-O

92055-0862

$2.77

92055A

RING-O,22.1X1.9

92055-1617

$2.67

92055B

RING-O

92055-1719

$4.31

92066

PLUG,M18

92066-0982

$12.94

92072

BAND,L=186

92072-056

$5.00

92154

BOLT,FLANGED,8X30

92154-4354

$7.45

92154A

BOLT,FLANGED,8X16

92154-4355

$3.85

92170

CLAMP

92170-2082

$0.84

92192

TUBE,BREATHER

92192-1341

$11.68

92210

NUT,M30

92210-1884

$25.21
