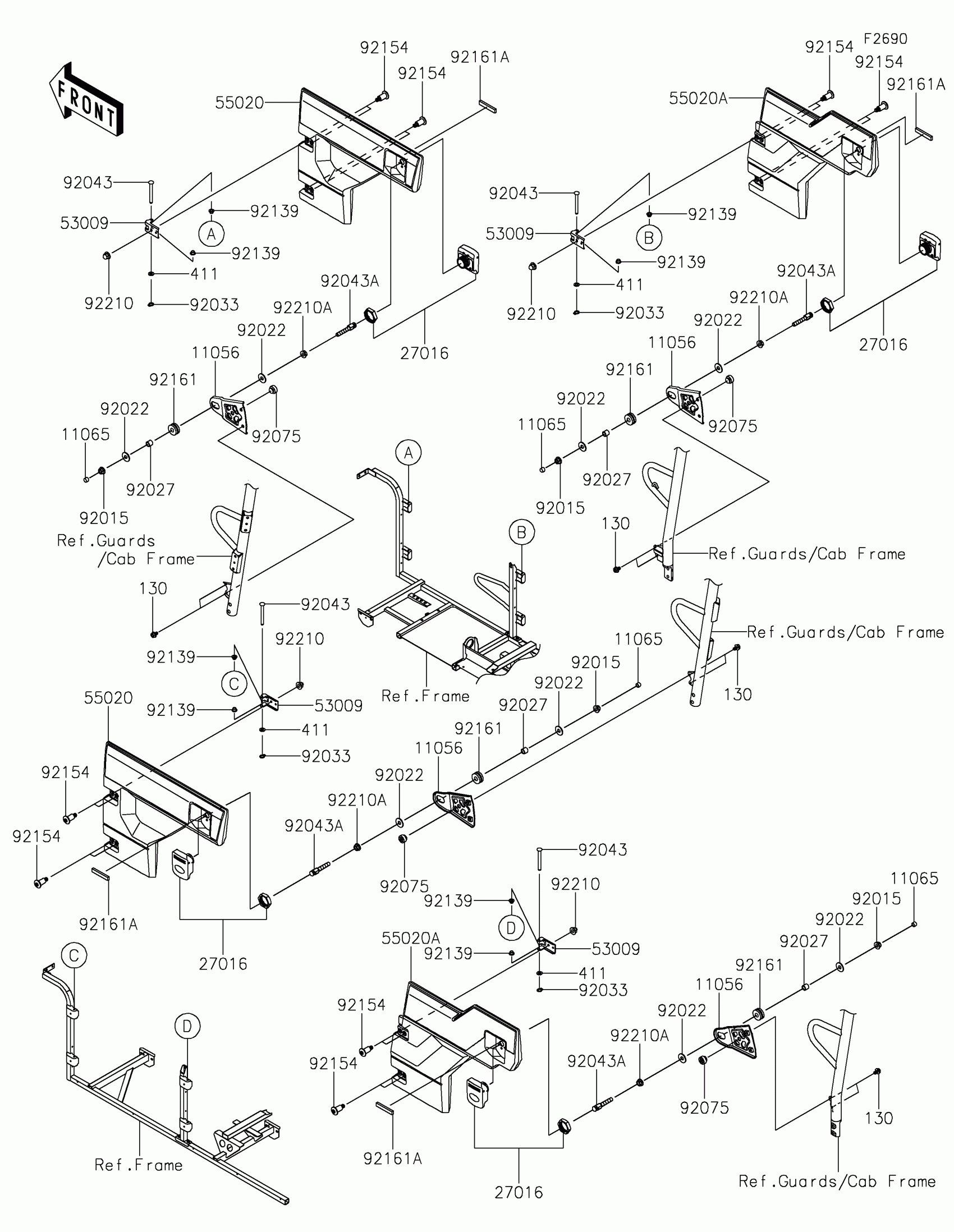

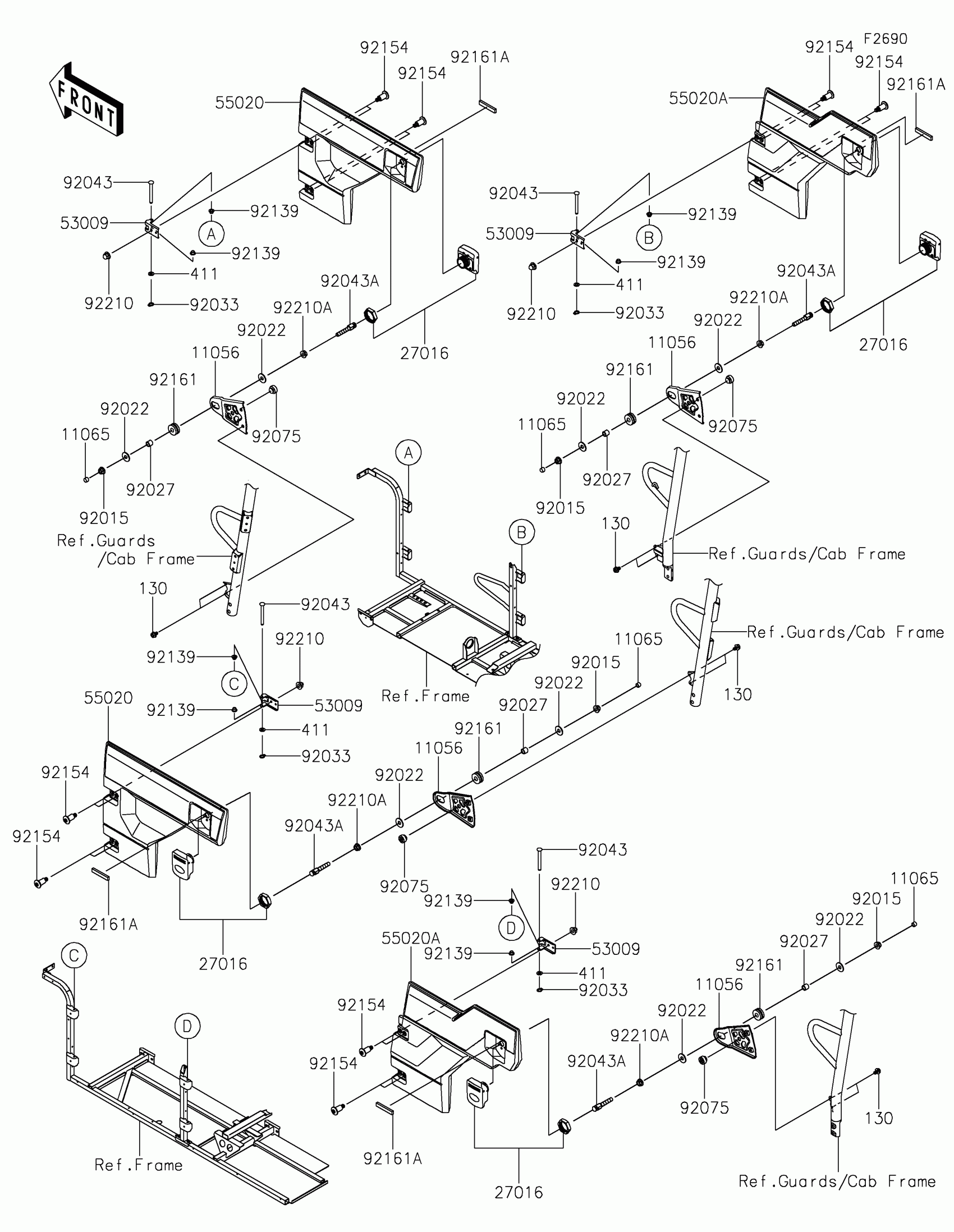

Kawasaki MULE PRO-DXT™ EPS Door Diagram

Description

Price

11056

BRACKET,DOOR GUARD

11056-2856

$8.65

11065

CAP

11065-7504

$1.50

27016

LOCK-ASSY

27016-0084

$78.82

53009

HINGE

53009-0303

$6.27

55020

GUARD,FR,F.BLACK

55020-0936-6Z

$125.11

55020A

GUARD,RR,F.BLACK

55020-0937-6Z

$125.11

92015

NUT,8MM

92015-1432

$6.57

92022

WASHER,PLAIN

92022-3026

$3.60

92027

COLLAR

92027-102

$1.08

92033

RING-SNAP

92033-0719

$0.84

92043

PIN,6X56

92043-0743

$4.10

92043A

PIN,DOOR LOCK

92043-0788

$15.48

92075

DAMPER

92075-1598

$8.58

92139

BUSHING,6X8X6

92139-0709

$2.99

92154

BOLT,SOCKET,8X30

92154-1369

$3.86

92161

DAMPER,10X26X11.5

92161-1691

$1.06

92161A

DAMPER,9X52X5

92161-1837

$1.71

92210

NUT,CAP,8MM

92210-0488

$3.29

92210A

NUT,FLANGED,8MM

92210-0555

$2.03

130

BOLT-FLANGED,6X10

130BA0610

$1.20

411

WASHER-PLAIN,6MM

411AB0600

$1.18
