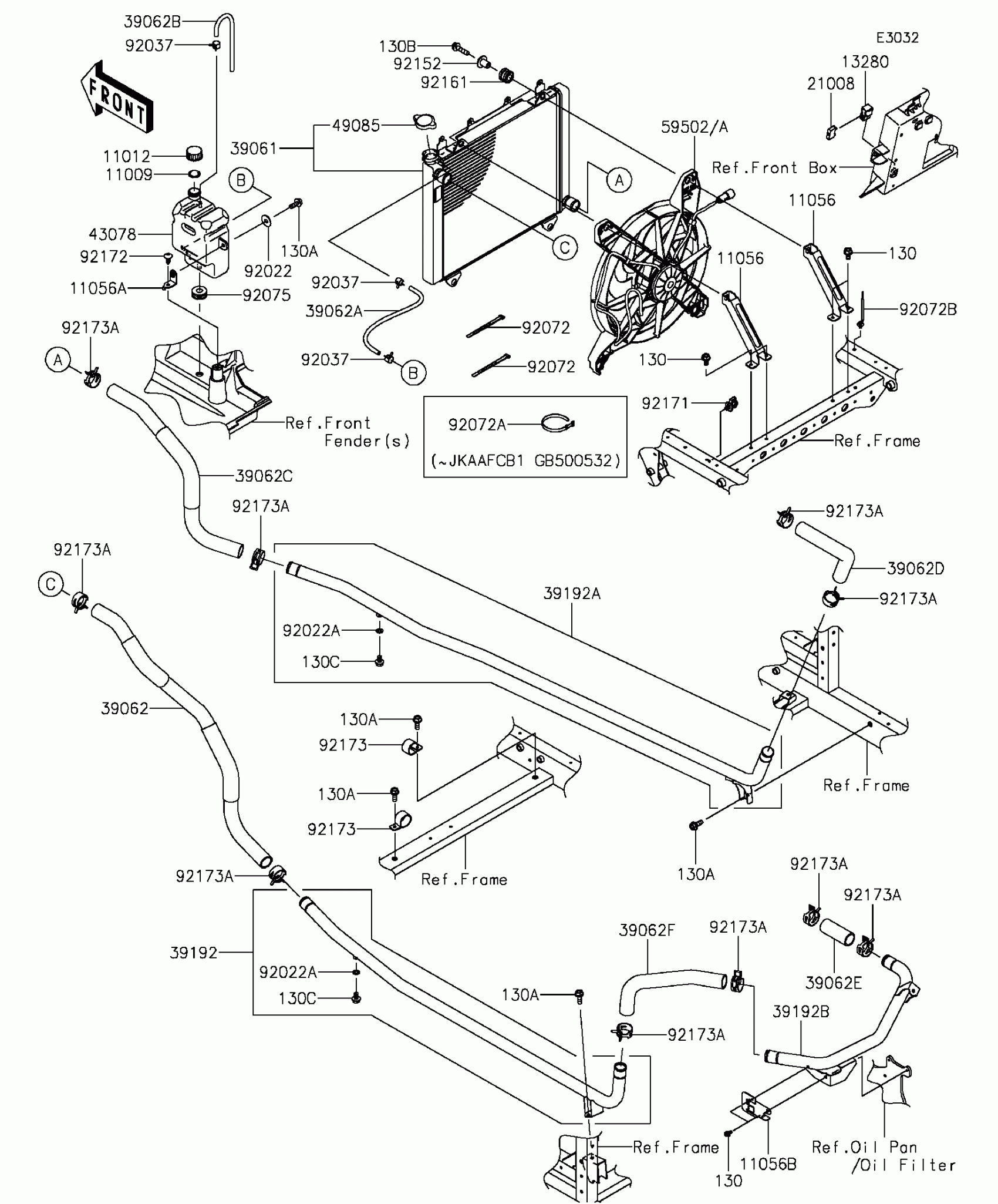

Kawasaki MULE PRO-DXT™ EPS DIESEL Radiator Diagram
#
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
11056
BRACKET,RADIATOR
11056-2833
$18.28
11056A
BRACKET,RESERVOIR
11056-3856
$14.12
11056B
BRACKET,HARNESS
11056-7479
$9.43
130
BOLT-FLANGED,6X12
130BA0612
$1.72
13280
HOLDER,BREAKER
13280-0082
$5.60
21008
BREAKER,RAD. FAN,20A
21008-0554
$28.27
39061
RADIATOR-ASSY
39061-0706
$479.59
39062
HOSE-COOLING,RADIATOR IN
39062-0650
$85.01
39062A
HOSE-COOLING,RAD.-RESERVOIR
39062-0657
$5.92
39062B
HOSE-COOLING,OVER FLOW
39062-0696
$6.46
39062C
HOSE-COOLING,RADIATOR OUT
39062-0697
$66.37
39062D
HOSE-COOLING,ENGINE IN
39062-0713
$37.67
39062E
HOSE-COOLING,ENGINE OUT
39062-0714
$14.00
39062F
HOSE-COOLING,ENGINE OUT
39062-0715
$30.79
39192
PIPE-WATER,LH
39192-0575
$68.74
39192A
PIPE-WATER,RH
39192-0591
$68.75
39192B
PIPE-WATER,CNT
39192-0593
$36.77
43078
RESERVOIR
43078-0571
$39.23
49085
CAP-ASSY-PRESSURE
49085-0005
$45.60
59502
FAN-ASSY
59502-0566
Unavailable
59502A
FAN-ASSY
59502-0609
$386.90
92022
WASHER,PLAIN,6.5X20X1
92022-165
$3.74
92022A
WASHER,6.2X11X1
92022-304
$3.65
92037
CLAMP,TUBE
92037-1461
$3.88
92072
BAND,L=123
92072-030
$5.00
92072A
BAND,L=186
92072-056
$5.00
92072B
BAND,OS170-FT7(BLACK)
92072-1414
$3.74
92075
DAMPER
92075-1185
$4.69
92152
COLLAR
92152-1512
$8.56
92161
DAMPER
92161-1349
$4.68
92171
CLAMP
92171-0453
$3.54
92172
SCREW,6X16
92172-0284
$1.34
92173
CLAMP
92173-1204
$3.86
92173A
CLAMP,28.6MM
92173-1205
$4.92
130A
BOLT-FLANGED,6X16
130BA0616
$1.20
130B
BOLT-FLANGED,6X25
130BA0625
$1.20
130C
BOLT-FLANGED,6X10
130BB0610
$2.49
