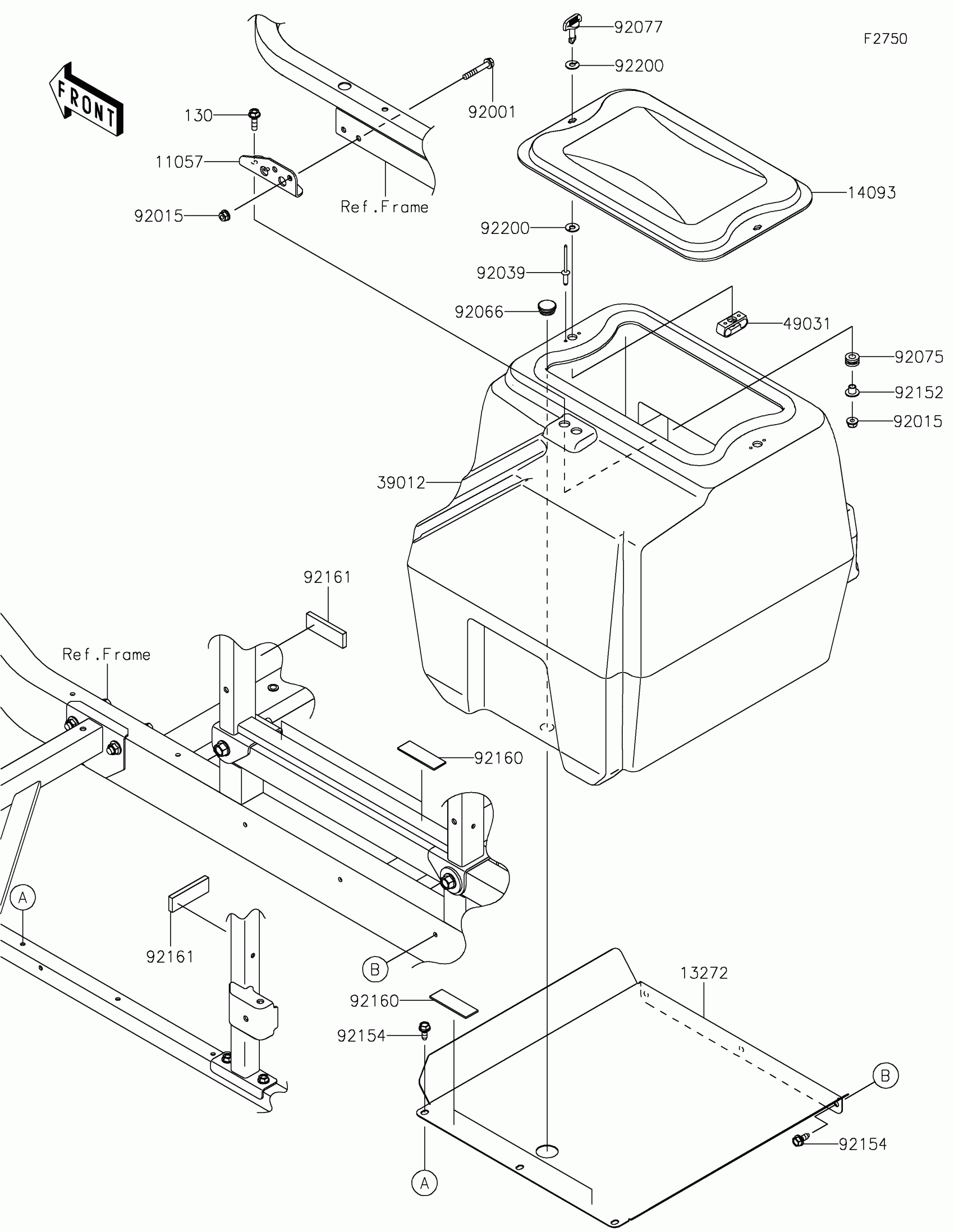

Kawasaki MULE PRO-DXT™ EPS DIESEL Other(BJF-BLF) Diagram

Description

Price

11057

BRACKET,TUB MOUNT

11057-1503

$3.35

130

BOLT-FLANGED,6X20

130BA0620

$1.74

13272

PLATE,FLOOR BOTTOM

13272-2205

$58.93

14093

COVER,STORAGE BOX

14093-0523

$10.15

39012

CASE-STORAGE

39012-0046

$73.28

49031

LATCH

49031-0008

$1.78

92001

BOLT,FLANGED,6X38

92001-1105

$4.69

92015

NUT,LOCK,FLANGED,6MM

92015-1603

$4.69

92039

RIVET,3.2X9.5

92039-0785

$2.44

92066

PLUG

92066-1306

$5.46

92075

DAMPER

92075-1912

$5.77

92077

KNOB

92077-0030

$3.04

92152

COLLAR,6.3X8.3X9.2

92152-0237

$5.65

92154

BOLT,6X15.6

92154-1250

$0.82

92160

DAMPER

92160-1075

$6.57

92161

DAMPER,20X60X6

92161-1874

$1.69

92200

WASHER

92200-0503

$2.55
