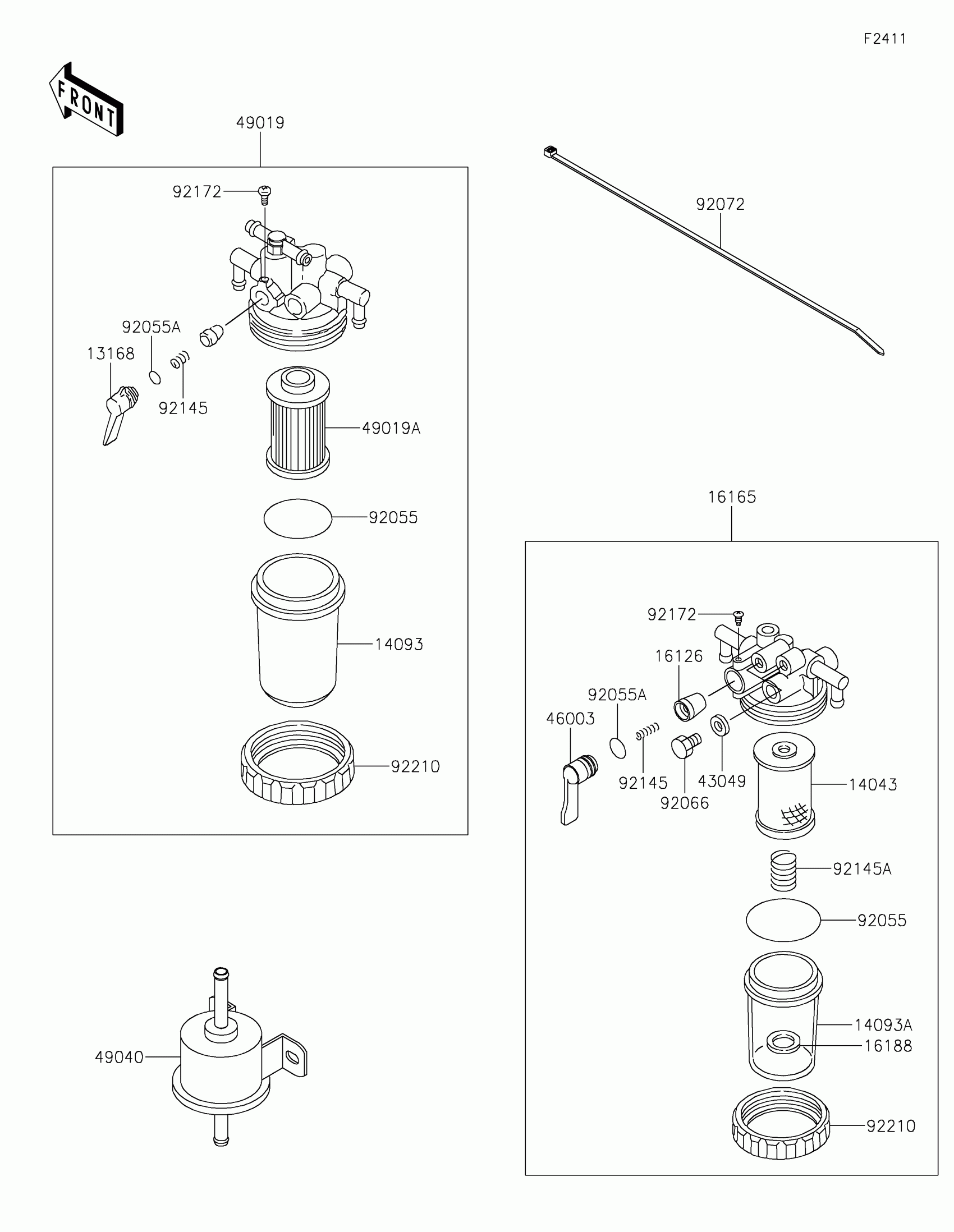

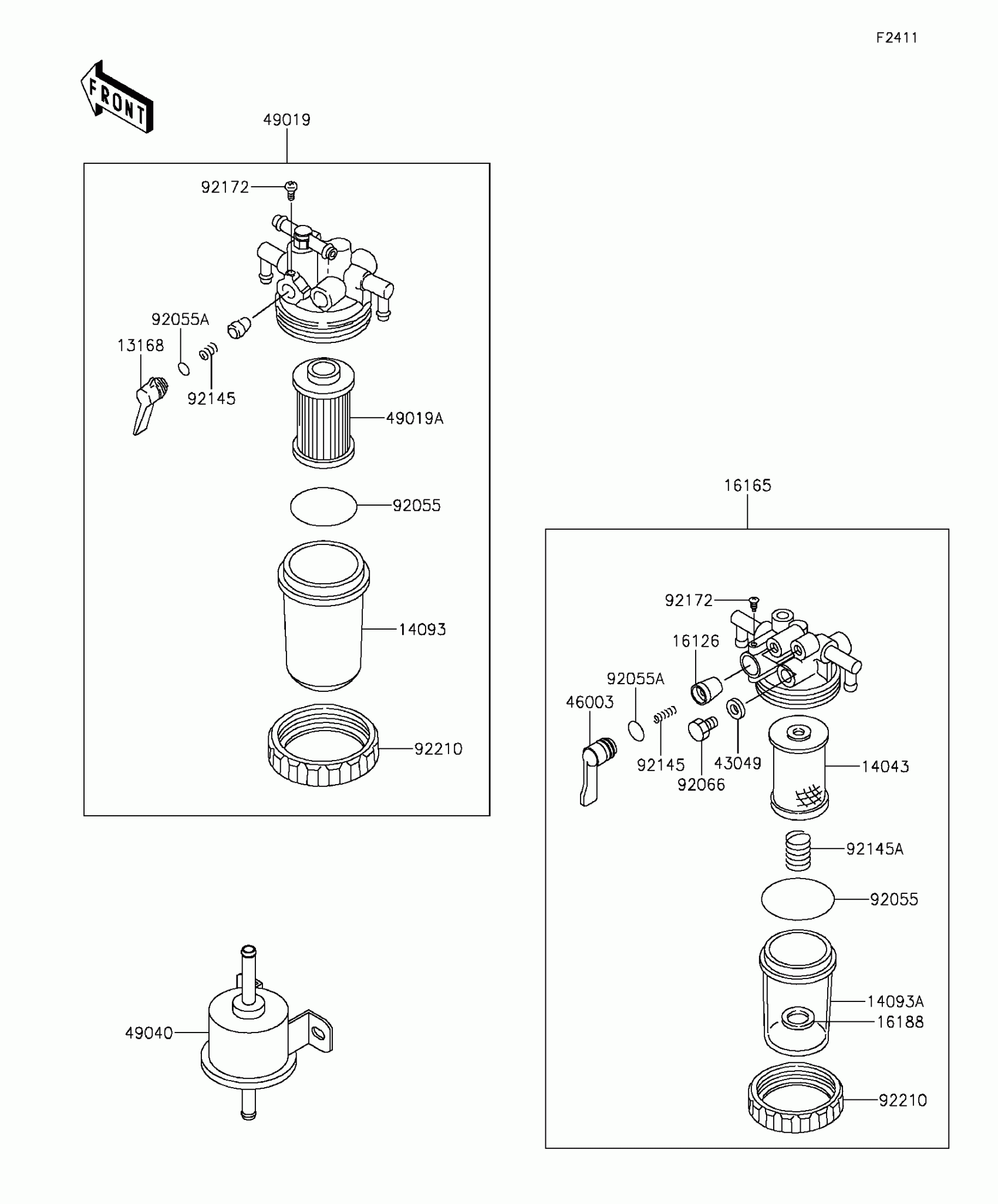

Kawasaki MULE PRO-DXT™ EPS DIESEL Fuel Filter Diagram

Description

Price

13168

LEVER

13168-0845

$10.96

14043

FILTER

14043-0018

$26.20

14093

COVER

14093-0452

$29.02

14093A

COVER

14093-0453

$29.34

16126

VALVE

16126-0738

$15.16

16165

SEPARATOR,WATER

16165-0012

$127.52

16188

FLOAT

16188-0038

$4.96

43049

PACKING,6X1

43049-0046

$2.47

46003

HANDLE

46003-0665

$14.12

49019

FILTER-FUEL

49019-0020

$111.59

49019A

FILTER-FUEL,ELEMENT

49019-0026

$13.10

49040

PUMP-FUEL

49040-0747

$256.00

92055

RING-O

92055-0864

$6.05

92055A

RING-O

92055-0865

$2.92

92066

PLUG

92066-0856

$6.00

92145

SPRING,VALVE

92145-1718

$4.11

92145A

SPRING

92145-1719

$4.74

92172

SCREW

92172-0992

$5.00

92210

NUT,FILTER

92210-1494

$11.05
