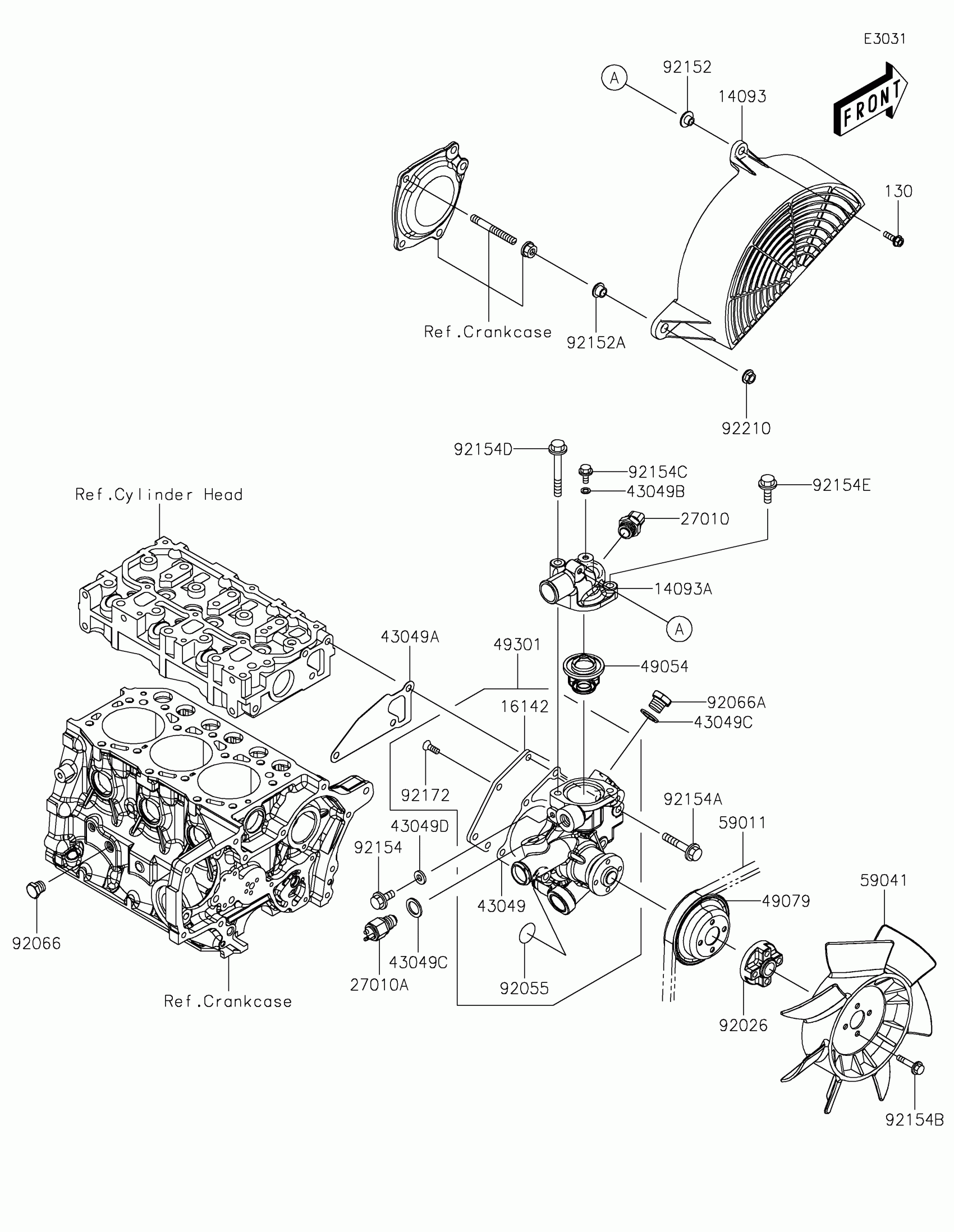

Kawasaki MULE PRO-DXT™ EPS DIESEL FE Water Pump Diagram

Description

Price

130

BOLT-FLANGED,6X20

130BA0620

$1.74

14093

COVER,FAN

14093-0297

$11.62

14093A

COVER,THERMOSTAT

14093-0446

$81.25

16142

COVER-PUMP

16142-0736

$25.96

27010

SWITCH,THERMOSTAT

27010-0839

$55.96

27010A

SWITCH,THERMO

27010-0840

$36.12

43049

PACKING,WATER PUMP

43049-0040

$11.19

43049A

PACKING,WATER PUMP

43049-0041

$17.25

43049B

PACKING,6X1

43049-0042

$2.47

43049C

PACKING

43049-0043

$3.91

43049D

PACKING,8X1

43049-0047

$2.47

49054

THERMOSTAT

49054-0008

$54.75

49079

PULLEY-BELT

49079-0027

$72.31

49301

PUMP-ASSY-WATER

49301-0003

$367.68

59011

BELT,A35

59011-0045

$23.77

59041

FAN,COOLING

59041-0015

$243.28

92026

SPACER

92026-0820

$30.08

92055

RING-O

92055-0858

$5.61

92066

PLUG,DRAIN

92066-0853

$32.67

92066A

PLUG

92066-0854

$10.46

92152

COLLAR

92152-0181

$4.60

92152A

COLLAR

92152-0613

$5.65

92154

BOLT,FLANGED,8X12

92154-1999

$2.49

92154A

BOLT,FLANGED,8X45

92154-2000

$2.92

92154B

BOLT,FLANGED,6X30

92154-2067

$2.03

92154C

BOLT,FLANGED,6X10

92154-2068

$2.03

92154D

BOLT,FLANGED,8X65

92154-2070

$2.92

92154E

BOLT,FLANGED,8X28

92154-2110

$2.49

92172

SCREW,6X12

92172-0987

$2.03

92210

NUT,FLANGED,8MM

92210-0555

$2.03
