2021 Kawasaki Mule Pro-DXT™ Eps Diesel Fe Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2021 Kawasaki Mule Pro-DXT™ Eps Diesel Fe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

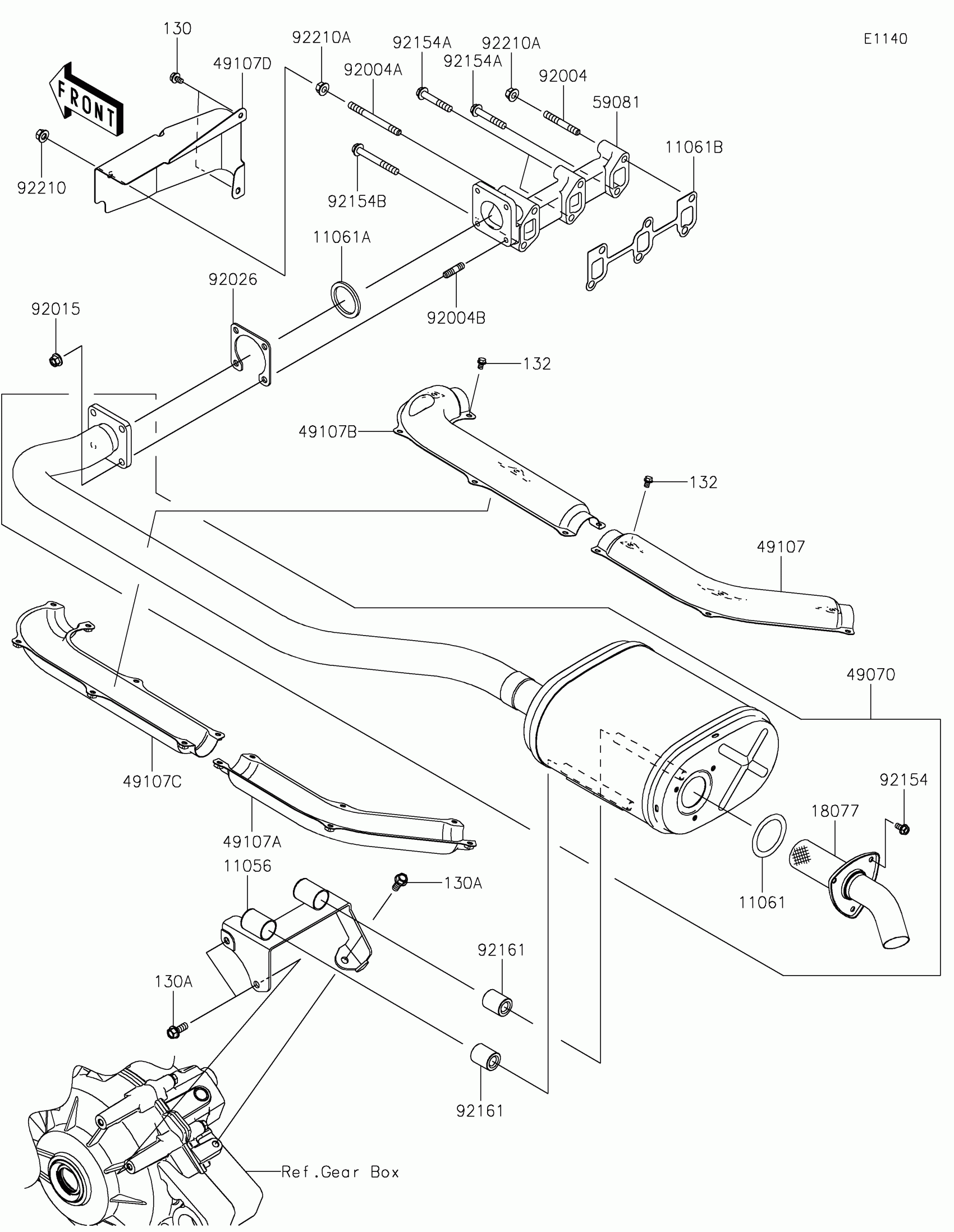

2021 Kawasaki Mule Pro-DXT™ Eps Diesel Fe Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

1

$31.32

In stock

11061

GASKET,EXHAUST PIPE

11061-0013

1

$12.23

In stock

11061A

1

$7.88

In stock

11061B

1

$14.46

In stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,8X20

130BA0820

1

$3.27

In stock

132

1

$2.71

In stock

18077

ARRESTER-SPARK

18077-0040

1

$172.15

In stock

49070

MUFFLER-COMP

49070-0844

1

$465.12

In stock

49107

1

$19.90

In stock

49107A

1

$28.94

In stock

49107B

1

$24.15

In stock

49107C

1

$30.19

In stock

49107D

COVER-EXHAUST PIPE

49107-0786

1

$37.25

In stock

59081

MANIFOLD-EXHAUST

59081-0295

1

$346.19

In stock

92004

STUD,8X50

92004-0746

1
Out of stock

92004A

STUD,8X80

92004-0747

1
Out of stock

92004B

STUD,8X22

92004-0748

1
Out of stock

92015

NUT,8MM

92015-1402

1

$3.72

In stock

92026

SPACER

92026-0817

1
Out of stock

92154

BOLT,FLANGED,6X12

92154-0852

1

$1.10

In stock

92154A

BOLT,FLANGED,8X50

92154-1990

1

$5.63

In stock

92154B

BOLT,FLANGED,8X71

92154-1991

1

$9.20

In stock

92161

DAMPER

92161-0961

1

$22.49

In stock

92210

NUT,8MM

92210-1456

1
Out of stock

92210A

NUT,8MM

92210-1473

1
Out of stock
