2021 Kawasaki Mule PRO-DXT™ EPS Diesel FE Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2021 Kawasaki Mule PRO-DXT™ EPS Diesel FE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

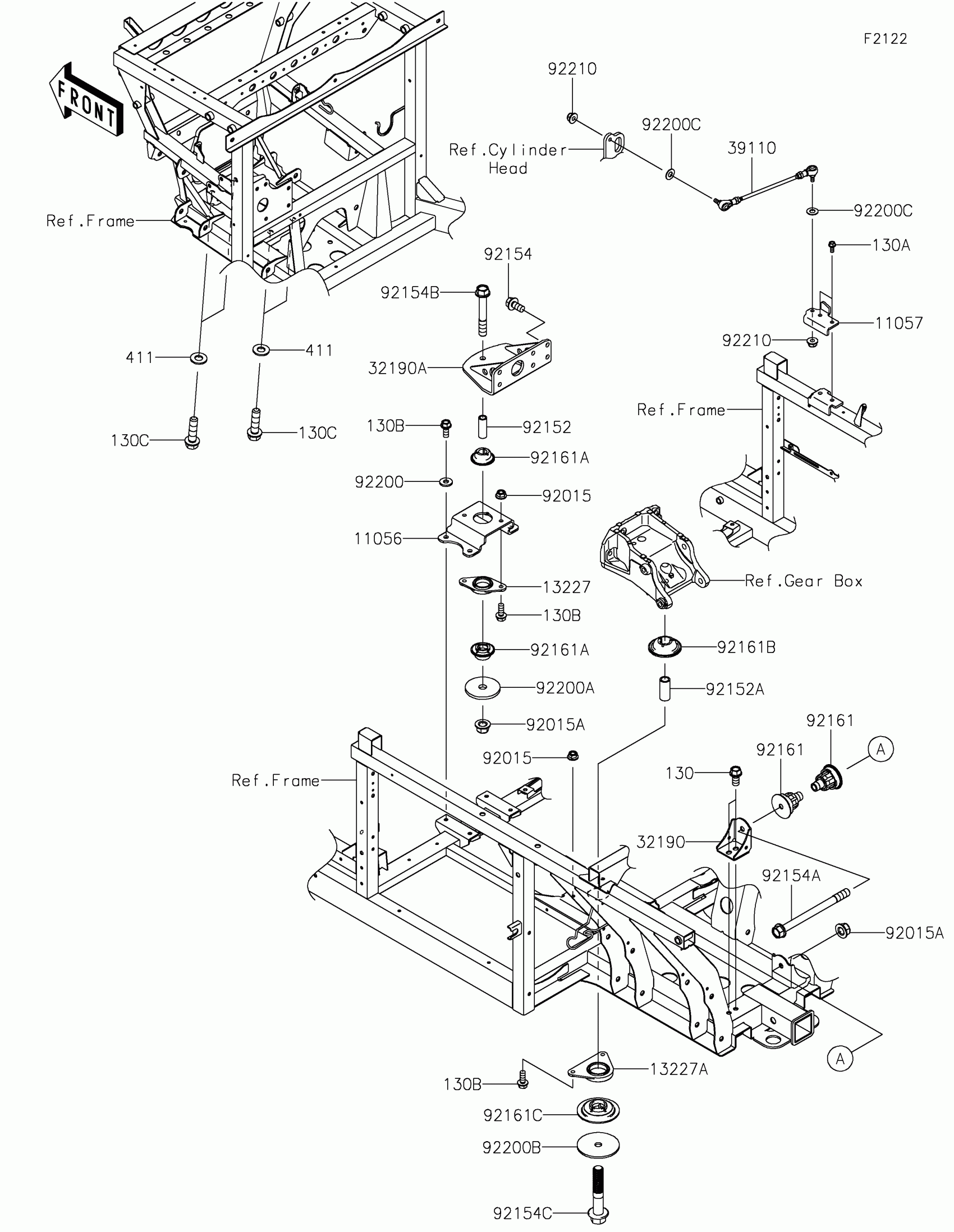

2021 Kawasaki Mule PRO-DXT™ EPS Diesel FE Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-7475

1
Out of stock

11057

BRACKET,TORQUE ROD

11057-2696

1
Out of stock

130

BOLT-FLANGED,10X20

130BA1020

1

$2.68

In stock

130A

BOLT-FLANGED,8X18

130CA0818

1

$2.10

In stock

130B

BOLT-FLANGED,8X20

130CA0820

1

$1.47

In stock

130C

BOLT-FLANGED,12X45

130CA1245

1

$2.25

In stock

13227

HOUSING

13227-0031

1
Out of stock

13227A

HOUSING

13227-0032

1
Out of stock

32190

BRACKET-ENGINE

32190-0662

1
Out of stock

32190A

BRACKET-ENGINE,FR

32190-0701

1
Out of stock

39110

ROD-ASSY-TIE

39110-0050

1
Out of stock

411

WASHER-PLAIN,12MM

411AA1200

1
Out of stock

92015

NUT,LOCK,FLANGED,8MM

92015-1397

1
Out of stock

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

1
Out of stock

92152

COLLAR,13X19.1X54

92152-1802

1
Out of stock

92152A

COLLAR,17X23.8X54.5

92152-2127

1
Out of stock

92154

BOLT,FLANGED,10X20

92154-1321

1
Out of stock

92154A

BOLT,FLANGED,12X150

92154-1322

1
Out of stock

92154B

BOLT,FLANGED,12X80

92154-1419

1
Out of stock

92154C

BOLT,FLANGED,16X86

92154-1763

1
Out of stock

92161

DAMPER

92161-1616

1

$36.13

In stock

92161A

DAMPER

92161-1617

1

$20.58

In stock

92161B

DAMPER

92161-1618

1

$35.65

In stock

92161C

DAMPER

92161-1619

1

$57.52

In stock

92200

WASHER,8.2X20.0X2.5

92200-0205

1
Out of stock

92200A

WASHER,12.5X55X4.76

92200-0913

1
Out of stock

92200B

WASHER,16.5X100X4.76

92200-1747

1
Out of stock

92200C

WASHER,8.5X18X1

92200-2284

1
Out of stock

92210

NUT,FLANGED,LOCK,8MM

92210-0493

1
Out of stock
