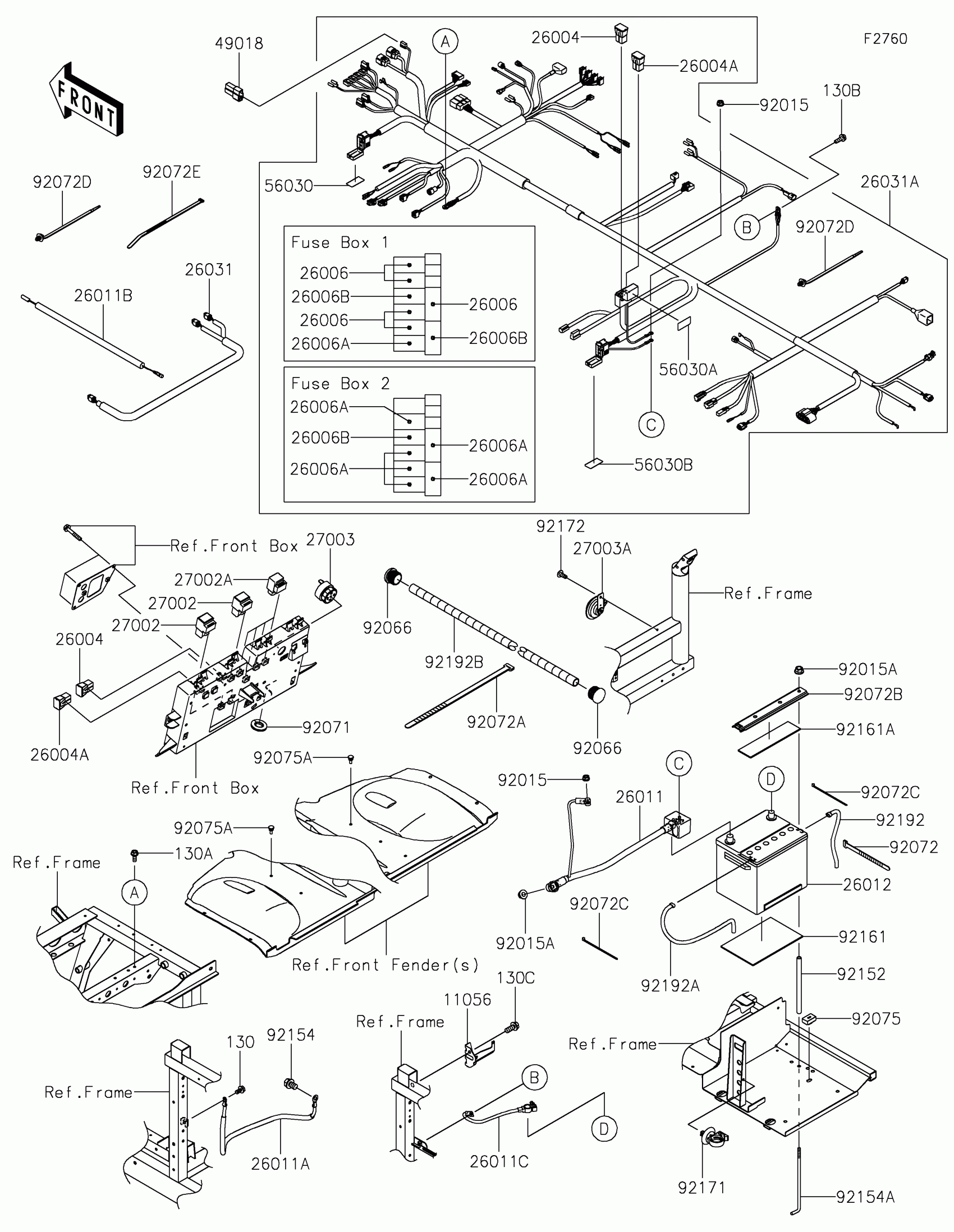

Kawasaki MULE PRO-DXT™ EPS DIESEL FE Chassis Electrical Equipment Diagram

#

Description
Price

11056

BRACKET,FUSE

11056-7478

$7.92

26004

FUSE-ASSY,60A

26004-0024

$4.82

26004A

FUSE-ASSY,40A

26004-1093

$4.11

26006

FUSE,MINI BLADE,10A,RED

26006-0009

Unavailable

26006A

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26006B

FUSE,MINI BLADE,20A,YELLOW

26006-3704

$5.24

26011

WIRE-LEAD,BATTERY(+)

26011-0904

$62.07

26011A

WIRE-LEAD,ENGINE GND

26011-0905

$19.60

26011B

WIRE-LEAD,OIL PRESSURE SW.

26011-0906

$7.07

26011C

WIRE-LEAD,BATTERY(-)

26011-0912

$44.80

26012

BATTERY,WET,(26R)

26012-7501

Unavailable

26031

HARNESS,SUB

26031-2226

$84.03

26031A

HARNESS,MAIN

26031-2828

$731.70

27002

RELAY-ASSY

27002-0012

$42.21

27002A

RELAY-ASSY

27002-1062

$45.39

27003

HORN,PARKING BUZZER

27003-0116

$28.64

27003A

HORN

27003-1330

$64.25

49018

DIODE

49018-0006

$13.43

56030

LABEL,FUSE BOX1

56030-0917

$2.94

56030A

LABEL,FUSE BOX3

56030-0918

$2.94

56030B

LABEL,FUSE BOX2

56030-0919

$2.94

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,FLANGED,8MM

92015-1406

$4.45

92066

PLUG

92066-0908

$0.98

92071

GROMMET,22X45X9

92071-0729

$2.15

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=218

92072-032

$5.00

92072B

BAND

92072-0767

$9.90

92072C

BAND,92X2.4

92072-0791

$0.42

92072D

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92072E

BAND,L=292.1

92072-3509

Unavailable

92075

DAMPER

92075-099

$5.52

92075A

DAMPER,6X10X15

92075-1808

$1.39

92152

COLLAR,9.4X12.7X190.8

92152-1852

$8.18

92154

BOLT,FLANGED,10X14

92154-1383

$1.71

92154A

BOLT,BATTERY

92154-1650

$11.00

92161

DAMPER

92161-0578

$4.25

92161A

DAMPER

92161-1753

$7.61

92171

CLAMP

92171-0453

$3.54

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X16

130BA0616

$1.20

130B

BOLT-FLANGED,6X18

130BA0618

$1.54

130C

BOLT-FLANGED,8X20

130BA0820

$4.14

92192

TUBE,BREATHER,7X10X240

92192-1646

$3.90

92192A

TUBE,BREATHER,7X10X450

92192-1694

$8.13

92192B

TUBE,CONVOLUTED

92192-1814

$29.07
