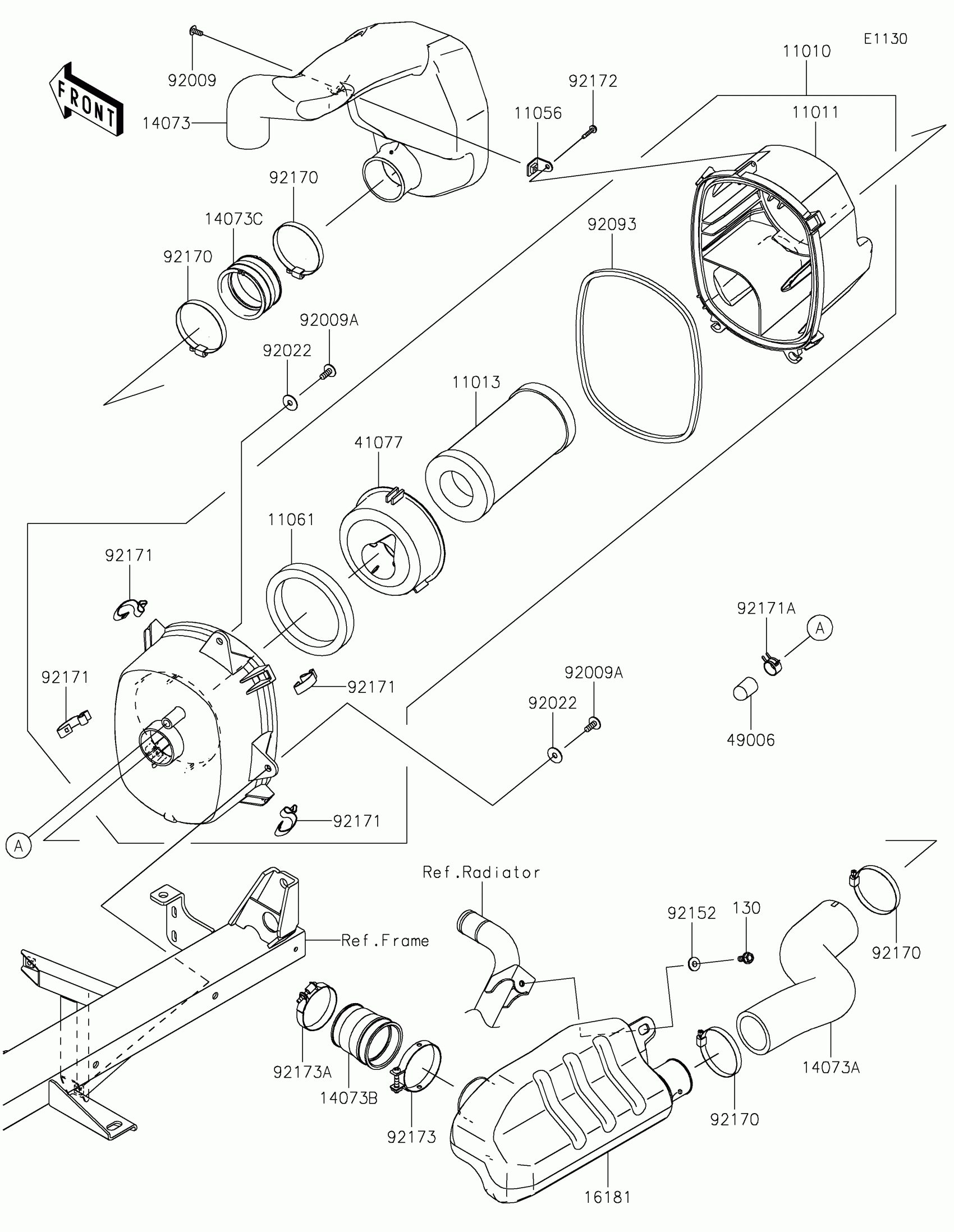

Kawasaki MULE PRO-DXT™ EPS DIESEL FE Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0860

$134.73

11011

CASE-AIR FILTER,UPP

11011-0857

$31.09

11013

ELEMENT-AIR FILTER

11013-1290

$28.98

11056

BRACKET,AIR FILTER

11056-3734

$4.36

11061

GASKET,ADAPTER

11061-0961

$10.99

130

BOLT-FLANGED,6X14

130BA0614

$1.20

14073

DUCT,INTAKE

14073-0815

$36.82

14073A

DUCT,AIR CLEANER-RESONATOR

14073-0816

$29.09

14073B

DUCT,FUNNEL

14073-0817

$9.62

14073C

DUCT,JOINT

14073-1775

$4.36

16181

TANK-RESONATOR

16181-0018

$80.64

41077

ADAPTER,ELEMENT

41077-0719

$26.37

49006

BOOT

49006-0555

$5.30

92009

SCREW,5X12

92009-1154

$3.57

92009A

SCREW,6X16

92009-1621

Unavailable

92022

WASHER,PLAIN,6.5X20X1

92022-165

$3.74

92093

SEAL,AIR FILTER

92093-0607

$7.87

92152

COLLAR,6.5X10X5.6

92152-0445

$4.92

92170

CLAMP

92170-1764

$11.48

92171

CLAMP

92171-0225

$1.97

92171A

CLAMP

92171-0533

$3.39

92172

SCREW,TAPPING,5X20

92172-0009

$2.80

92173

CLAMP

92173-1536

$12.29

92173A

CLAMP

92173-1537

$12.35
