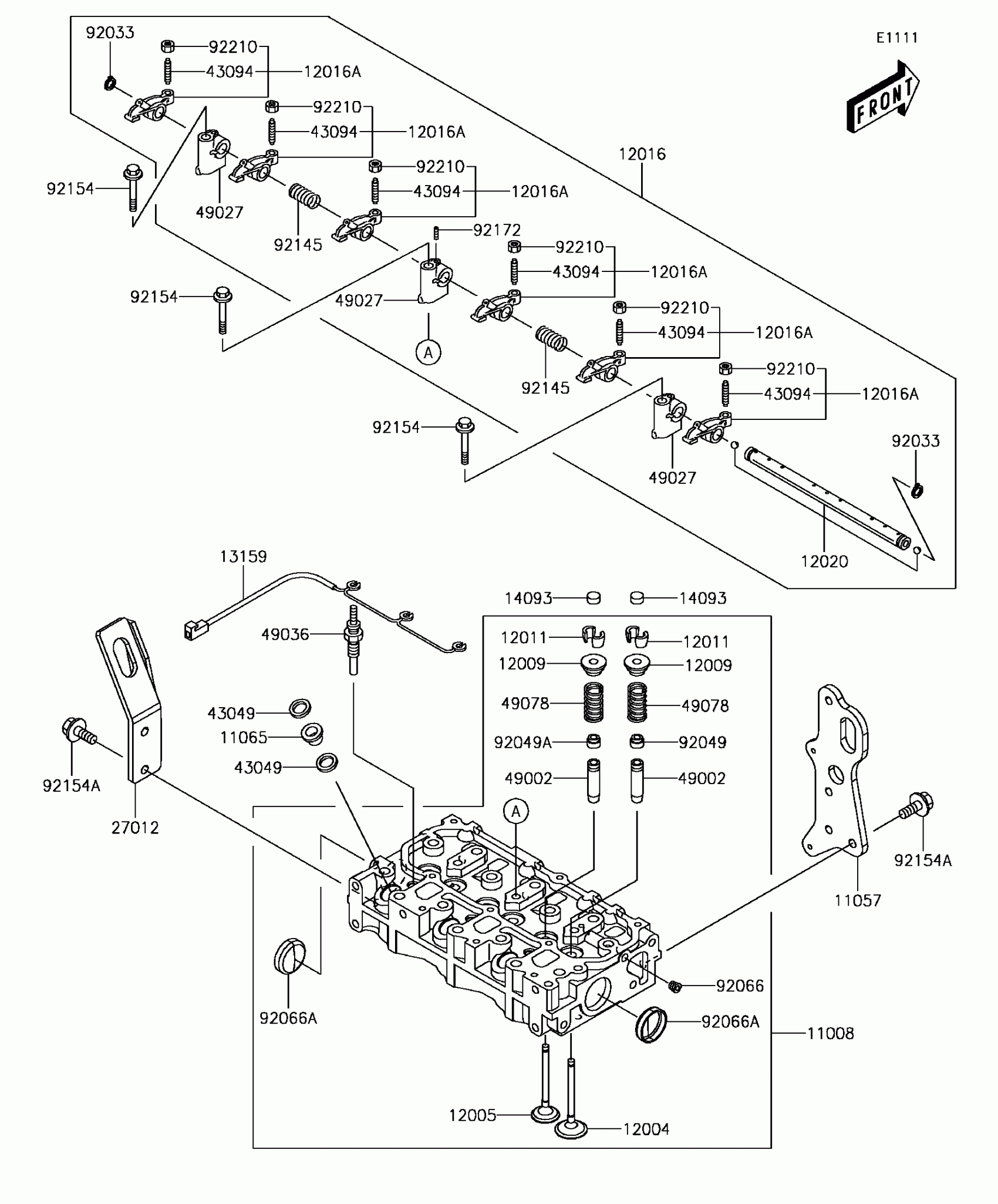

Kawasaki MULE PRO-DXT™ EPS DIESEL Cylinder Head Diagram

Description

Price

11008

HEAD-COMP-CYLINDER

11008-0875

$1,987.06

11057

BRACKET,FRAME

11057-1247

$93.58

11065

CAP,NOZZLE

11065-0942

$3.92

12004

VALVE-INTAKE

12004-0739

$58.84

12005

VALVE-EXHAUST

12005-0759

$50.85

12009

RETAINER-VALVE SPRING

12009-0029

$12.02

12011

COLLET

12011-0004

$10.75

12016

ARM-ROCKER

12016-0044

$419.13

12016A

ARM-ROCKER

12016-0045

$80.28

12020

SHAFT-ROCKER

12020-0018

$86.15

13159

CONNECTOR,PLUG-GLOW

13159-0019

$25.59

14093

COVER,VALVE

14093-0440

$5.99

27012

HOOK

27012-0819

$106.83

43049

PACKING,NOZZLE

43049-0037

$2.71

43094

ADJUSTER,VALVE

43094-0006

$10.93

49002

GUIDE-VALVE

49002-0032

$41.04

49027

HOLDER-ROCKER

49027-0001

$53.63

49036

PLUG-GLOW

49036-0002

Unavailable

49078

SPRING-ENGINE VALVE

49078-0731

$10.53

92033

RING-SNAP

92033-0773

$1.69

92049

SEAL-OIL,INTAKE

92049-0789

$8.66

92049A

SEAL-OIL,EXHAUST

92049-0790

$10.93

92066

PLUG

92066-0847

$7.42

92066A

PLUG

92066-0852

$7.42

92145

SPRING

92145-1711

$11.81

92154

BOLT,FLANGED,8X40

92154-1987

$2.37

92154A

BOLT,FLANGED,8X16

92154-2071

$1.71

92172

SCREW,5X16

92172-0984

$2.37

92210

NUT,8MM

92210-1468

$2.04
