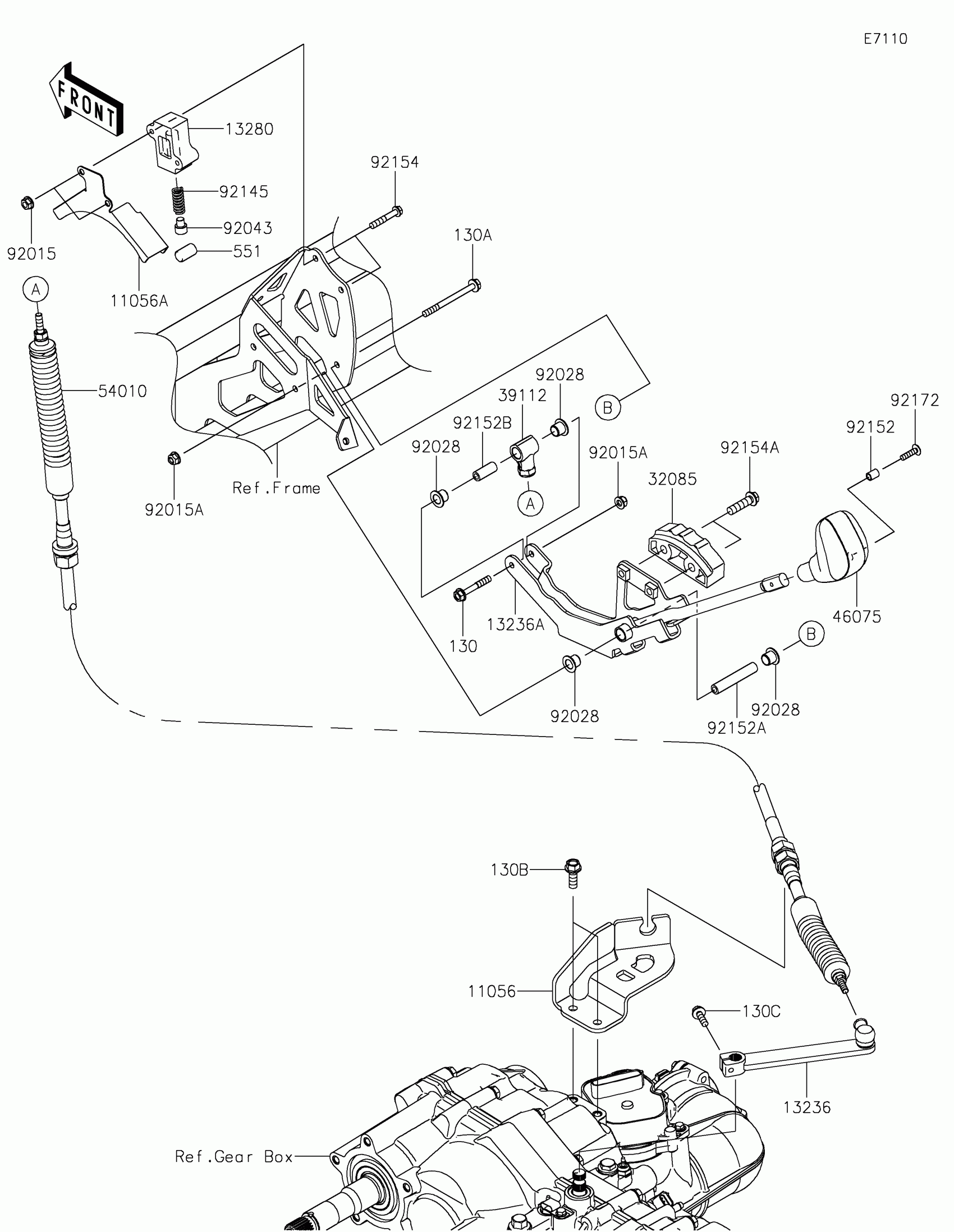

Kawasaki MULE PRO-DXT™ EPS Control Diagram
#
Description
Price
11056
BRACKET,T/M SIDE
11056-2946
$14.12
11056A
BRACKET,DUST COVER
11056-7274
$8.65
13236
LEVER-COMP,T/M SIDE
13236-0747
$50.03
13236A
LEVER-COMP,SHIFT
13236-0748
$83.04
13280
HOLDER
13280-0776
$33.24
32085
STOPPER
32085-0748
$6.80
39112
RODEND-TIE
39112-0020
$27.52
46075
GRIP
46075-0569
$22.85
54010
CABLE,SHIFT
54010-0601
$239.58
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92015A
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92028
BUSHING
92028-1507
$5.25
92043
PIN
92043-0790
$5.48
92145
SPRING
92145-1578
$4.87
92152
COLLAR,5.6X8X10.5
92152-1545
$2.67
92152A
COLLAR,6X10X56.5
92152-1823
$8.08
92152B
COLLAR,6X10X25
92152-1854
$5.69
92154
BOLT,FLANGED,6X35
92154-1544
$0.95
92154A
BOLT,FLANGED,8X30
92154-1907
$2.49
92172
SCREW,5X20
92172-2081
$0.73
130
BOLT-FLANGED,6X40
130BA0640
$1.20
130A
BOLT-FLANGED,6X70
130BA0670
$4.60
130B
BOLT-FLANGED,8X22
130BA0822
$3.21
130C
BOLT-FLANGED,6X20
130CA0620
$1.70
551
PIN-DOWEL,12X20
551R1220
$7.59
