2016 Kawasaki Mule PRO-DXT™ Diesel Starter Motor Diagram

← All diagrams

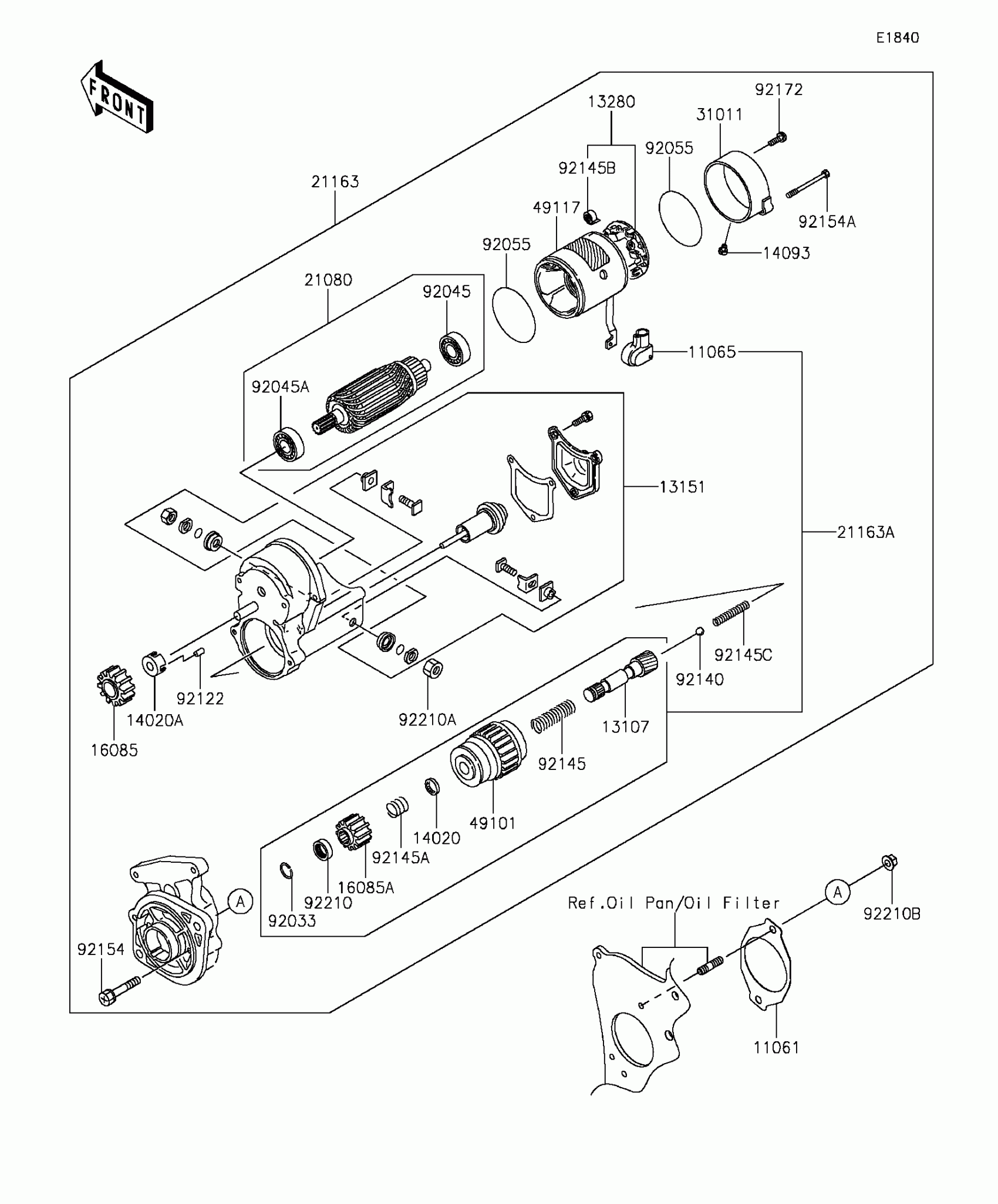

Find the part on the Starter Motor diagram for your 2016 Kawasaki Mule PRO-DXT™ Diesel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Mule PRO-DXT™ Diesel Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,STARTER

11061-1195

1
Out of stock

11065

CAP

11065-0939

1
Out of stock

13107

SHAFT

13107-0841

1
Out of stock

13151

SWITCH-COMP,MAGNET

13151-0573

1
Out of stock

13280

HOLDER

13280-0863

1

$65.93

In stock

14020

RETAINER

14020-0020

1

$4.93

In stock

14020A

RETAINER

14020-0021

1

$13.63

In stock

14093

COVER

14093-0449

1
Out of stock

16085

GEAR,PINION

16085-0649

1
Out of stock

16085A

GEAR,PINION

16085-0652

1
Out of stock

21080

ARMATURE

21080-0010

1
Out of stock

21163

STARTER-ELECTRIC

21163-0752

1
Out of stock

21163A

STARTER-ELECTRIC

21163-0753

1
Out of stock

31011

FRAME

31011-0029

1
Out of stock

49101

CLUTCH,STARTER

49101-0002

1
Out of stock

49117

YOKE

49117-0593

1
Out of stock

92033

RING-SNAP

92033-0775

1
Out of stock

92045

BEARING-BALL

92045-0808

1
Out of stock

92045A

BEARING-BALL

92045-0809

1
Out of stock

92055

RING-O

92055-0863

1
Out of stock

92122

ROLLER

92122-0048

1
Out of stock

92140

BALL

92140-0017

1
Out of stock

92145

SPRING

92145-1713

1
Out of stock

92145A

SPRING

92145-1714

1
Out of stock

92145B

SPRING

92145-1715

1
Out of stock

92145C

SPRING

92145-1716

1
Out of stock

92154

BOLT

92154-2072

1
Out of stock

92154A

BOLT

92154-2073

1
Out of stock

92172

SCREW

92172-0988

1
Out of stock

92210

NUT

92210-1470

1
Out of stock

92210A

NUT

92210-1472

1
Out of stock

92210B

NUT,8MM

92210-1473

1
Out of stock
