Oil Pan/Oil Filter

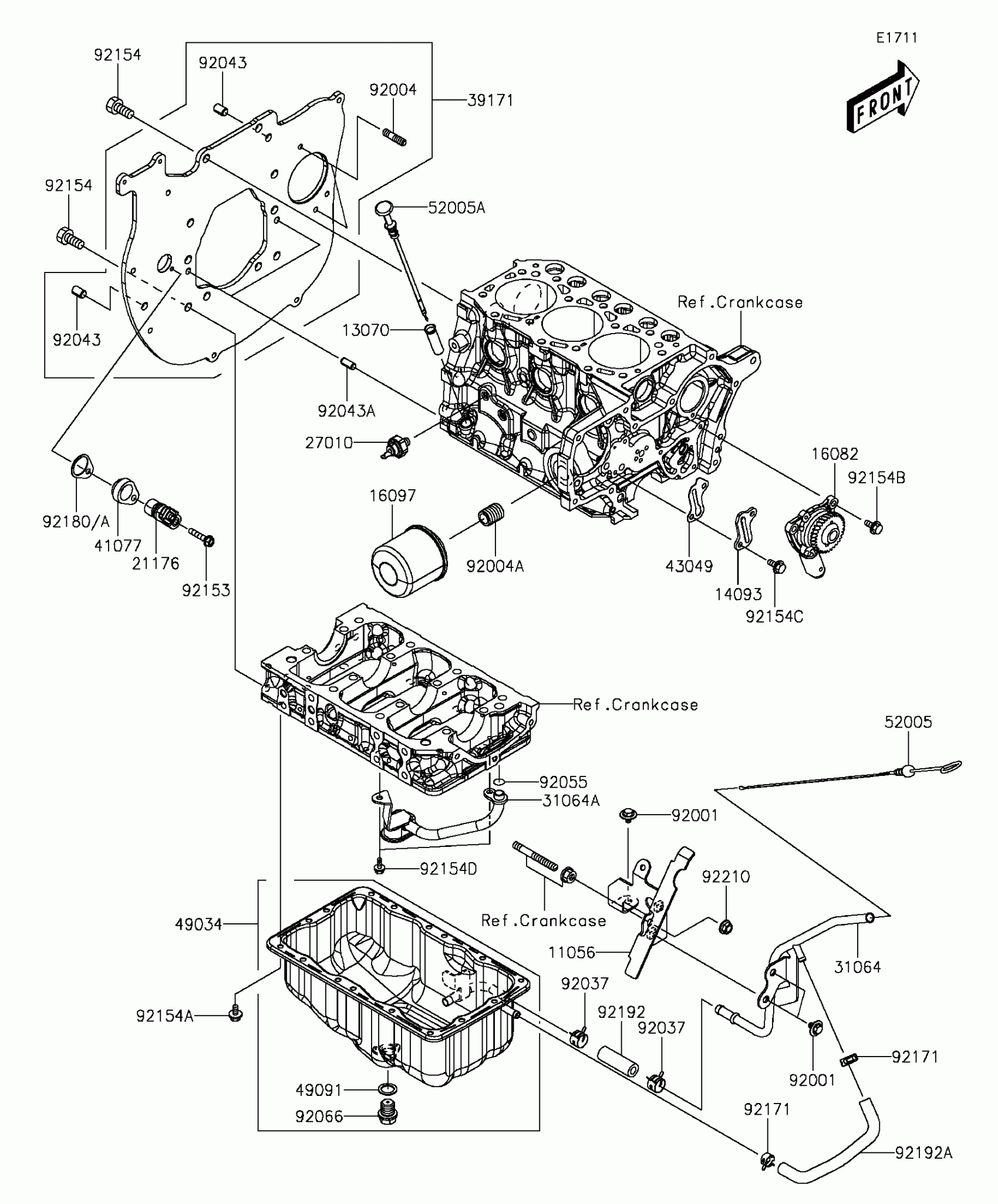

Kawasaki MULE PRO-DXT™ DIESEL Oil Pan/Oil Filter Diagram
#
11056
BRACKET,LEVEL GAUGE PIPE
11056-7693
$9.12
13070
GUIDE,OIL LEVEL GAUGE
13070-0830
$55.96
14093
COVER
14093-0445
$11.19
16082
PUMP-ASSY-OIL
16082-0763
$341.55
16097
FILTER-ASSY-OIL
16097-0012
$16.35
21176
SENSOR,ROTATION
21176-0767
$65.52
27010
SWITCH,OIL PRESSURE
27010-0838
$33.70
31064
PIPE-COMP,LEVEL GAUGE
31064-0677
$31.68
31064A
PIPE-COMP,OIL
31064-0679
$42.14
39171
FLANGE-COMP
39171-0003
$376.42
41077
ADAPTER,ROTATION SENSOR
41077-0722
$6.52
43049
PACKING
43049-0039
$3.32
49034
PAN-OIL
49034-0566
$587.48
49091
WASHER-SEAL
49091-0006
$4.15
52005
GAUGE,OIL LEVEL
52005-0754
$49.34
52005A
GAUGE,OIL LEVEL
52005-0759
$54.65
92001
BOLT,FLANGED,6X10
92001-1034
$10.28
92004
STUD,8X25
92004-0745
$4.74
92004A
STUD
92004-0749
$19.09
92037
CLAMP
92037-1678
$10.16
92043
PIN,10X16
92043-0885
$11.69
92043A
PIN,8X16
92043-0886
$3.35
92055
RING-O
92055-0857
$3.35
92066
PLUG,DRAIN
92066-0851
$7.54
92153
BOLT,FLANGED,6X30
92153-1425
$2.15
92154
BOLT,10X20
92154-1985
$2.92
92154A
BOLT,TORX,6X10
92154-1986
$2.92
92154B
BOLT,FLANGED,6X14
92154-1997
$2.49
92154C
BOLT,FLANGED,6X12
92154-1998
$2.03
92154D
BOLT,FLANGED,6X10
92154-2068
$2.03
92171
CLAMP,CLIP,12.5MM
92171-0372
$3.39
92180
SHIM,T=1.0
92180-0968
Unavailable
92180A
SHIM,T=0.5
92180-0969
Unavailable
92192
TUBE,9X17.5X52
92192-1482
$17.98
92192A
TUBE,PIPE COMP-OIL PAN
92192-1501
$39.77
92210
NUT,FLANGED,8MM
92210-0555
$2.03
