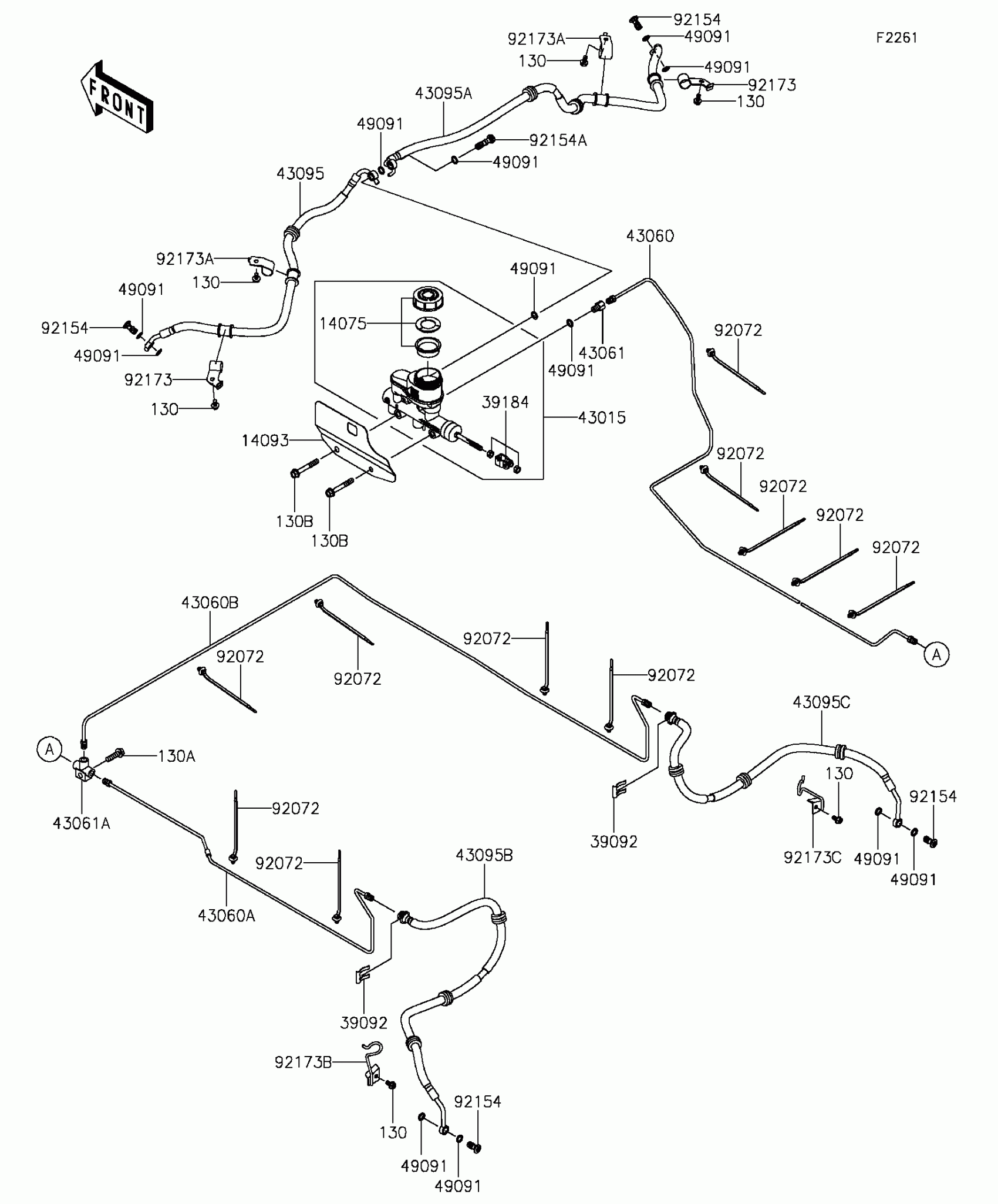

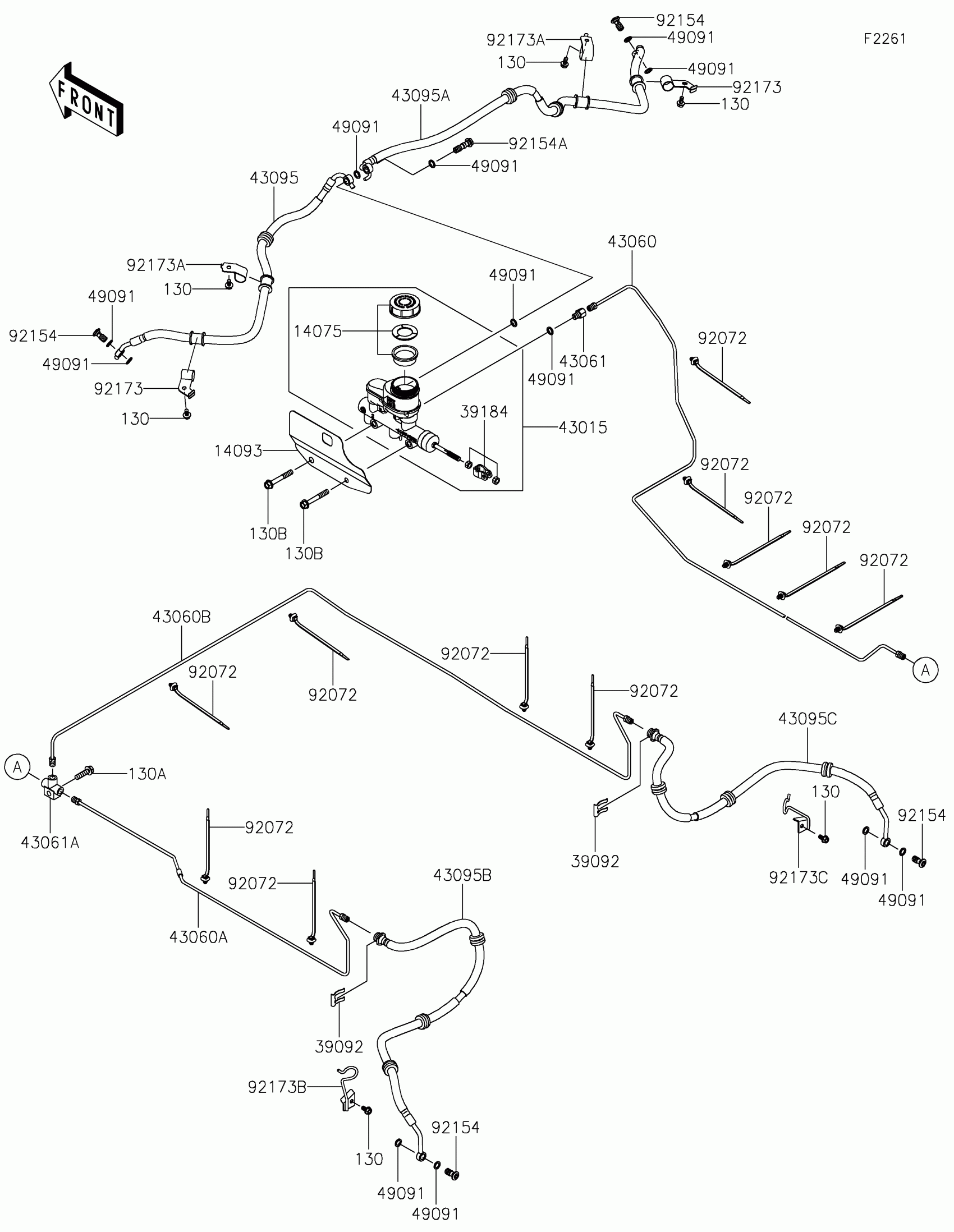

Find the part on the Master Cylinder diagram for your 2016 Kawasaki Mule PRO-DXT™ Diesel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Mule PRO-DXT™ Diesel Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,8X30

130BA0830

1

$1.68

In stock

130B

BOLT-FLANGED,8X55

130BA0855

1

$1.90

In stock

14075

CAP-ASSY

14075-0038

1

$42.90

In stock

14093

COVER,M/C BODY

14093-0044

1
Out of stock

39092

PIN-HAIR

39092-1052

1

$6.33

In stock

39184

BRACKET-ASSY

39184-0031

1

$21.27

In stock

43015

CYLINDER-ASSY-MASTER

43015-0595

1
Out of stock

43060

PIPE-BRAKE

43060-0317

1
Out of stock

43060A

PIPE-BRAKE,LH

43060-0318

1
Out of stock

43060B

PIPE-BRAKE,RH

43060-0319

1
Out of stock

43061

JOINT-BRAKE,M/C

43061-0302

1
Out of stock

43061A

JOINT-BRAKE

43061-1063

1
Out of stock

43095

HOSE-BRAKE,661MM

43095-0807

1
Out of stock

43095A

HOSE-BRAKE,1011MM

43095-0808

1
Out of stock

43095B

HOSE-BRAKE,847MM

43095-0809

1
Out of stock

43095C

HOSE-BRAKE,767MM

43095-0810

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92154

BOLT,HEXALOBULAR,10X21

92154-1328

1
Out of stock

92154A

BOLT,OIL,10X34.5

92154-1398

1
Out of stock

92173

CLAMP

92173-1215

1
Out of stock

92173A

CLAMP

92173-1216

1
Out of stock

92173B

CLAMP

92173-1217

1
Out of stock

92173C

CLAMP

92173-1218

1
Out of stock
