2016 Kawasaki Mule PRO-DXT™ Diesel Front Brake Diagram

← All diagrams

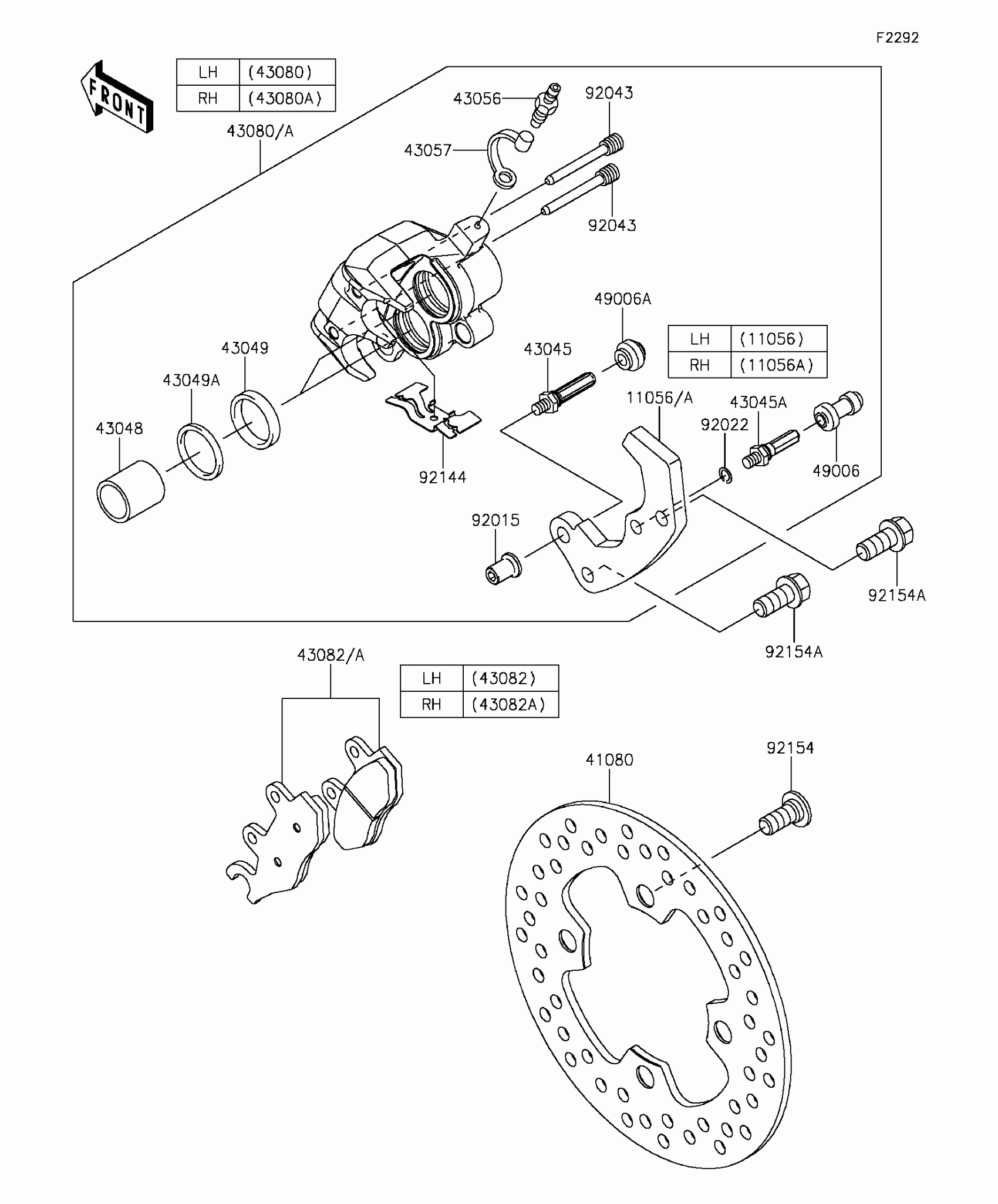

Find the part on the Front Brake diagram for your 2016 Kawasaki Mule PRO-DXT™ Diesel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Mule PRO-DXT™ Diesel Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,LH

11056-3807

1
Out of stock

11056A

BRACKET,RH

11056-3829

1
Out of stock

41080

DISC

41080-0608

1
Out of stock

43045

SHAFT-CALIPER

43045-0011

1
Out of stock

43045A

SHAFT-CALIPER

43045-1010

1
Out of stock

43048

PISTON-CALIPER

43048-1068

1
Out of stock

43049

PACKING,PISTON SEAL

43049-1060

1
Out of stock

43049A

PACKING,PISTON SEAL

43049-1061

1
Out of stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43080

CALIPER-SUB-ASSY,FR,LH

43080-0138

1
Out of stock

43080A

CALIPER-SUB-ASSY,FR,RH

43080-0139

1
Out of stock

43082

PAD-ASSY-BRAKE,FR,LH

43082-0138

1
Out of stock

43082A

PAD-ASSY-BRAKE,FR,RH

43082-0146

1
Out of stock

49006

BOOT,CALIPER

49006-1088

1
Out of stock

49006A

BOOT,CALIPER

49006-1242

1
Out of stock

92015

NUT

92015-1740

1
Out of stock

92022

WASHER,WAVE

92022-1373

1
Out of stock

92043

PIN,HANGER

92043-1416

1
Out of stock

92144

SPRING,PAD

92144-1847

1
Out of stock

92154

BOLT,SOCKET,10X23

92154-0713

1
Out of stock

92154A

BOLT,FLANGED,10X22

92154-1327

1
Out of stock
