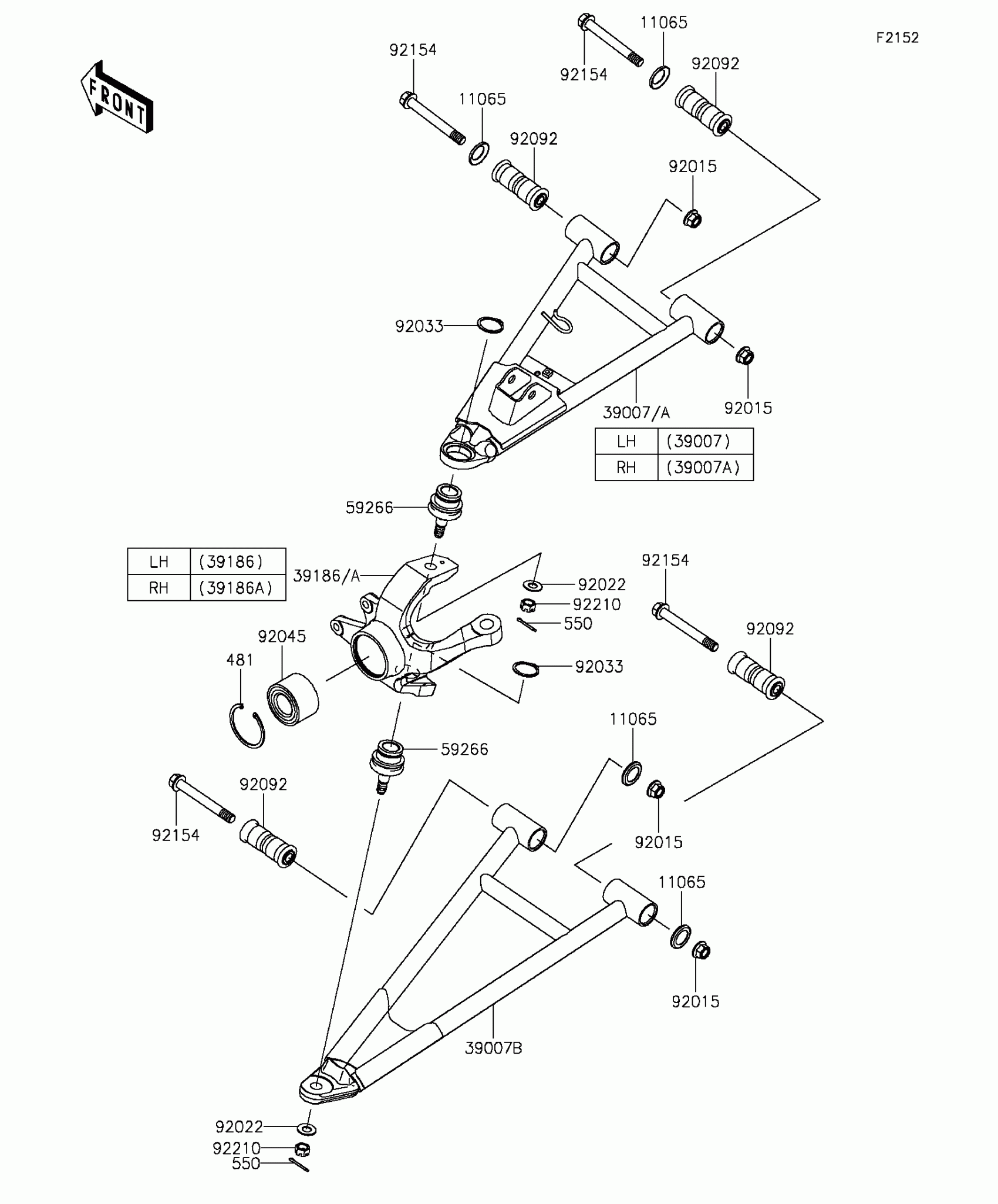

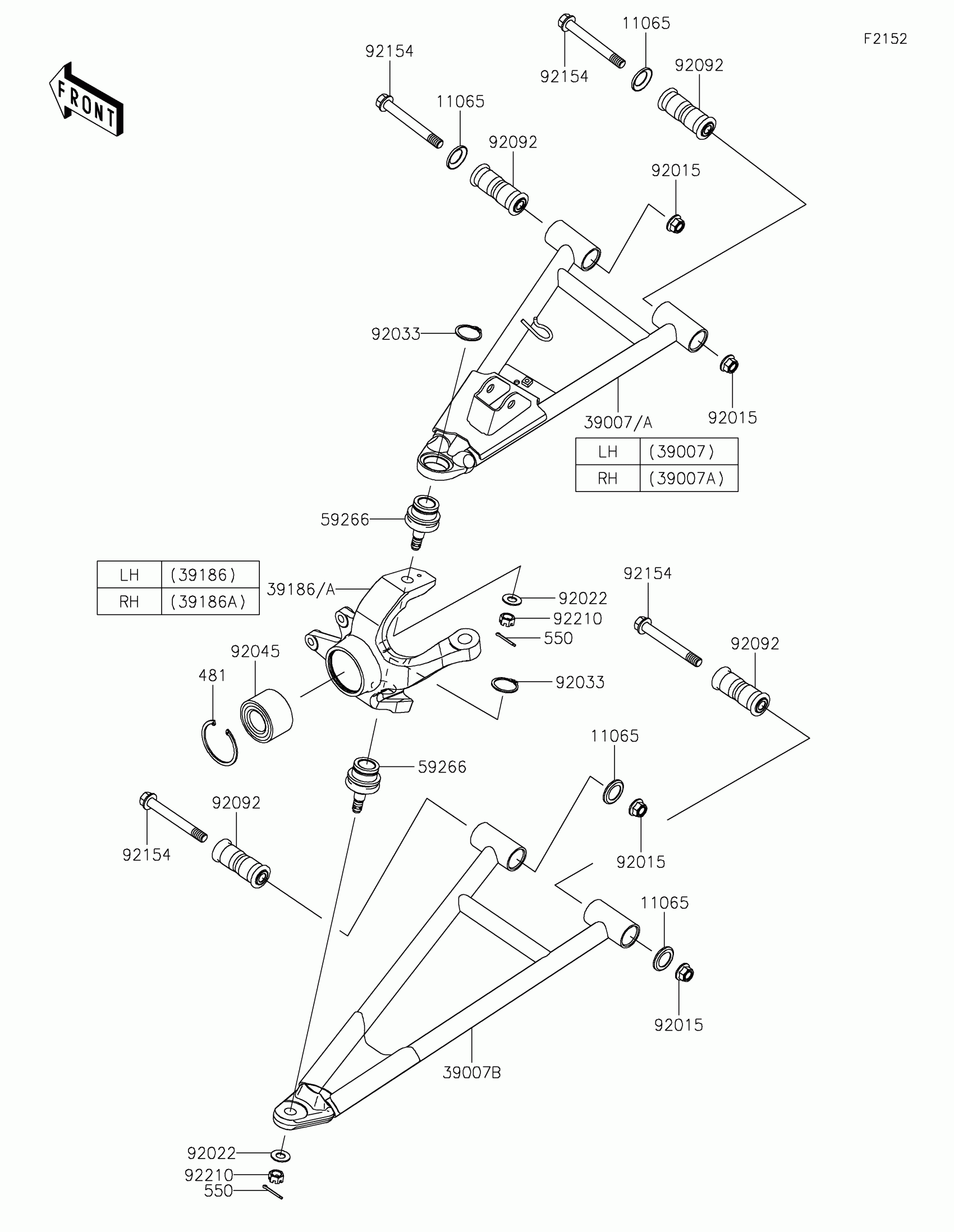

Find the part on the Front Suspension diagram for your 2016 Kawasaki Mule PRO-DXT™ Diesel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Mule PRO-DXT™ Diesel Front Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,ARM

11065-0838

1
Out of stock

39007

ARM-SUSP,FR,UPP,LH

39007-0377

1

$131.82

In stock

39007A

ARM-SUSP,FR,UPP,RH

39007-0378

1

$131.82

In stock

39007B

1

$126.27

In stock

39186

KNUCKLE,FR,LH

39186-0319

1

$180.74

In stock

39186A

KNUCKLE,FR,RH

39186-0320

1

$180.74

In stock

481

CIRCLIP-TYPE-C

481J6000

1
Out of stock

550

PIN-COTTER,3.0X25

550AA3025

1
Out of stock

59266

JOINT-BALL

59266-0711

1
Out of stock

92015

NUT,LOCK,FLANGED,12MM

92015-1433

1
Out of stock

92022

WASHER

92022-1831

1
Out of stock

92033

RING-SNAP,C-TYPE,32MM

92033-1262

1
Out of stock

92045

BEARING-BALL,30X60X37

92045-0762

1
Out of stock

92092

BUSHING-RUBBER,12X20X78

92092-0028

1
Out of stock

92154

BOLT,FLANGED,12X100

92154-1318

1
Out of stock

92210

NUT,CASTLE,12MM

92210-0395

1
Out of stock
