- MULE PRO-DXT™ DIESEL
Drive Converter

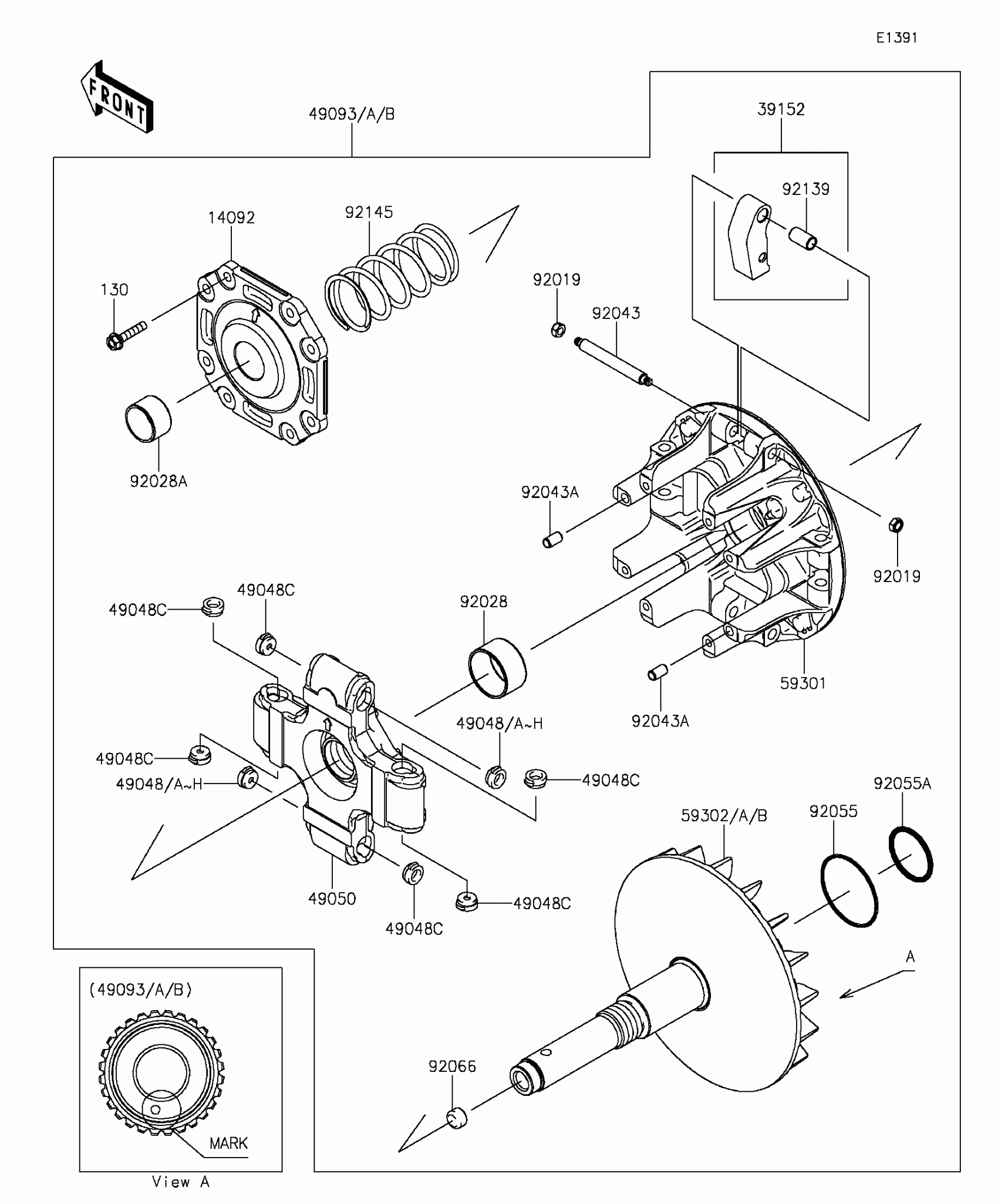

Kawasaki MULE PRO-DXT™ DIESEL Drive Converter Diagram
#
Description
Price
130
BOLT-FLANGED,6X30
130CA0630
$2.49
14092
COVER
14092-1201
$49.63
39152
WEIGHT-RAMP
39152-0043
$52.47
49048
SHOE,T=7.2
49048-1087
Unavailable
49048A
SHOE,T=7.3
49048-1088
Unavailable
49048B
SHOE,T=7.4
49048-1089
Unavailable
49048C
SHOE,T=7.5
49048-1090
$14.82
49048D
SHOE,T=7.6
49048-1091
Unavailable
49048E
SHOE,T=7.7
49048-1092
Unavailable
49048F
SHOE,T=7.8
49048-1093
Unavailable
49048G
SHOE,T=7.9
49048-1094
Unavailable
49048H
SHOE,T=8.0
49048-1095
Unavailable
49050
SPIDER
49050-1083
$205.71
49093
CONVERTER-DRIVE,B MARK,WHITE
49093-0050
$848.15
49093A
CONVERTER-DRIVE,A MARK,BLUE
49093-0069
$848.15
49093B
CONVERTER-DRIVE,C MARK,YELLOW
49093-0070
$848.15
59301
SHEAVE-MOVABLE
59301-0025
$237.27
59302
SHEAVE-COMP,B MARK,WHITE
59302-0092
$337.78
59302A
SHEAVE-COMP,A MARK,BLUE
59302-0093
$337.78
59302B
SHEAVE-COMP,C MARK,YELLOW
59302-0094
$337.78
92019
NUT,LOCK,6MM
92019-008
$4.26
92028
BUSHING
92028-1975
$12.80
92028A
BUSHING
92028-1980
$7.90
92043
PIN
92043-0809
$16.04
92043A
PIN,6.2X8X14
92043-1263
$0.43
92055
RING-O,59.5X2.4
92055-0753
$4.10
92055A
RING-O,3.5X39.7
92055-0789
$3.92
92066
PLUG
92066-0784
$5.60
92139
BUSHING,9X11X19.75
92139-1103
$7.53
92145
SPRING
92145-1670
$25.07
