2018 Kawasaki Mule PRO-DXT™ Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 2018 Kawasaki Mule PRO-DXT™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

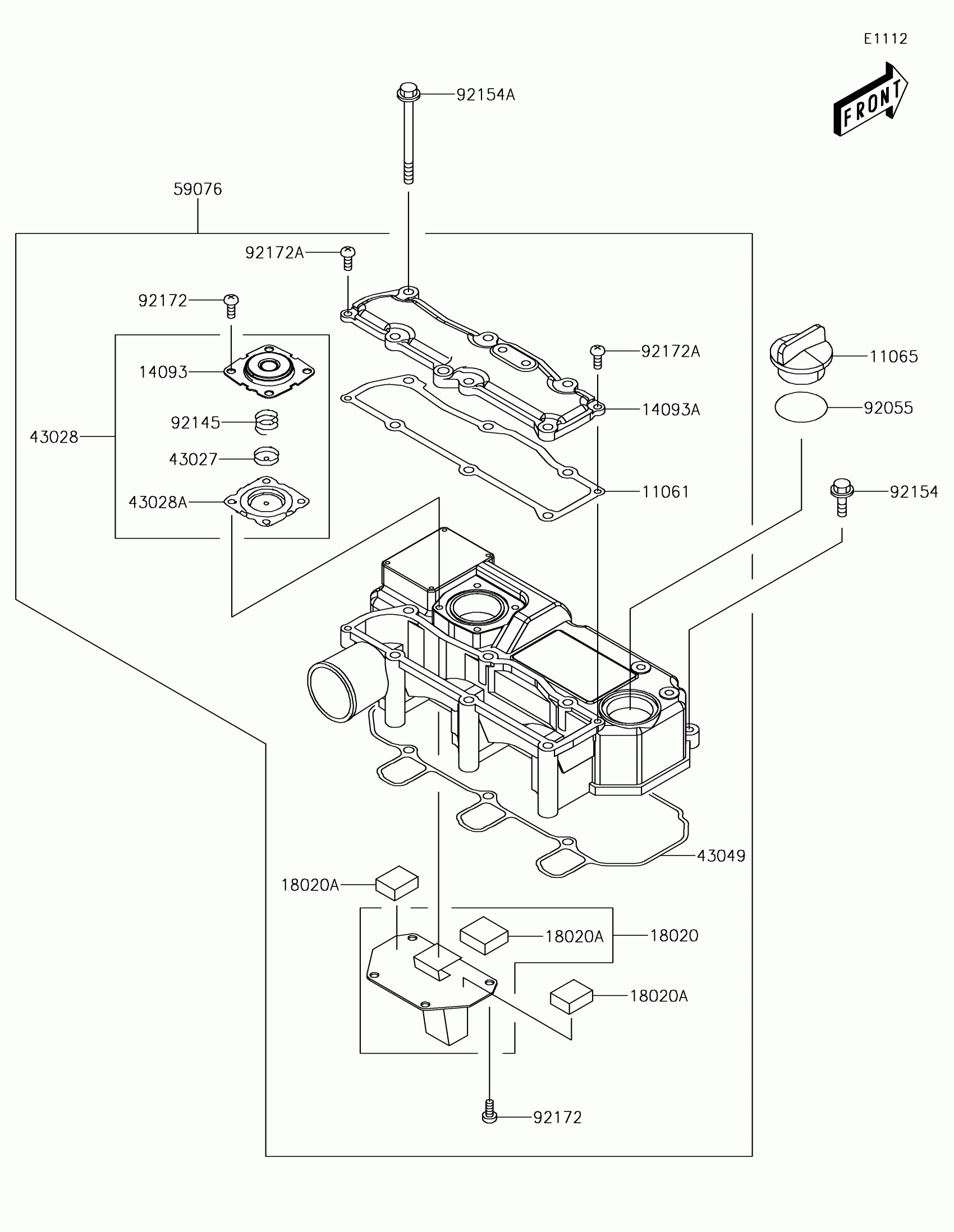

2018 Kawasaki Mule PRO-DXT™ Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,INTAKE MANIFOLD COVER

11061-1193

1
Out of stock

11065

CAP,FILLER

11065-0943

1
Out of stock

14093

COVER,DIAPHRAGM

14093-0442

1
Out of stock

14093A

COVER,INTAKE MANIFOLD

14093-0444

1
Out of stock

18020

BAFFLE,PLATE

18020-0723

1
Out of stock

18020A

BAFFLE,BREATHER

18020-0724

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-0009

1
Out of stock

43028

DIAPHRAGM,ASSY

43028-0019

1
Out of stock

43028A

DIAPHRAGM

43028-0020

1
Out of stock

43049

PACKING,INTAKE MANIFOLD

43049-0038

1
Out of stock

59076

MANIFOLD-INTAKE

59076-0014

1
Out of stock

92055

RING-O

92055-0856

1
Out of stock

92145

SPRING

92145-1712

1
Out of stock

92154

BOLT,FLANGED,6X20

92154-1988

1
Out of stock

92154A

BOLT,FLANGED,6X75

92154-1989

1
Out of stock

92172

SCREW,5X10

92172-0985

1
Out of stock

92172A

SCREW,5X16

92172-0986

1
Out of stock
