Chassis Electrical Equipment

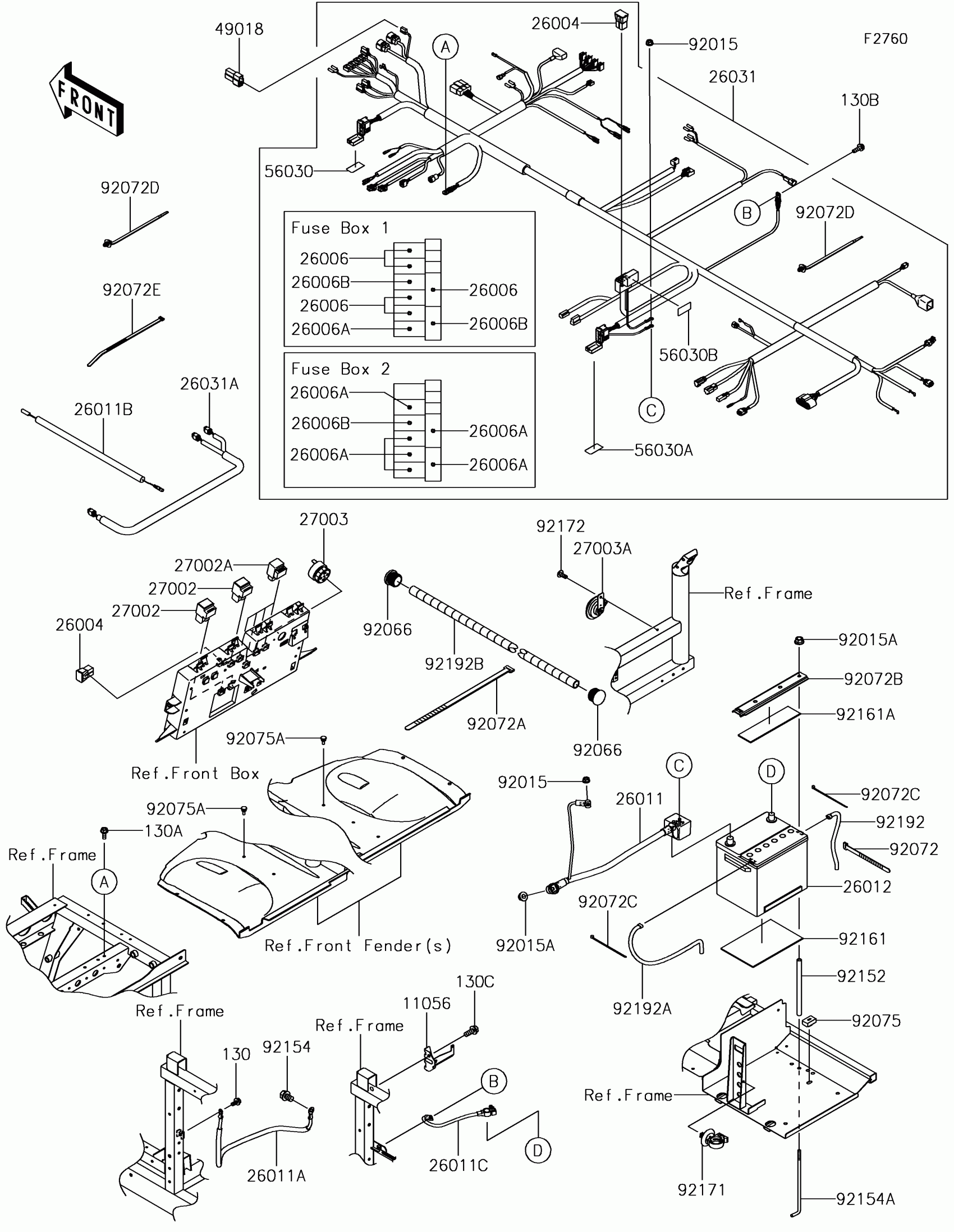

Kawasaki MULE PRO-DXT™ Chassis Electrical Equipment Diagram
#
11056
BRACKET,FUSE
11056-7478
$7.92
26004
FUSE-ASSY,60A
26004-0024
$4.82
26006
FUSE,MINI BLADE,10A,RED
26006-0009
Unavailable
26006A
FUSE,MINI BLADE,30A,GREEN
26006-1080
$4.87
26006B
FUSE,MINI BLADE,20A,YELLOW
26006-3704
$5.24
26011
WIRE-LEAD,BATTERY(+)
26011-0904
$62.07
26011A
WIRE-LEAD,ENGINE GND
26011-0905
$19.60
26011B
WIRE-LEAD,OIL PRESSURE SW.
26011-0906
$7.07
26011C
WIRE-LEAD,BATTERY(-)
26011-0912
$44.80
26012
BATTERY,WET,(26R)
26012-7501
Unavailable
26031
HARNESS,MAIN
26031-2151
$731.70
26031A
HARNESS,SUB
26031-2226
$84.03
27002
RELAY-ASSY
27002-0012
$42.21
27002A
RELAY-ASSY
27002-1062
$45.39
27003
HORN,PARKING BUZZER
27003-0116
$28.64
27003A
HORN
27003-1330
$64.25
49018
DIODE
49018-0006
$13.43
56030
LABEL,FUSE BOX1
56030-0917
$2.94
56030A
LABEL,FUSE BOX2
56030-0919
$2.94
56030B
LABEL,FUSE BOX3
56030-0920
$2.94
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92015A
NUT,FLANGED,8MM
92015-1406
$4.45
92066
PLUG
92066-0908
$0.98
92072
BAND,L=123
92072-030
$5.00
92072A
BAND,L=218
92072-032
$5.00
92072B
BAND
92072-0767
$9.90
92072C
BAND,92X2.4
92072-0791
$0.42
92072D
BAND,OS170-FT7(BLACK)
92072-1414
$3.74
92072E
BAND,L=292.1
92072-3509
Unavailable
92075
DAMPER
92075-099
$5.52
92075A
DAMPER,6X10X15
92075-1808
$1.39
92152
COLLAR,9.4X12.7X190.8
92152-1852
$8.18
92154
BOLT,FLANGED,10X14
92154-1383
$1.71
92154A
BOLT,BATTERY
92154-1650
$11.00
92161
DAMPER
92161-0578
$4.25
92161A
DAMPER
92161-1753
$7.61
92171
CLAMP
92171-0453
$3.54
92172
SCREW,TAPPING,6X16
92172-0739
$0.85
92192
TUBE,BREATHER,7X10X240
92192-1646
$3.90
92192A
TUBE,BREATHER,7X10X450
92192-1694
$8.13
130
BOLT-FLANGED,6X12
130BA0612
$1.72
130A
BOLT-FLANGED,6X16
130BA0616
$1.20
130B
BOLT-FLANGED,6X18
130BA0618
$1.54
130C
BOLT-FLANGED,8X20
130BA0820
$4.14
92192B
TUBE,CONVOLUTED
92192-1814
$29.07
