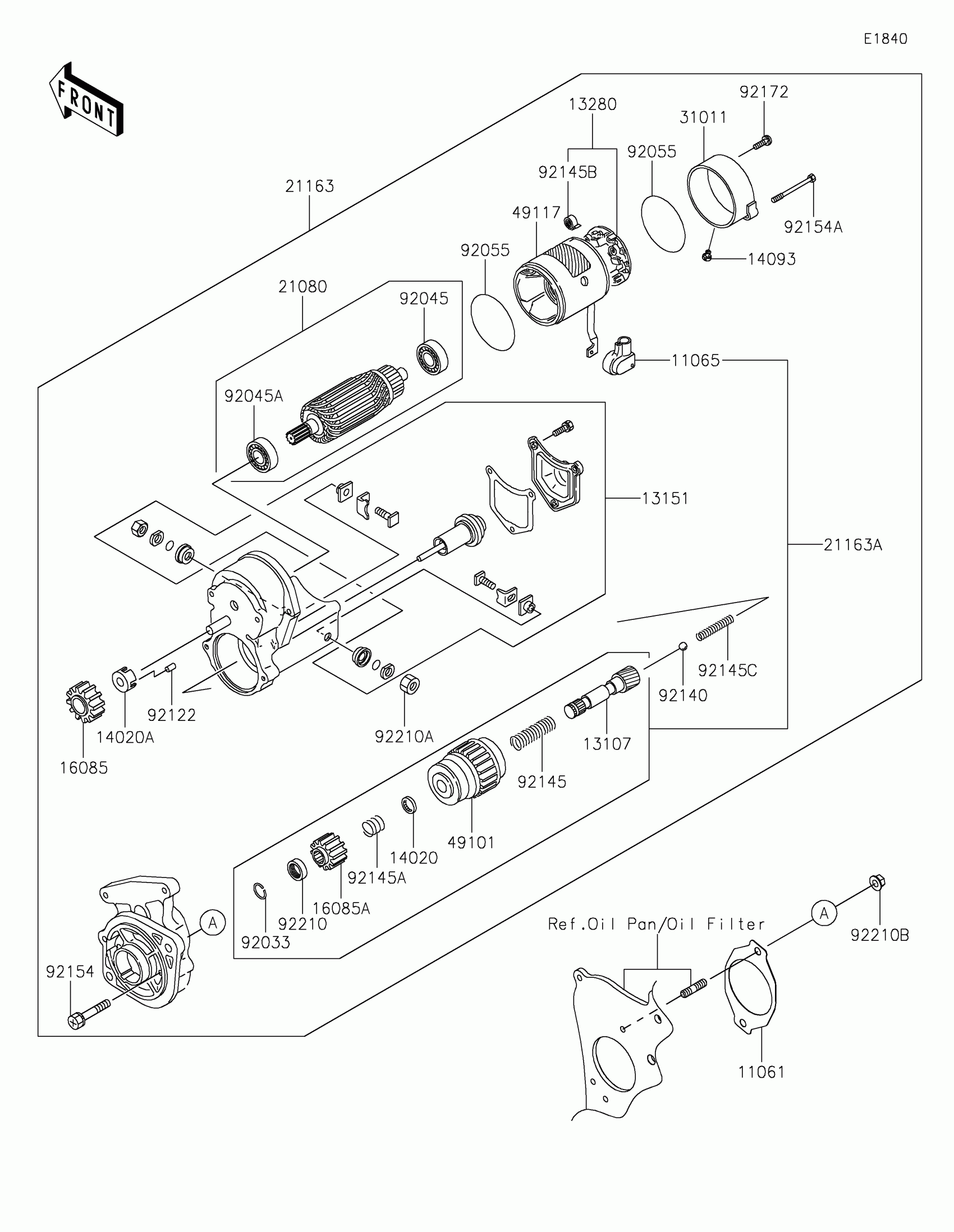

Kawasaki MULE PRO-DX Starter Motor Diagram

#

Description
Price

11061

GASKET,STARTER

11061-1195

$22.99

11065

CAP

11065-0939

$9.40

13107

SHAFT

13107-0841

$129.22

13151

SWITCH-COMP,MAGNET

13151-0573

$813.14

13280

HOLDER

13280-0863

$64.70

14020

RETAINER

14020-0020

$5.61

14020A

RETAINER

14020-0021

$14.34

14093

COVER

14093-0449

$15.26

16085

GEAR,PINION

16085-0649

$201.60

16085A

GEAR,PINION

16085-0652

$36.05

21080

ARMATURE

21080-0010

$500.36

21163

STARTER-ELECTRIC

21163-0752

$1,215.94

21163A

STARTER-ELECTRIC

21163-0753

$452.11

31011

FRAME

31011-0029

$39.46

49101

CLUTCH,STARTER

49101-0002

$261.84

49117

YOKE

49117-0593

$132.17

92033

RING-SNAP

92033-0775

$10.15

92045

BEARING-BALL

92045-0808

$27.52

92045A

BEARING-BALL

92045-0809

$31.82

92055

RING-O

92055-0863

$6.83

92122

ROLLER

92122-0048

$2.92

92140

BALL

92140-0017

$2.47

92145

SPRING

92145-1713

$15.26

92145A

SPRING

92145-1714

$2.89

92145B

SPRING

92145-1715

$3.91

92145C

SPRING

92145-1716

$7.54

92154

BOLT

92154-2072

$7.61

92154A

BOLT

92154-2073

$8.36

92172

SCREW

92172-0988

$6.47

92210

NUT

92210-1470

$4.78

92210A

NUT

92210-1472

$4.41

92210B

NUT,8MM

92210-1473

$1.71
