Frame Fittings(Rear)

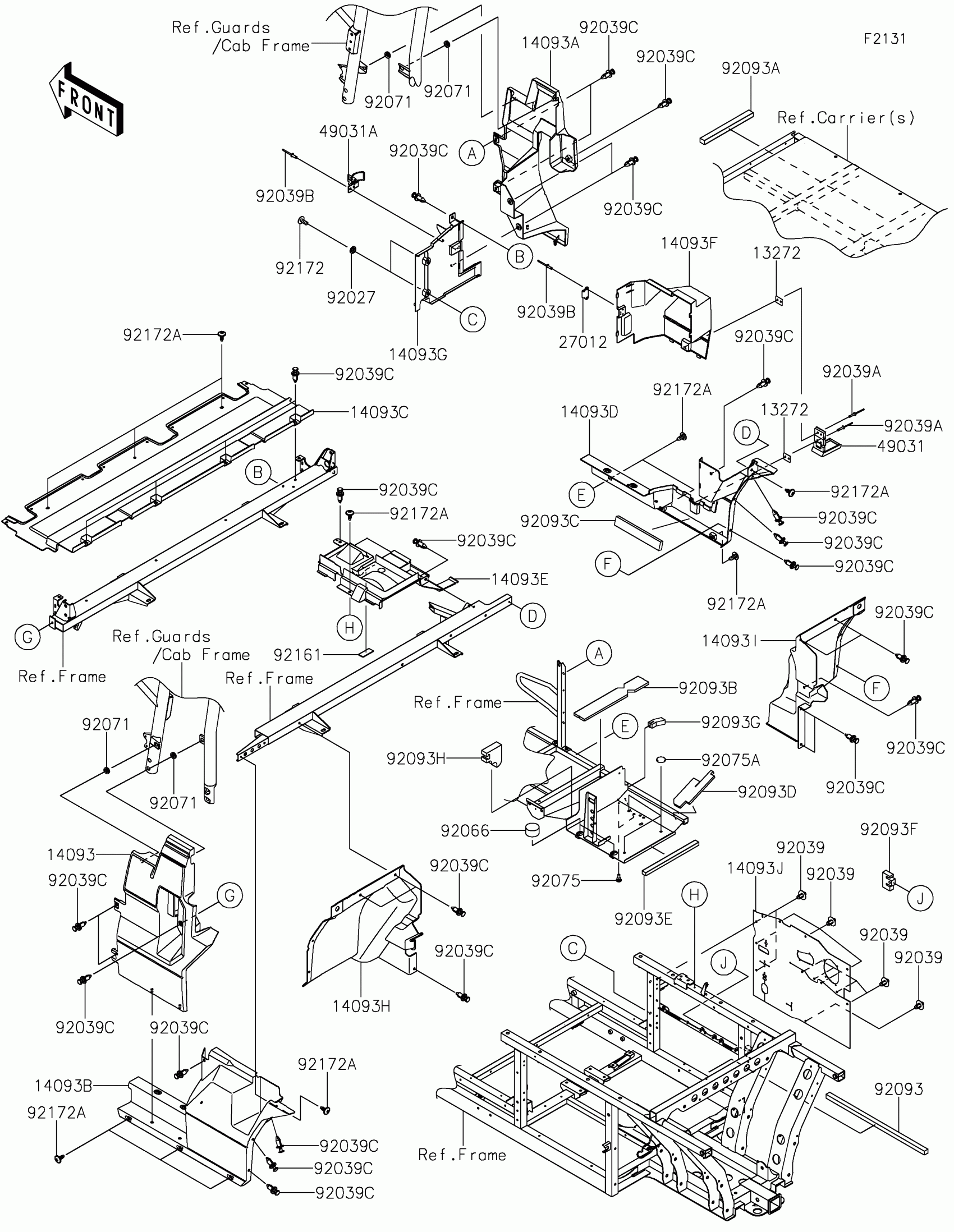

Kawasaki MULE PRO-DX Frame Fittings(Rear) Diagram
#
13272
PLATE,LATCH
13272-1828
$1.02
14093
COVER,SIDE,LH,FR,F.BLACK
14093-0167-6Z
$36.16
14093A
COVER,SIDE,RH,FR,F.BLACK
14093-0168-6Z
$36.16
14093B
COVER,SIDE,LH,RR
14093-0169
$87.05
14093C
COVER,SEAT,BACK
14093-0171
$54.54
14093D
COVER,SIDE,RH,RR
14093-0173
$54.21
14093E
COVER,DUST
14093-0296
$19.69
14093F
COVER,SIDE,RH,A/C MAINT.
14093-0371
$51.71
14093G
COVER,SIDE,RH,A/C,FR
14093-0372
$23.98
14093H
COVER,RR,FLOOR,MUD,LH
14093-0388
$75.19
14093I
COVER,RR,FLOOR,MUD,RH
14093-0389
$75.19
14093J
COVER,MAINTENANCE ROOM,RUBBER
14093-0634
$37.66
27012
HOOK,STRIKER
27012-0806
$2.95
49031
LATCH,A/C
49031-0007
$5.04
49031A
LATCH,TOGGLE
49031-0015
$7.82
92027
COLLAR,L=4.6
92027-1168
$5.00
92039
RIVET
92039-0086
$5.54
92039A
RIVET,3.2X13.4
92039-0739
$2.49
92039B
RIVET
92039-0747
$2.49
92039C
RIVET
92039-0776
$1.19
92066
PLUG,36X20
92066-0812
$2.04
92071
GROMMET
92071-056
$4.26
92075
DAMPER,6X10X15
92075-1808
$1.39
92075A
DAMPER,RUBBER
92075-261
$4.31
92093
SEAL,DUST,20X20X565
92093-0631
$14.51
92093A
SEAL,DUST,20X25X280
92093-0633
$7.75
92093B
SEAL,DUST,61X368X10
92093-0643
$16.09
92093C
SEAL,DUST,39X255X15
92093-0644
$10.62
92093D
SEAL,DUST,69X207X10
92093-0645
$11.40
92093E
SEAL,DUST,15X305X20
92093-0646
$7.53
92093F
SEAL,52X72X20
92093-0651
$5.64
92093G
SEAL,21.5X60X20
92093-0652
$3.23
92093H
SEAL,99X85X30
92093-0715
$19.80
92161
DAMPER,25X60X3.175
92161-1827
$2.45
92172
SCREW,6X16
92172-0236
$0.85
92172A
SCREW,6X16
92172-0711
$3.02
