Transmission

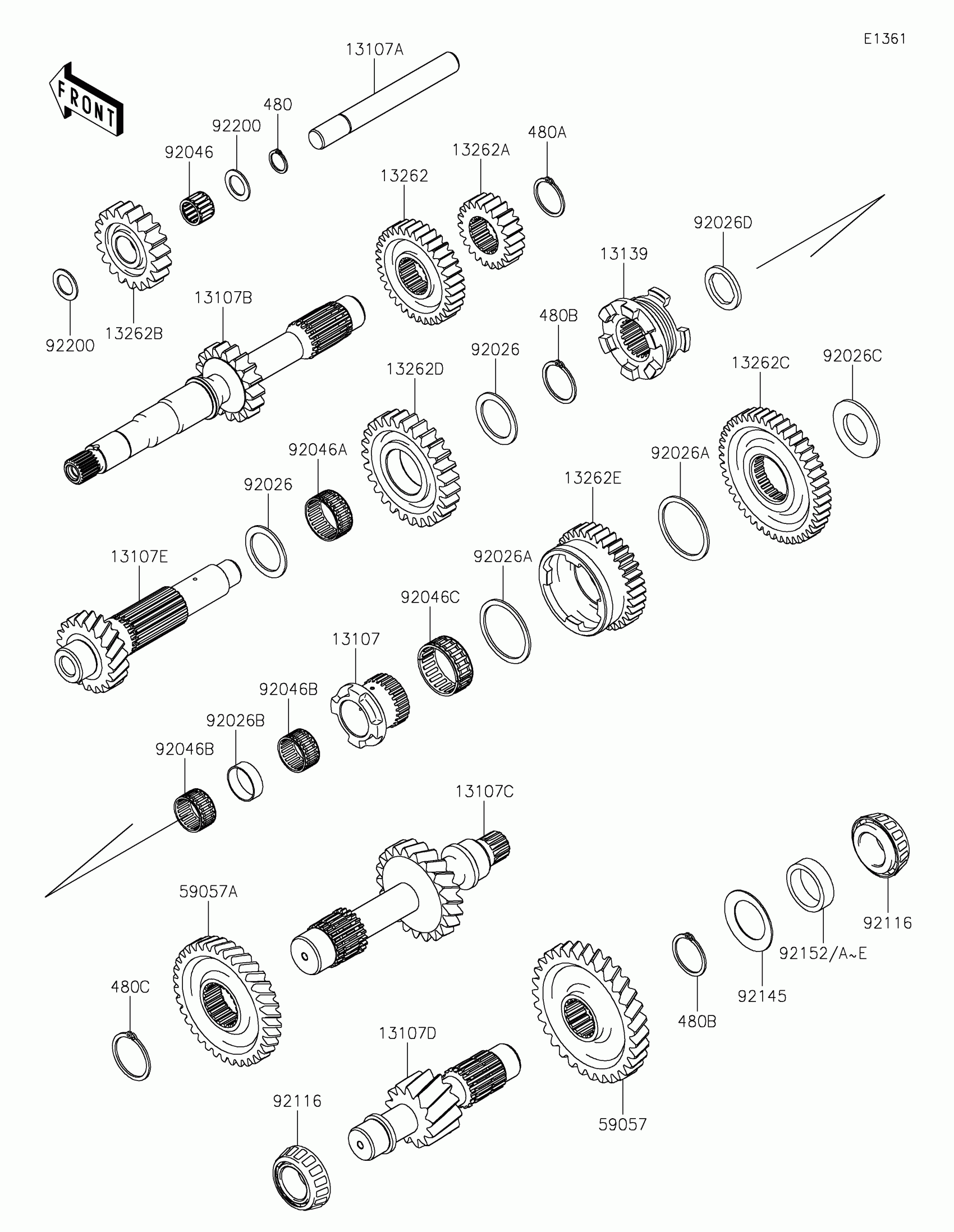

Kawasaki MULE PRO-DX™ EPS Transmission Diagram
#
13107
SHAFT
13107-0779
$117.05
13107A
SHAFT,IDLE REV
13107-0780
$33.06
13107B
SHAFT,INPUT,17T
13107-0782
$358.87
13107C
SHAFT,3RD,21T
13107-0784
$269.77
13107D
SHAFT,4TH,13T
13107-0785
$261.00
13107E
SHAFT,COUNTER,19T
13107-0829
$235.77
13139
SHIFTER
13139-0022
$107.76
13262
GEAR,INPUT HI,33T
13262-1085
$92.35
13262A
GEAR,INPUT LOW,22T
13262-1086
$61.28
13262B
GEAR,IDLE REV,19T
13262-1087
$71.62
13262C
GEAR,COUNTER LOW,45T
13262-1088
$104.72
13262D
GEAR,COUNTER REV,27T
13262-1089
$107.90
13262E
GEAR,COUNTER HI,34T
13262-1090
$155.45
59057
GEAR-HELICAL,31T
59057-0013
$117.65
59057A
GEAR-HELICAL,3RD,36T
59057-0022
$116.82
92026
SPACER,35.2X47X2
92026-0765
$11.23
92026A
SPACER,49.2X58X2
92026-0766
$13.34
92026B
SPACER,29.4X31.8X10
92026-0767
$4.18
92026C
SPACER
92026-0768
$18.95
92026D
SPACER,28.2X39X3.6
92026-0795
$18.15
92046
BEARING-NEEDLE,FMJ-182417
92046-0040
$14.05
92046A
BEARING-NEEDLE,35X40X17
92046-0611
$17.11
92046B
BEARING-NEEDLE,KT283317C3
92046-0621
$14.62
92046C
BEARING-NEEDLE,HIGH GEAR
92046-1276
$36.04
92116
BEARING-ROLLER
92116-0014
$20.63
92145
SPRING
92145-1575
$6.68
92152
COLLAR,L=12.1
92152-1815
Unavailable
92152A
COLLAR,L=12.3
92152-1816
Unavailable
92152B
COLLAR,L=12.5
92152-1817
Unavailable
92152C
COLLAR,L=12.7
92152-1818
Unavailable
92152D
COLLAR,L=12.9
92152-1819
Unavailable
92152E
COLLAR,L=13.1
92152-1820
Unavailable
92200
WASHER,18.2X28X1.5
92200-0716
$3.02
480
CIRCLIP-TYPE-C,18MM
480J1800
$1.28
480A
CIRCLIP-TYPE-C,32MM
480J3200
$1.77
480B
CIRCLIP
480J3500
$2.75
480C
CIRCLIP
480J4000
$6.57
