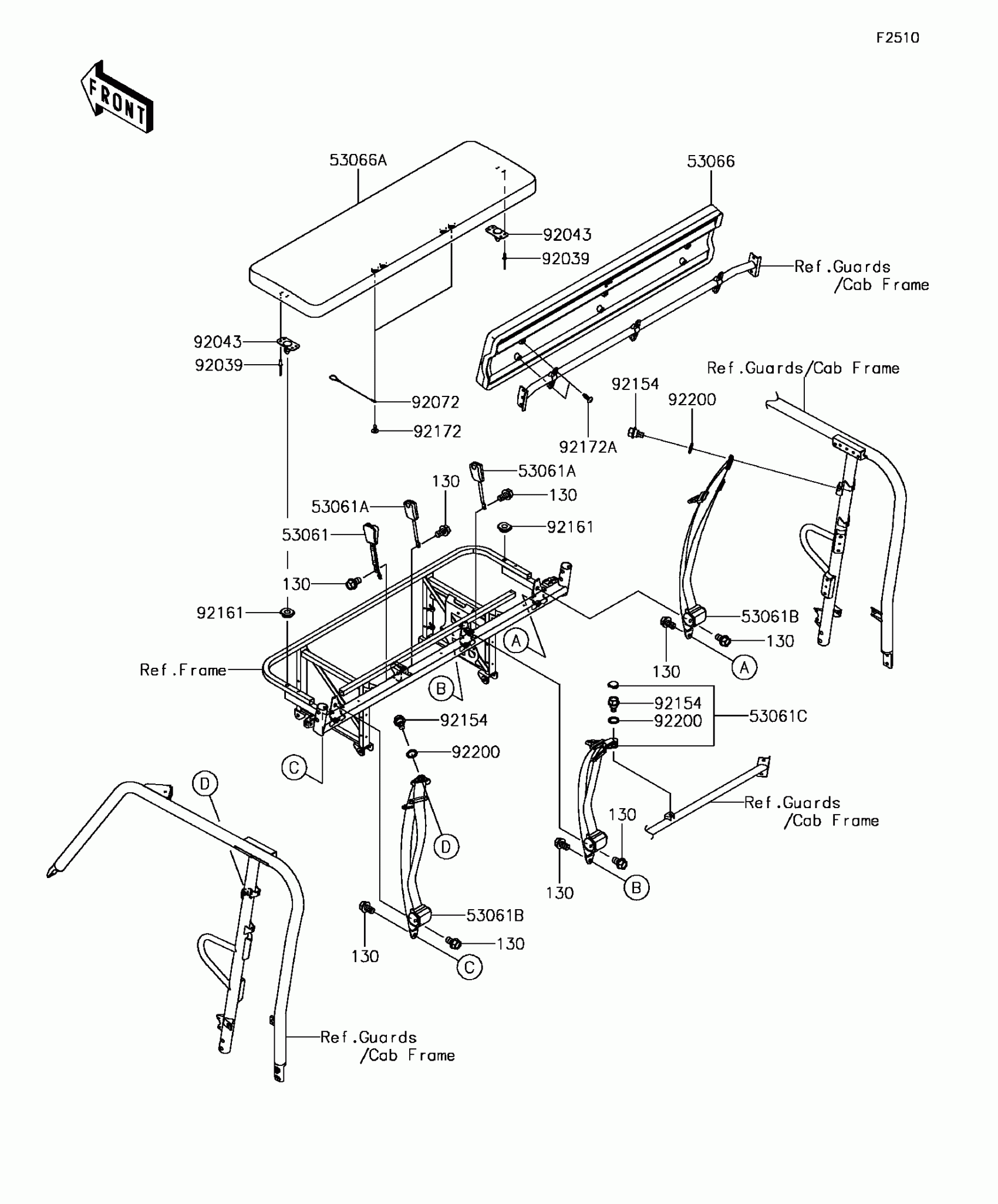

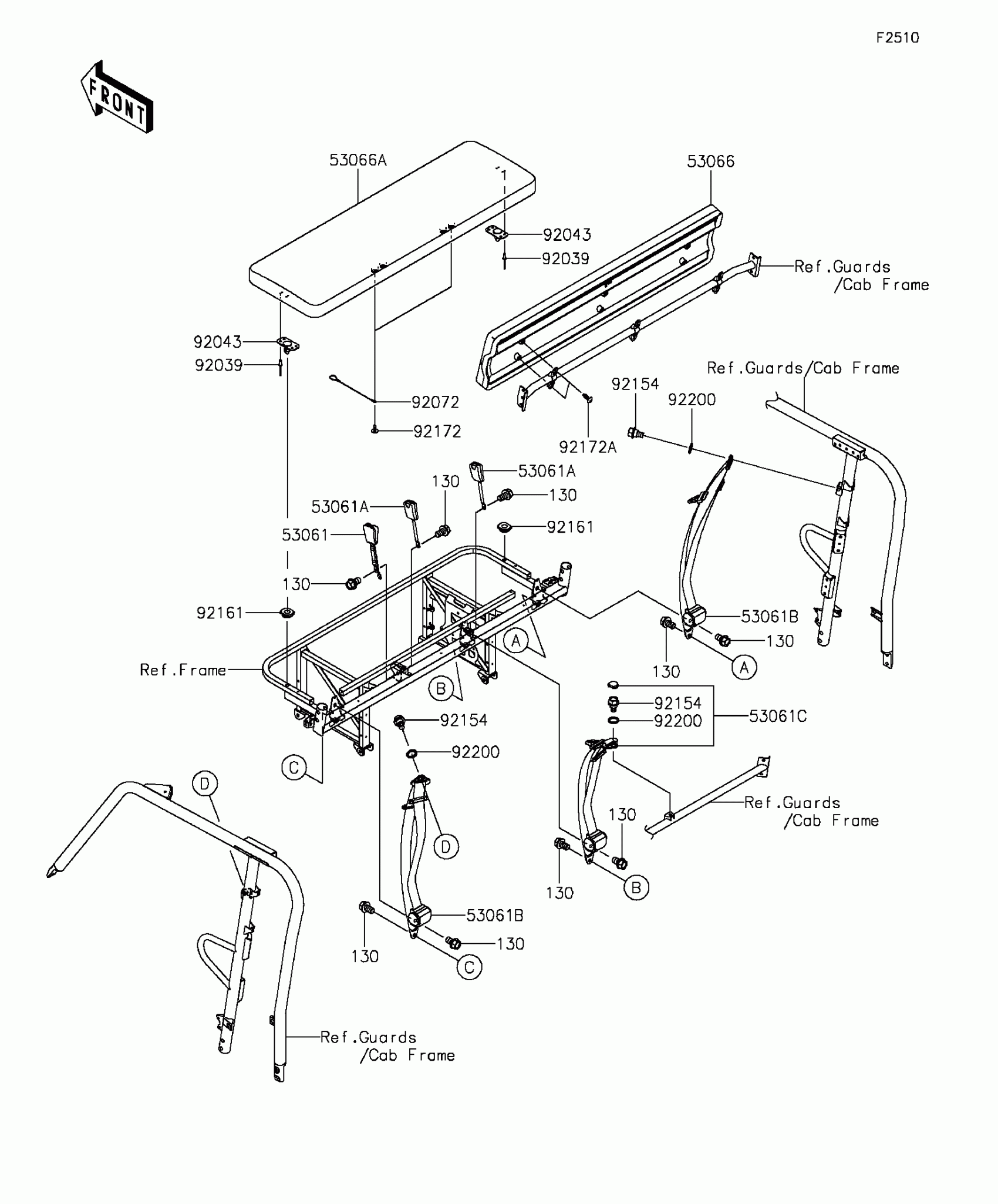

Kawasaki MULE PRO-DX™ EPS LE DIESEL Seat Diagram

Description

Price

130

BOLT-FLANGED,12X20

130BA1220

$3.74

53061

BELT-SEAT,BUCKLE,SW.

53061-0038

$55.82

53061A

BELT-SEAT,BUCKLE

53061-0039

$31.80

53061B

BELT-SEAT,FR,LH&RH

53061-0045

$165.31

53061C

BELT-SEAT,MIDDLE

53061-0046

$165.31

53066

SEAT-ASSY,BACK,BLACK

53066-0426-MA

$275.04

53066A

SEAT-ASSY,BOTTOM,BLACK

53066-0495-MA

$472.94

92039

RIVET

92039-0747

$2.49

92043

92043-0859

$1.91

92072

BAND

92072-0769

$3.89

92154

BOLT,FLANGED,10X19.5

92154-1959

$6.52

92161

DAMPER,10.5X30X8.2

92161-1784

$0.88

92172

SCREW,6X16

92172-0284

$1.34

92172A

SCREW,TAPPING,6X20

92172-0488

$3.02

92200

WASHER,16X22X2

92200-1798

$1.34
