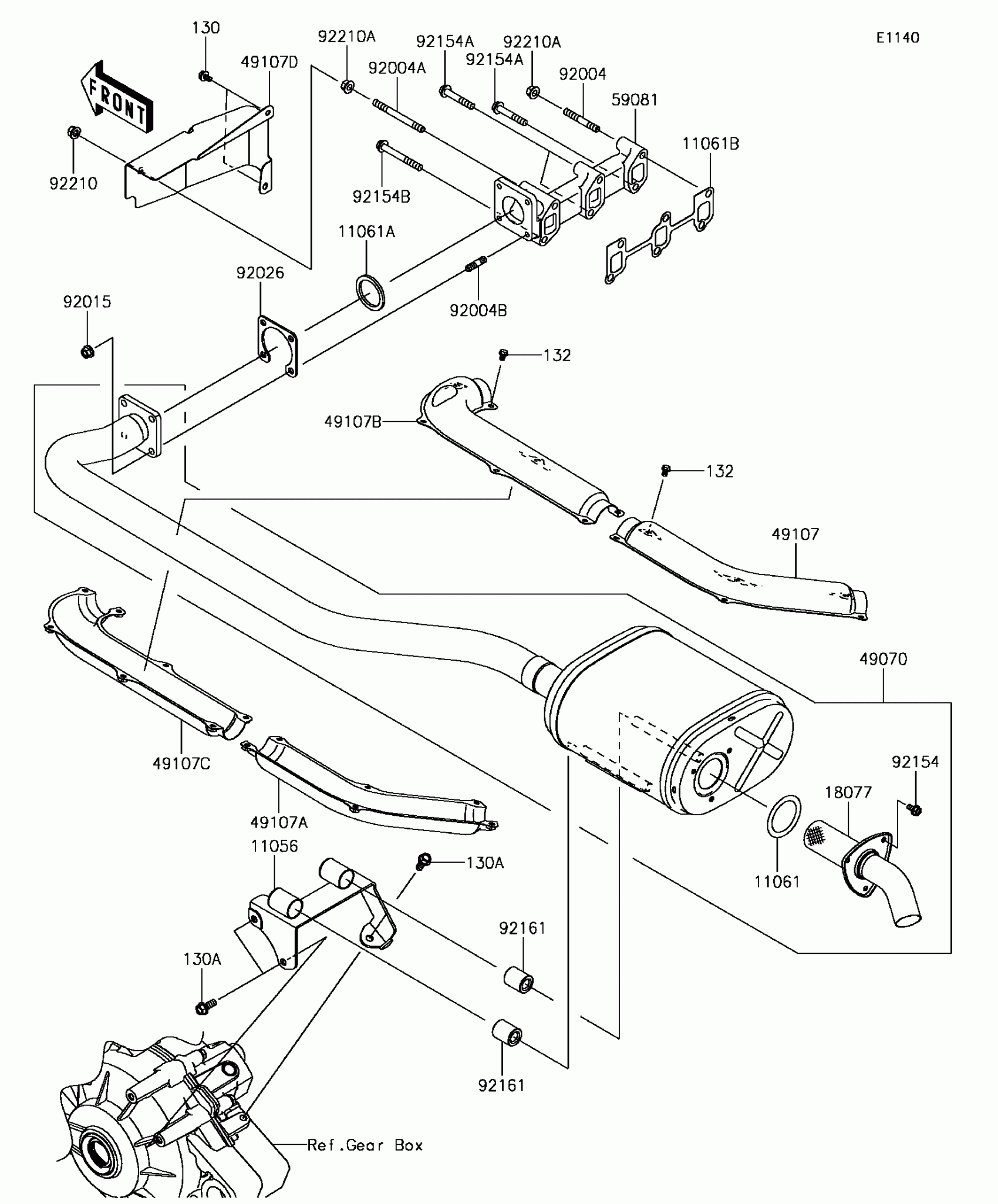

Kawasaki MULE PRO-DX™ EPS LE DIESEL Muffler(s) Diagram
#
Description
Price
11056
BRACKET,MUFFLER MOUNT
11056-7806
$30.76
11061
GASKET,EXHAUST PIPE
11061-0013
$15.45
11061A
GASKET,EXHAUST HOLDER
11061-0989
$8.03
11061B
GASKET,EXHAUST MANIFOLD
11061-1194
$15.26
130
BOLT-FLANGED,6X10
130BA0610
$1.20
130A
BOLT-FLANGED,8X20
130BA0820
$4.14
132
BOLT-FLANGED-SMALL,6X8
132BD0608
$3.40
18077
ARRESTER-SPARK
18077-0040
$168.58
49070
MUFFLER-COMP
49070-0804
$456.01
49107
COVER-EXHAUST PIPE,RR,UPP
49107-0771
$21.22
49107A
COVER-EXHAUST PIPE,RR,LWR
49107-0772
$28.39
49107B
COVER-EXHAUST PIPE,FR,UPP
49107-0773
$25.72
49107C
COVER-EXHAUST PIPE,FR,LWR
49107-0774
$29.62
49107D
COVER-EXHAUST PIPE
49107-0786
$36.59
59081
MANIFOLD-EXHAUST
59081-0295
$339.10
92004
STUD,8X50
92004-0746
$5.10
92004A
STUD,8X80
92004-0747
$4.74
92004B
STUD,8X22
92004-0748
$3.95
92015
NUT,8MM
92015-1402
$4.69
92026
SPACER
92026-0817
$13.32
92154
BOLT,FLANGED,6X12
92154-0852
$1.19
92154A
BOLT,FLANGED,8X50
92154-1990
$6.47
92154B
BOLT,FLANGED,8X71
92154-1991
$9.49
92161
DAMPER
92161-0961
$24.27
92210
NUT,8MM
92210-1456
$1.71
92210A
NUT,8MM
92210-1473
$1.71
